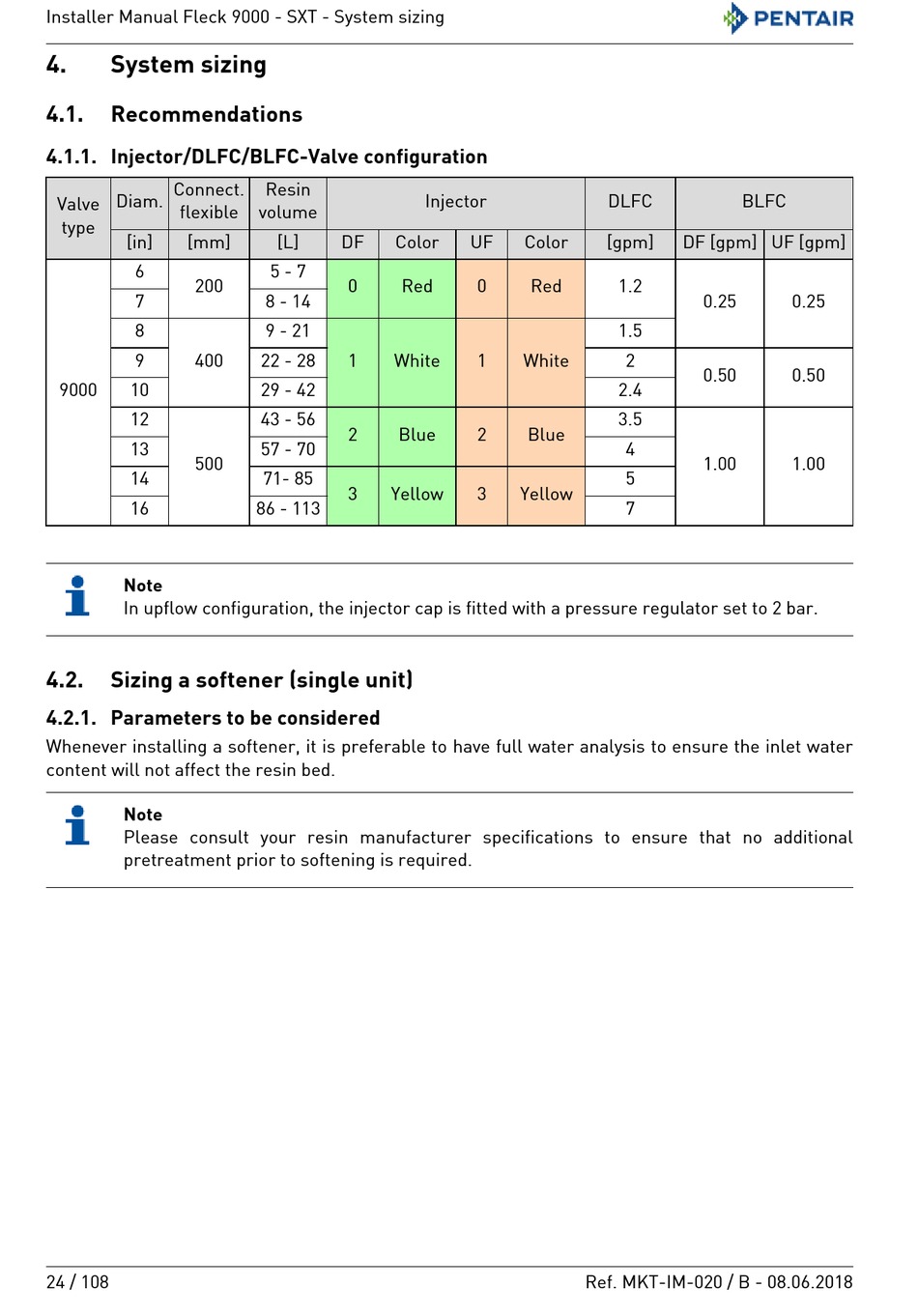

Installer Manual Fleck 9000 - SXT - System sizing
4.
System sizing
4.1.
Recommendations
4.1.1. Injector/DLFC/BLFC-Valve configuration
Connect.
Diam.
Valve
flexible
type
[in]
[mm]
6
200
7
8
9
400
9000
10
12
13
500
14
16
Note
In upflow configuration, the injector cap is fitted with a pressure regulator set to 2 bar.
4.2.
Sizing a softener (single unit)
4.2.1. Parameters to be considered
Whenever installing a softener, it is preferable to have full water analysis to ensure the inlet water
content will not affect the resin bed.
Note
Please consult your resin manufacturer specifications to ensure that no additional
pretreatment prior to softening is required.
24 / 108
Resin
Injector
volume
[L]
DF
Color
5 - 7
0
Red
8 - 14
9 - 21
22 - 28
1
White
29 - 42
43 - 56
2
Blue
57 - 70
71- 85
3
Yellow
86 - 113
DLFC
UF
Color
[gpm]
0
Red
1.2
1.5
1
White
2
2.4
3.5
2
Blue
4
5
3
Yellow
7
Ref. MKT-IM-020 / B - 08.06.2018
BLFC
DF [gpm] UF [gpm]
0.25
0.25
0.50
0.50
1.00
1.00
