Summary of Contents for Pentair FLECK 9100 SXT

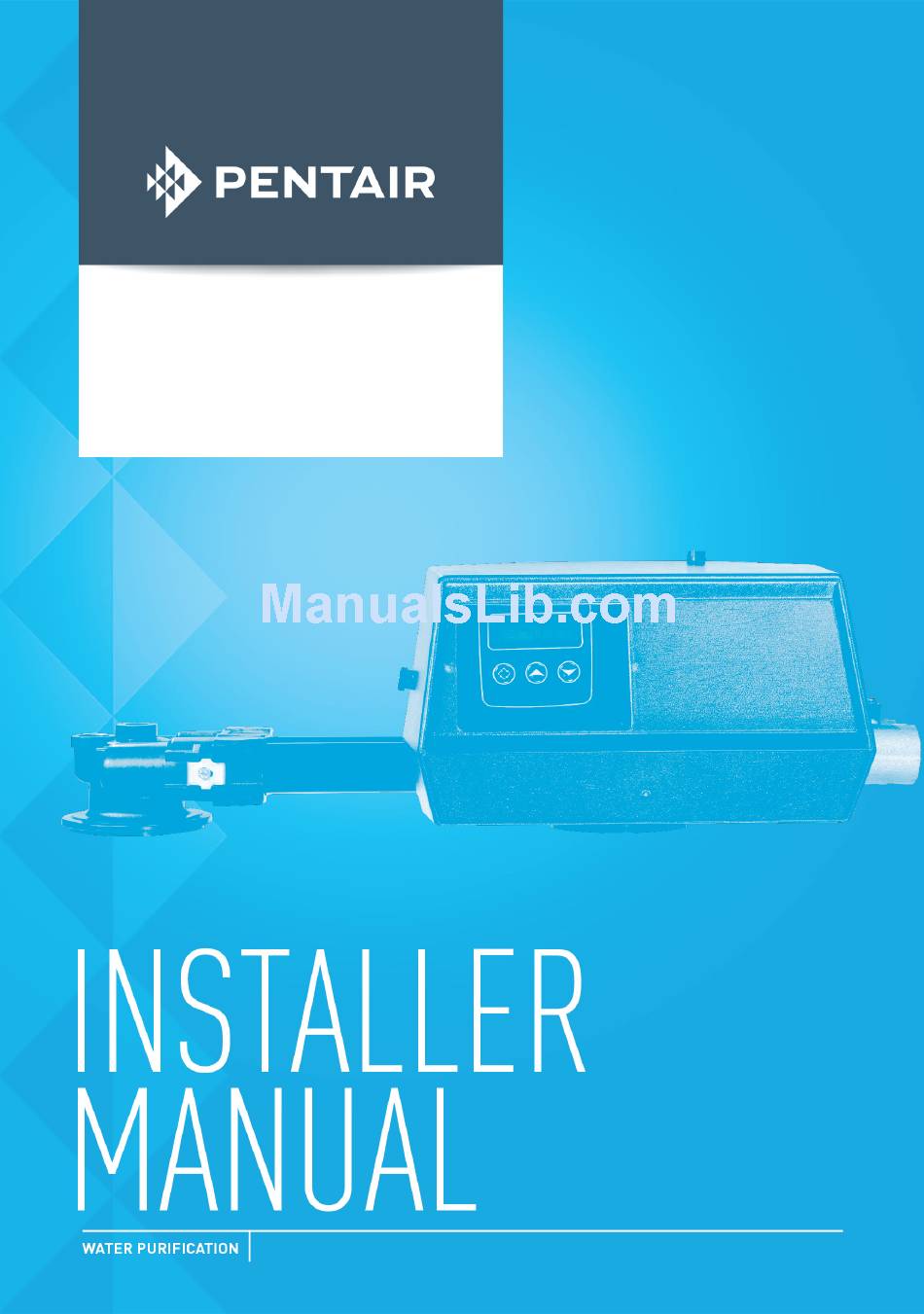

  • Page 1 FLECK 9100 SXT...

  • Page 2: Table Of Contents

    Installer Manual Fleck 9100 - SXT - Table of content Table of content Generalities ......... . 7 1.1.
  • Page 3 Installer Manual Fleck 9100 - SXT - Table of content System sizing ........23 4.1.
  • Page 4 Installer Manual Fleck 9100 - SXT - Table of content Programming ........42 6.1.
  • Page 5 Installer Manual Fleck 9100 - SXT - Table of content Commissioning ........53 7.1.
  • Page 6 Installer Manual Fleck 9100 - SXT - Spare parts ......... 80 11.1.

  • Page 7: Generalities

    Author Description 27.10.2016 First edition 1.3. Manufacturer identifier, product Manufacturer: Pentair Manufacturing Italy Srl Via Masaccio, 13 56010 Lugnano di Vicopisano (PI) – Italy Product: Fleck 9100 - SXT 1.4. Intended use The device is intended to be used for domestic applications only and it is purpose-built for water treatment.

  • Page 8: Abbreviations Used

    Installer Manual Fleck 9100 - SXT - Generalities 1.5. Abbreviations used DF............Down Flow UF............Up Flow HW............Hot Water CW............Cold Water Inj ............Injector DLFC ............Drain Line Flow Controller BLFC / Refill Flow Controller....Brine Line Flow Controller QC............

  • Page 9: Procedure For Technical Support

    Pentair Quality System EMEA products benefit, under specific conditions, from a manufacturer warranty that may be invoked by Pentair’s direct customers. Users should contact the vendor of this product for applicable conditions and in case of a potential warranty claim.

  • Page 10: Safety

    Installer Manual Fleck 9100 - SXT - Safety Safety 2.1. Safety pictograms definition Caution Warning Warns of a risk of minor injury or major Warns against serious personal injury material damage to the device or and damage to health. environment. Danger...

  • Page 11: Personnel

    Installer Manual Fleck 9100 - SXT - Safety 2.3.1. Personnel Only qualified and professional personnel, based on their training, experience and instruction as well as their knowledge of the regulations, the safety rules and operations performed, are authorized to carry out necessary work. 2.3.2.

  • Page 12: Description

    Installer Manual Fleck 9100 - SXT - Description Description 3.1. Technical specifications Design specifications/ratings Valve body ..........PPO (Polyphenylene oxide) Rubber components ....... EP or EPDM Valve material certification ....DM174, ACS Weight (valve with controller) ....3 kg (max) Recommended operating pressure ..

  • Page 13: Performance Flow Rate Characteristics

    Installer Manual Fleck 9100 - SXT - Description Environmental conditions • Indoor use only; • Temperature from 5°C to 40°C; • Maximum relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C; • Mains supply voltage fluctuations up to ±10% of the nominal voltage. 3.1.1.

  • Page 14: Way Of Operation

    Installer Manual Fleck 9100 - SXT - Description 3.1.2. Way of operation The 9100 valve is a twin alternating valve with immediate regeneration when a tank is exhausted. As soon as the probes detect that the used tank is exhausted, the controller switches tanks and begins regeneration in the exhausted tank as shown below.
  • Page 15 Installer Manual Fleck 9100 - SXT - Description 3.1.2.2 Upflow Tank 1 in Service Tank 2 in Standby Tank 1 in Brine draw/slow Tank 2 in Tank Refill rinse Tank 1 in Service Tank 2 in Service Tank 1 in Backwash Tank 2 in Fast Rinse Tank 2 in Service Tank 1 in Service...

  • Page 16: Outline Drawing

    Installer Manual Fleck 9100 - SXT - Description 3.2. Outline drawing Tank X [mm] 7" 78.3 9" 144.5 12" 221.0 16" 322.3 16 / 94 Ref. MKT-IM-004 / A - 27.10.2016...

  • Page 17: Description And Components Location

    Installer Manual Fleck 9100 - SXT - Description 3.3. Description and components location Controller LCD screen Regen button Up button Down button Motor Second tank adapter Tube assembly Mixing device Drain line Brine valve Injector block Meter Inlet Outlet Ref. MKT-IM-004 / A - 27.10.2016 17 / 94...

  • Page 18: System Regeneration Cycle

    Installer Manual Fleck 9100 - SXT - Description 3.4. System regeneration cycle Note This valve allows to do down flow or up flow regenerations. 3.4.1. Down flow regeneration cycle (5-cycles operation) Service — normal use Untreated water is directed down through the resin bed and up through the riser tube. The hardness ions attach themselves to the resin and are removed from the raw water being exchanged on the resin beads against sodium ions.
  • Page 19 Installer Manual Fleck 9100 - SXT - Description Note For illustration purpose only. Always verify inlet and outlet marking on the valve. SERVICE NORMAL USE BACKWASH Inlet Outlet Inlet Outlet Drain Valve Valve BRINE DRAW & SLOW RINSE RAPID RINSE Inlet Outlet Inlet...

  • Page 20: Up Flow Regeneration Cycle (5-Cycles Operation)

    Installer Manual Fleck 9100 - SXT - Description 3.4.2. Up flow regeneration cycle (5-cycles operation) Service — normal use Untreated water is directed down through the resin bed and up through the riser tube. The hardness ions attach themselves to the resin and are removed from the raw water being exchanged on the resin beads against sodium ions.
  • Page 21 Installer Manual Fleck 9100 - SXT - Description Note For illustration purpose only. Always check for inlet and outlet marking on the valve. SERVICE NORMAL USE BRINE DRAW & SLOW RINSE Inlet Outlet Inlet Outlet Drain Valve Valve From brine tank BACKWASH RAPID RINSE...

  • Page 22: Options Available On The Valve

    Installer Manual Fleck 9100 - SXT - Description 3.5. Options available on the valve Mixing device The valve can be equipped with a mixing device (1) whose function is to regulate the hardness of the water at the outlet. The mixing can be set from 0% to 25% of hard water (e.i. 0 turn = 0% of hard water with 100% of treated water and 1-½...

  • Page 23: System Sizing

    Installer Manual Fleck 9100 - SXT - System sizing System sizing 4.1. Recommendations 4.1.1. Injector/DLFC/BLFC-Valve configuration Connect. Resin Diam. Injector DLFC BLFC Valve tubes volume type [in] [mm] Color Color [gpm] DF [gpm] UF [gpm] 5 - 7 78.3 0.125 0.125 8 - 14 9 - 21...
  • Page 24 Installer Manual Fleck 9100 - SXT - System sizing The softening and regeneration reactions are driven under certain conditions. To allow these reactions to take place, make sure that the velocity is convenient during the different phases for proper ion exchange. This velocity is given in the resin manufacturer specifications sheet. Depending on the inlet water hardness, the service velocity for standard softening must be between: Inlet water hardness Service velocity...

  • Page 25: Determining The Required Volume Of Resin

    Installer Manual Fleck 9100 - SXT - System sizing 4.2.2. Determining the required volume of resin When sizing a softener, make sure that the volume of resin in the tank (bed volume) will be sufficient so that even when the peak flow rate is reached, the velocity is still between the above values depending on the hardness.
  • Page 26 Installer Manual Fleck 9100 - SXT - System sizing Resin exchange capacity as a function of the salt dosage for standard efficiency: Salt amount Corresponding resin exchange °f.m °dH.m [g/L capacity in [g/L ] as CaCO resin resin 29.9 2.99 1.67 37.5 3.75...
  • Page 27 Installer Manual Fleck 9100 - SXT - System sizing Resin exchange capacity as a function of the salt dosage for high efficiency: Salt amount Corresponding resin exchange °f.m °dH.m [g/L capacity in [g/L ] as CaCO resin resin 33.6 3.36 1.88 2.23 44.5...

  • Page 28: Valve Configuration

    Installer Manual Fleck 9100 - SXT - System sizing Caution If M must be expressed in [kg] the value must be divided by 1000. capacity Caution If a mixing device is set on the valve, the inlet water hardness will need to be adjusted to the actual outlet residual hardness setup.

  • Page 29: Cycle Time Calculation

    Installer Manual Fleck 9100 - SXT - System sizing 4.2.5. Cycle time calculation From this point, the volume of resin, the tank size and the capacity of the softener are determined. Next step is to calculate the regeneration cycle duration, which depend on the valve configuration and once again on the resin specifications.
  • Page 30 Installer Manual Fleck 9100 - SXT - System sizing To calculate slow rinse duration: The volume of water to be used for slow rinse is given in the resin manufacturers specifications. Generally speaking, it is advised that between 2 and 4 BV of water is used to perform the slow rinse after brine draw.

  • Page 31: 1650 Injector Flow Rates

    Installer Manual Fleck 9100 - SXT - System sizing 4.3. 1650 Injector flow rates The following tables and graphics represent the injectors flow rate as a function of the inlet pressure for the different injector sizes. DOWNFLOW Flow rate [l/min] UPFLOW Flow rate [l/min] 4.4.

  • Page 32: Installation

    Installer Manual Fleck 9100 - SXT - Installation Installation Mandatory It is strictly forbidden for not qualified personal, to accede to system’s internal parts to perform any kind of technical action. Be sure to disconnect the electrical power, close the water inlet and depressurize the system before opening the front cover to access internal parts.

  • Page 33: Water

    Installer Manual Fleck 9100 - SXT - Installation 5.3.2. Water • Water temperature must not exceed 43°C. • A minimum of 1.4 bar (dynamic pressure on injector) of water pressure is required for the regeneration valve to operate effectively. Mandatory Do not exceed a maximum of 8.6 bar inlet pressure.

  • Page 34: Integration Constraints

    Installer Manual Fleck 9100 - SXT - Installation • It is not recommended to use sealants on the threads. Use PTFE (plumber’s tape) on the threads of the drain elbow, and other NPT/BSP threads. • The installation of a prefilter is always recommended (100μ nominal). •...
  • Page 35 Installer Manual Fleck 9100 - SXT - Installation Support to the wall 200 mm flexible • The diagrams above illustrate how the flexible piping connection should be mounted. • In order to adequately compensate the tank elongation the flexible piping must be installed horizontally.
  • Page 36 • In any case, any failure caused by improper installation and/or piping connections may void the warranty of Pentair products. • In the same way, using lubricant* on the valve thread is not allowed and will void the warranty for the valve and tank.

  • Page 37: Block Diagram And Configuration Example

    Installer Manual Fleck 9100 - SXT - Installation 5.6. Block diagram and configuration example Configuration example 60067-03 25645 18168 Block diagram Bypass Main inlet Gauge Gauge User’s line Check valve to prevent water hammer and eventual hot water returns. Turbine Mixing Can be integrated in Drain...

  • Page 38: Configuration Types

    Installer Manual Fleck 9100 - SXT - Installation 5.7. Configuration types Metered: The controller monitors the volume of water used. Once it calculates that there is not enough capacity for the next days operation, a regeneration cycle will be initiated immediately or at a pre-set time. •...

  • Page 39: Bypassing

    Installer Manual Fleck 9100 - SXT - Installation 5.9. Bypassing A bypass valve system should be installed on all water conditioning systems. Bypass valves isolate the softener from the water system and allow unconditioned water to be used. Service or routine maintenance procedures may also require that the system is bypassed.

  • Page 40: Drain Line Connection

    Installer Manual Fleck 9100 - SXT - Installation 5.10. Drain line connection Note Standard commercial practices are expressed here. Local codes may require changes to the following suggestions. Check with local authorities before installing a system. Preferably, the unit should not be more than 6.1 m from the drain. Use an appropriate adapter fitting to connect 25.4 mm (1") plastic tubing to the drain line connection of the valve.

  • Page 41: Overflow Line Connection

    Installer Manual Fleck 9100 - SXT - Installation 5.11. Overflow line connection In the event of a malfunction, power failure, etc, the brine tank overflow fitting will direct “overflow” to the drain instead of spilling on the floor. This fitting should be on the side of the cabinet or brine tank.

  • Page 42: Programming

    Installer Manual Fleck 9100 - SXT - Programming Programming Note As soon as programming mode is entered, all parameters can be displayed or set to suit the needs. Depending on the current programming, some functions will not be displayed or will not be changeable.

  • Page 43: Commands

    Installer Manual Fleck 9100 - SXT - Programming 3. Parameter display → RS: Reserve selection; → RT: Regeneration time; → SF: Safety factor; → SV: Software version; → TD: Time of day; → TS: Unit in service; → VT: Regeneration mode; →...

  • Page 44: Regeneration Time (Rt)

    Installer Manual Fleck 9100 - SXT - Programming 6.4.2. Regeneration time (RT) Determine the time of regeneration. Adjust the regeneration time with Press to validate the selection and advance to the next parameter. 6.4.3. Feed Water Hardness (H) Determine the feed water hardness in °tH. Adjust the water hardness with Press to validate the selection and advance to the next parameter.

  • Page 45: Display Format Mode (Df)

    Installer Manual Fleck 9100 - SXT - Programming 6.5.1. Display format mode (DF) Select the unit of measure. Options: • GAL: U.S. Gallons and 12-Hour AM/PM; • Ltr; Liters and 24-Hour. Press to select the unit. Press to validate the selection and move to the next parameter. 6.5.2.

  • Page 46: Tank In Service (Ts)

    Installer Manual Fleck 9100 - SXT - Programming 6.5.5. Tank in service (TS) Select which tank is in service. M Press to select which tank is in service. Press to validate the selection and move to the next parameter. 6.5.6. Unit capacity (C) Set the unit capacity.

  • Page 47: Reserve Selection (Rs)

    Installer Manual Fleck 9100 - SXT - Programming 6.5.8. Reserve selection (RS) Note This parameter is not useful due to regeneration control type (CT) set to FI. Press to validate the selection and move to the next parameter. 6.5.9. Safety factor (SF) Note...

  • Page 48: Regeneration Time (Rt)

    Installer Manual Fleck 9100 - SXT - Programming 6.5.12. Regeneration time (RT) Set the regeneration time. Note Regeneration time is the time of the day when regenerations occur for delayed regeneration of any type and calendar override regeneration. Press to set the regeneration time. Press to validate the selection and move to the next parameter.

  • Page 49: Flow Meter Type (Fm)

    Installer Manual Fleck 9100 - SXT - Programming 6.5.13.3 For regeneration type Other Note The regeneration cycles are identified as R1 to R6. AB Press to set the regeneration time of this cycle. AC Press to validate the selection and move to the next regeneration cycle.

  • Page 50: Diagnostic

    Installer Manual Fleck 9100 - SXT - Programming 6.6. Diagnostic Note Depending on current settings, some displays cannot be viewed. Note If none of the buttons are pushed for 1 minute in the diagnostic mode the controller returns to Service mode. 6.6.1.

  • Page 51: Volume Since Last Regeneration (Vu)

    Installer Manual Fleck 9100 - SXT - Programming 6.6.5. Volume since last regeneration (VU) Note Shows the volume used since the last regeneration (L). Volume since last regeneration display (L or Gal depending on display format programmed). 6.6.6. Reserve capacity (RC) Note...

  • Page 52: Hard Reset (Hr)

    Installer Manual Fleck 9100 - SXT - Programming 6.7.2. Hard reset (HR) Caution All the parameters are set to default values. Hold while powering up the unit. The display shows HR. Reprogram all parameters in Master programming mode. 52 / 94 Ref.

  • Page 53: Commissioning

    Installer Manual Fleck 9100 - SXT - Commissioning Commissioning Note This chapter is available for standard regeneration types. Contact your supplier if the actual regeneration is not standard and if you need assistance. 7.1. Water filling, draining and waterproofness inspection 7.1.1.

  • Page 54: Additional Tips

    Installer Manual Fleck 9100 - SXT - Commissioning Fill the brine tank or cabinet with salt. You may want to mark the level of water in the brine tank/ cabinet when completely refilled with water and full of salt. In the future, after each regeneration, you can visually control that the quantity of water refilled should be between the 2 marks done.

  • Page 55: Electro Chlorination

    Installer Manual Fleck 9100 - SXT - Commissioning Brine tank softeners Backwash the softener and add the required amount of hypochlorite solution to the well of the brine tank. The brine tank should have water in it to permit the solution to be carried into the softener. Proceed with the normal regeneration.

  • Page 56: Operation

    Installer Manual Fleck 9100 - SXT - Operation Operation 8.1. Display during operation Examples: • Valve in service with day time: • Valve in service with volume remaining to regeneration: • Remaining days before next regeneration: • Tank in service: •...

  • Page 57: Manual Regeneration

    Installer Manual Fleck 9100 - SXT - Operation 8.3. Manual regeneration Mandatory The controller must be in service in order to enable this procedure. 8.3.1. Manual delayed regeneration Note This option is not available in mode FI. 8.3.2. Immediate regeneration Press and hold for 5 seconds to initiate immediate manual regeneration regardless from the programmed regeneration control type.

  • Page 58: Maintenance

    Installer Manual Fleck 9100 - SXT - Maintenance Maintenance Mandatory Cleaning and maintenance shall take place at regular intervals in order to guarantee the proper functioning of the complete system, and be documented in the Maintenance chapter in the User Guide document. 9.1.

  • Page 59: Replacing The Controller

    Installer Manual Fleck 9100 - SXT - Maintenance 9.2.2. Replacing the controller Operation Loosen the wheels (1) and open the valve cover (2). Push the controller (3). Press the controller clips (5) and open the controller cover (4). Disconnect the old controller (7) and remove it opening the card clips (6). Connect the new controller, see 5.8.

  • Page 60: Replacing The Gearing System

    Installer Manual Fleck 9100 - SXT - Maintenance 9.2.3. Replacing the gearing system Operation Loosen the wheels (1) and open the valve cover (2). Push the controller (3). Using a 7 mm wrench or flat screwdriver, unscrew (4) to free the meter cable (5) and the controller (3).
  • Page 61 Installer Manual Fleck 9100 - SXT - Maintenance Ref. MKT-IM-004 / A - 27.10.2016 61 / 94...

  • Page 62: Replacing Piston And/Or Seal And Spacer Kit

    Installer Manual Fleck 9100 - SXT - Maintenance 9.2.4. Replacing piston and/or seal and spacer kit 9.2.4.1 Special tools needed Packaging Item Part number Description quantity 13061 Puller 11098 Stuffer 9.2.4.2 Replacing the upper piston and/or its seal and spacer kit Caution...
  • Page 63 Installer Manual Fleck 9100 - SXT - Maintenance Ref. MKT-IM-004 / A - 27.10.2016 63 / 94...
  • Page 64 Installer Manual Fleck 9100 - SXT - Maintenance 9.2.4.3 Replacing the lower piston and/or its front side seal and spacer kit Caution Use only approved silicon grease or soapy water. Operation Remove the gearing system, see “Replacing the micro-switches”, page 75. Using pliers, remove the piston (4).
  • Page 65 Installer Manual Fleck 9100 - SXT - Maintenance Ref. MKT-IM-004 / A - 27.10.2016 65 / 94...
  • Page 66 Installer Manual Fleck 9100 - SXT - Maintenance 9.2.4.4 Replacing the back side seal and spacer cartridge Valve produced before November 2009 Note The seal & spacer cartridge for downflow and upflow are different. Caution Use only approved silicon grease or soapy water. Operation Remove the lower piston, see “Replacing the lower piston and/or its front side seal and spacer kit”, page 64.
  • Page 67 Installer Manual Fleck 9100 - SXT - Maintenance Ref. MKT-IM-004 / A - 27.10.2016 67 / 94...
  • Page 68 Installer Manual Fleck 9100 - SXT - Maintenance Valve produced from November 2009 until April 2015 Note One of the seals contained in the cartridge will not be used for downflow. Caution For downflow, using this extra seal may damage the valve and its components. Note...
  • Page 69 Installer Manual Fleck 9100 - SXT - Maintenance Ref. MKT-IM-004 / A - 27.10.2016 69 / 94...
  • Page 70 Installer Manual Fleck 9100 - SXT - Maintenance 9.2.4.5 Valve produced after April 2015 Caution Use only approved silicon grease or soapy water. Operation Remove the lower piston, see “Replacing the lower piston and/or its front side seal and spacer kit”, page 64. Using a 8 mm wrench or flat screwdriver, unscrew (1) and remove the end cap (2).
  • Page 71 Installer Manual Fleck 9100 - SXT - Maintenance Ref. MKT-IM-004 / A - 27.10.2016 71 / 94...

  • Page 72: Injector Block Cleaning

    Installer Manual Fleck 9100 - SXT - Maintenance 9.2.5. Injector block cleaning Operation Remove the screws (1). Remove the injector block (2) and the spacer (3). Remove the o-rings (4) and (5). Remove the cap (6). Remove the injector filter (11) and clean it immersing it in limescale. Unscrew the nozzle (13) and the injector (12) and clean them blowing inside and immersing them in limescale.
  • Page 73 Installer Manual Fleck 9100 - SXT - Maintenance Ref. MKT-IM-004 / A - 27.10.2016 73 / 94...

  • Page 74: Replacing The Controller Motor

    Installer Manual Fleck 9100 - SXT - Maintenance 9.2.7. Replacing the controller motor Operation Loosen the wheels (1) and open the valve cover (2). Disconnect the motor (4). Unscrew (5) and pull out the old motor (4) and the plate (3). Change the motor (4).

  • Page 75: Replacing The Micro-Switches

    Installer Manual Fleck 9100 - SXT - Maintenance 9.2.8. Replacing the micro-switches Operation Loosen the wheels (1) and open the valve cover (2). Unscrew (4) and pull out the old micro-switches (3). Disconnect the micro-switches (3). Change the micro-switches (3). Reverse above procedure steps to rebuild.

  • Page 76: Troubleshooting

    Installer Manual Fleck 9100 - SXT - Troubleshooting Troubleshooting Problem Cause Solution Interrupted power Restore electrics (mains, fuse). Defective power head Replace power head. Check connections of the controller Unplugged meter cable and on the meter cover. Softener fails to regenerate.
  • Page 77 Installer Manual Fleck 9100 - SXT - Troubleshooting Problem Cause Solution Plugged drain line flow control (DLFC) Check flow regulator. Too much water in Faulty brine valve Change brine valve. the brine tank Check programming and modify if Wrong programming necessary.

  • Page 78: Error Detection

    Installer Manual Fleck 9100 - SXT - Troubleshooting 10.1. Error detection Errors codes appear on the service display. Note It can take up to 1 minute before an error can be detected and displayed. 10.2. Error types and causes 10.2.1. Motor stall / cam sense error Note...

  • Page 79: Regeneration Failure

    Installer Manual Fleck 9100 - SXT - Troubleshooting 10.2.3. Regeneration failure Note The system has not regenerated for more than 99 days or 7 days if the controller type has been set to day of week. Perform a manual regeneration to reset the error code. If the system is metered, verify that it is measuring flow by running service water and watching for the flow indicator on the display.

  • Page 80: Spare Parts

    Installer Manual Fleck 9100 - SXT - Spare parts Spare parts 11.1. Valve parts list 80 / 94 Ref. MKT-IM-004 / A - 27.10.2016...
  • Page 81 Installer Manual Fleck 9100 - SXT - Spare parts Packaging Item Part number Description quantity Piston rod screw BR11335 Upper piston assembly 24234 Upper seals & spacers kit 24115 Valve body assembly & distributor adapter 9100 BU28241 without mixing Lower DF seals & spacers kit BU28664 Lower UF seals &...

  • Page 82: Power Head Parts List

    Installer Manual Fleck 9100 - SXT - Spare parts 11.2. Power head parts list 82 / 94 Ref. MKT-IM-004 / A - 27.10.2016...
  • Page 83 Installer Manual Fleck 9100 - SXT - Spare parts Packaging Item Part number Description quantity Cover assembly black left window BU26473 Wire nut tan BR40422 Kit transformer 10VA 400 mA residential BU28597 Screw flat head 15172 Serial number label 21271 Nut tinnerman, u type, 8-32 18728 Transformer wire harness...

  • Page 84: Controller Parts List

    Installer Manual Fleck 9100 - SXT - Spare parts 11.3. Controller parts list Packaging Item Part number Description quantity Complete SXT controller without meter cable BU28712-02 SXT front panel BR42637 Cover front panel & label SXT BU28714 Circuit board SXT programmed Eco BR43346-E0 Circuit board housing 19889...

  • Page 85: Plastic Turbine Meter Assembly

    Installer Manual Fleck 9100 - SXT - Spare parts 11.4. Plastic turbine meter assembly Packaging Item Part number Description quantity 26702 Meter assembly, ¾", electronic plastic 12473 Screw hex washer 10-24 x 5/8 18-8SS 18330 Cover meter assembly, ¾", electronic plastic BU13255 Mounting clip 14202-01...

  • Page 86: Bypass Valve Assembly List

    Installer Manual Fleck 9100 - SXT - Spare parts 11.5. Bypass valve assembly list 11.5.1. Plastic bypass (no yoke) Packaging Item Part number Description quantity Bypass plastic (no yoke) BU26054 Screw, slot ind, hex, 8-18 x 0.60" 13314 Clip mounting BU13255 O-ring-119 13305...

  • Page 87: 1" Bsp Female Brass With Mixing

    Installer Manual Fleck 9100 - SXT - Spare parts Packaging Item Part number Description quantity Bypass body, 1" BSP, stainless steel 40634-10 Seal, bypass, 560CD 14105 Plug, bypass BU11972 Cover bypass top BU11978 Label bypass standard 13604-1 Bypass handles red 24419-10 Screw Hex Head Mach 1/4-20 X 1 Or Slot Hex 13386...

  • Page 88: Second Tank Adapter Parts List

    Installer Manual Fleck 9100 - SXT - Spare parts 11.6. Second tank adapter parts list Packaging Item Part number Description quantity 2nd tank adapter assembly 28242 Mounting clip BU13255 Screw adapter clip 14202-01 O-ring 13287-01 Ring yoke retainer 40678 Tube assembly for 7" tank 28243-07 Tube assembly for 9"...

  • Page 89: Safety Brine Valves List

    Installer Manual Fleck 9100 - SXT - Spare parts 11.7. Safety brine valves list 2300 2310 BV 44 Packaging Item Part number Description quantity 27833 Safety Brine Valve 2300 - Without Air-Check 27834 Safety Brine Valve 2300 - HW - Without Air-Check 60067-03 Safety Brine Valve 2310 - Without Air-Check 25687...

  • Page 90: Distributors List

    Installer Manual Fleck 9100 - SXT - Spare parts 11.9. Distributors list Packaging Item Part number Description quantity 21675 Distributor assembly, 1” High Flow Hot Water 1 m 88 25645 Distributor assembly, 1” High Flow 1 m 95 27827 Distributor assembly, 1” High Flow 1 m 10 27828 Distributor assembly, 1”...

  • Page 91: Yokes

    Installer Manual Fleck 9100 - SXT - Spare parts 11.10. Yokes Packaging Item Part number Description quantity 13398-10 Yoke, 1", BSP, female, brass 24735 Yoke, 1", BSP, female, brass, mixing 24689 Yoke, ¾", BSP, male, brass 18706-12 Yoke, ¾", BSP, male, plastic 18706-10 Yoke, 1", BSP, male, plastic Ref.

  • Page 92: Other Components List

    Installer Manual Fleck 9100 - SXT - Spare parts 11.11. Other components list Packaging Item Part number Description quantity Adapter assembly, kit coupling Kit 51 Tube Guide 24575 10330 Sleeve " Filter 12767 12794-01 Elbow " 10332 Insert Tube " Adapter assembly, kit coupling, with o-rings Kit 256 O-ring-119...

  • Page 93: Scrapping

    This will help to reduce the impact on the environment, health, safety and help to promote recycling. Pentair does not collect used product for recycling. Contact your local recycling center for more information.
  • Page 94 www.pentairaquaeurope.com...
