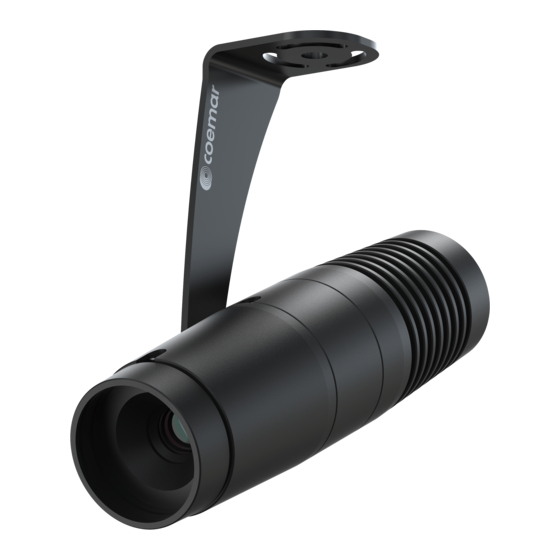

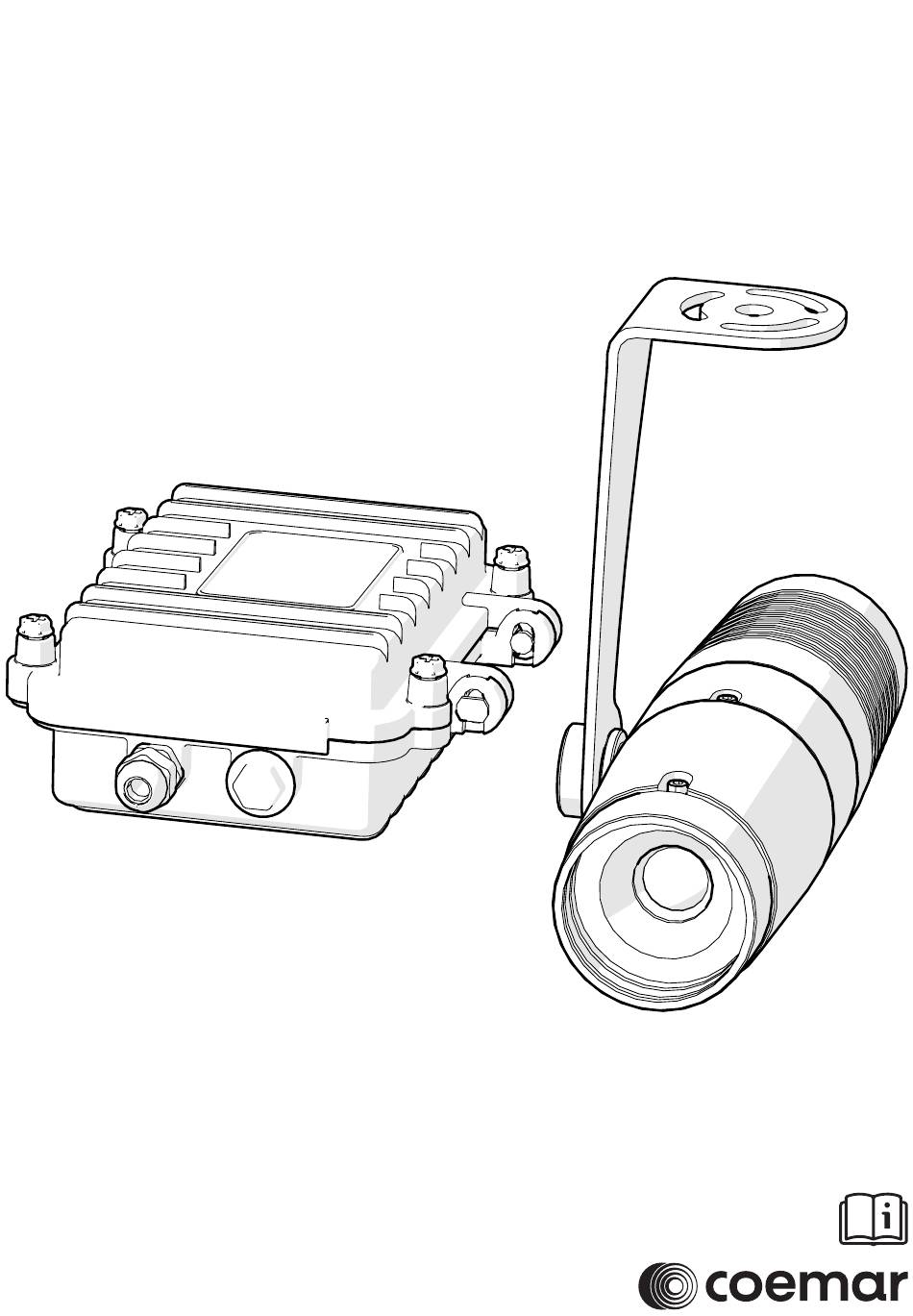

- Page 1 MiniLEDko Spot USER MANUAL vrs. 1.2 - 22.08.2023...
- Page 2 Coemar ®. If you are downloading files from our web pages for your personal use, make sure to check for updated versions. Coemar ® cannot take any liability whatsoever for downloaded files, as technical data are subject to change without notice.
-
Page 3: Table Of Contents
6.1 Control signal connection by XLR5 plugs ................Pag. 16 7. Turning the projector on......................Pag. 17 8. Setup via RDM ........................... Pag. 17 8.1 Quick guide to menu ......................Pag. 17 8.2 RDM Chart ........................... Pag. 18 8.3 RDM Error Chart ........................Pag. 18 User Manual 2023 coemar.com... - Page 4 11. Accessories and spare parts ....................Pag. 25 12. Maintenance..........................Pag. 26 12.1 Firmware update......................... Pag. 26 12.2 Periodic cleaning....................... Pag. 26 12.3 Periodic controls........................ Pag. 26 12.4 Fuses..........................Pag. 26 13. F.A.Q. and answers........................Pag. 27 User Manual 2023 coemar.com...
-
Page 5: Packaging And Transportation
1 MiniLEDko Spot 1 Power Box 1 Metal key for mounting gobo (BC016A010) 1 Instruction manual Transportation The MiniLEDko Spot should be transported in either its original packaging or in an appropriate flight case. . General information Safety informations Fire prevention: 1. -
Page 6: Warranty Conditions
3. The level of technology of MiniLEDko requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. -
Page 7: Product Specifications
Color Rendering Index (CRI) K) TLCI >98 (98 @3200 K, 99 @5600 K) VariWhite version: CRI >93 TLCI >95 Weight 1.5 Kg / 3.31 lbs Ambient Operating Temperature 0°C - +40°C (32°F - 104°F) IP rating IP20 or IP65 User Manual 2023 coemar.com... -
Page 8: Dimensions
Dimensions 212.5 mm 47.5 mm 8.36 in 1.87 in 127 mm 5 in Body 151 mm 5.94 in 500 mm 19.69 in Power Box User Manual 2023 coemar.com... -
Page 9: Unit's Main Components
Unit’s main components Components description A Adjustable yoke Optic screws Lens (interchangeable) Yoke adjusting screws Power Box User Manual 2023 coemar.com... -
Page 10: Installation
. Installation Mechanical installation MiniLEDko Spot may be hung from an appropriate structure in any position or on tripode. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the following diagram. -
Page 11: Adjusting Unit's Tilt
In order to adjust the tilt of the unit simply loose the side screws “B”, adjust the tilt and lock the yoke by tightening the screws again. How to adjust the focus In order to adjust the focus turn the lens “C” until you will have reached the focus desired. User Manual 2023 coemar.com... -
Page 12: How To Mount The Gobo
How to mount the gobo 1. To change the gobo unscrew the screw “D” and pull the optical lens tube “E”. BC016A010) 2. Unscrew the gobo stopper “F” by using the included metal key “G” ( User Manual 2023 coemar.com... - Page 13 “I”. N.B. the gobo must comply with the following measures, otherwise MiniLEDko Spot may not work properly: Gobo outside diameter= 26 mm / 1.02 in Max image diameter= 22 mm / 0.86 in...
- Page 14 1. To change the optic unscrew the screw “J” and the screw underneath the front barrel “K”. 2. Now the optic will come off, chose the optic that you want to use and insert it into the barrel. User Manual 2023 coemar.com...
- Page 15 User Manual 2023 coemar.com...
-
Page 16: Powering Up
Connection to mains power MiniLEDko Spot is equipped with one power connectors. The max absorption of MiniLEDko Spot is reported in the following table: - 0.07 A @ 230 VaC constant during normal exercise. - 0.15 A @ 115 VaC constant during normal exercise. - Page 17 • Prior to connecting the device to mains power, ensure that the mains characteristics are within the recommended range for the use of Mini LEDko Spot. • All cabling and connections should be carried out by a suitably qualified personnel. User Manual 2023 coemar.com...
-
Page 18: Control Signal Connections
In order to keep this rating they must be connected exclusively to other IP rated connectors. N.B. In case of loss of the signal the MiniLEDko Spot will activate automatically dimmer at full and CCT at 4.000 K. The maximum number of products that can be connected when using with DMX is 32 MiniLEDko Spot. -
Page 19: Turning The Projector On
Setup via RDM Quick guide to menu The MiniLEDko Spot required RDM (Remote Device Management) to set up fixtures. Using an RDM compliant DMX controller, you can communicate with all the fixtures on a data link without needing to connect to each fixture individually. RDM lets you set the DMX addresses of all the fixtures on the link, carry out fixture configuration and retrieve fixture data including details of any error that has been logged. -
Page 20: Rdm Chart
RDM Error Chart ERROR DESCRIPTION SOLUTION MEMORY Memory Reading Error Perform A “Factory Reset” HW MEMORY Memory Hardware Error Contact Coemar DMX ADDR DMX Addressing Error The Personality Dimension Exceeds 512 Channels NTC ERROR Temperature Sensor Check Wiring NTC Led Disconnected... -
Page 21: Dmx Chart - Fixed White Version
9. DMX chart - Fixed White version DMX modes channels ↓ channels channel Master Dimmer Master Dimmer Spare Channel Dimmer Fine Strobe Special Function User Manual 2023 coemar.com... -
Page 22: Dmx Chart 5/1 Channels
206 - 211 81% - 83% LED control frequency tuning 5.000 Hz 212 - 217 83% - 85% no effect 218 - 240 85% LED control frequency tuning 20.000 Hz 241 - 255 95% - 100% User Manual 2023 coemar.com... -
Page 23: 10. Dmx Chart - Variwhite Version
Warm White Master Dimmer Master Dimmer Master Dimmer Master Dimmer Warm White Dimmer Fine White Tone Dimmer Fine Led Fine Cold White White Tone Proportional CCT Cold White Strobe Step CCT Led Fine Special Function Special Function User Manual 2023 coemar.com... - Page 24 206 - 211 81% - 83% LED control frequency tuning 5.000 Hz 212 - 217 83% - 85% no effect 218 - 240 85% LED control frequency tuning 20.000 Hz 241 - 255 95% - 100% User Manual 2023 coemar.com...
-
Page 25: Dmx Chart 2 / 1 Channels
212 - 217 83% - 85% no effect 218 - 240 85% LED control frequency tuning 20.000 Hz 241 - 255 95% - 100% Note 1: If channels 3 and 4 are used simultaneously, channel 4 prevails. User Manual 2023 coemar.com... -
Page 26: Dmx Chart Raw Mode
- 255 0% - 100% from 0 to 100% cold white proportional cold white led fine control 16 bit - 255 0% - 100% led fine User Manual 2023 coemar.com... -
Page 27: Accessories And Spare Parts
RME34/G last projector of the line (included) All the components of MiniLEDko Spot are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner. -
Page 28: Maintenance
. Maintenance 12.1 Firmware update The firmware of MiniLEDko Spot can be updates through the RDM protocol (ANSI E1.20). Contact Coemar assistance to receive the software and the device updater (AC10011A000). 12.2 Periodic cleaning Lenses Even a thin layer of dust can reduce the luminous output and alter the consistency of the beam. -
Page 29: And Answers
• Check DMX address of the unit. Help from Coemar Technical Services If you are having difficulties and your problem is not addressed by this document, contact Coemar Technical Services directly at one of this email address: info@coemar.com / service@coemar.com... - Page 30 .......................................................................................................................................................................................................................................................................................................................................... User Manual 2023 coemar.com...
- Page 31 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 32 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
