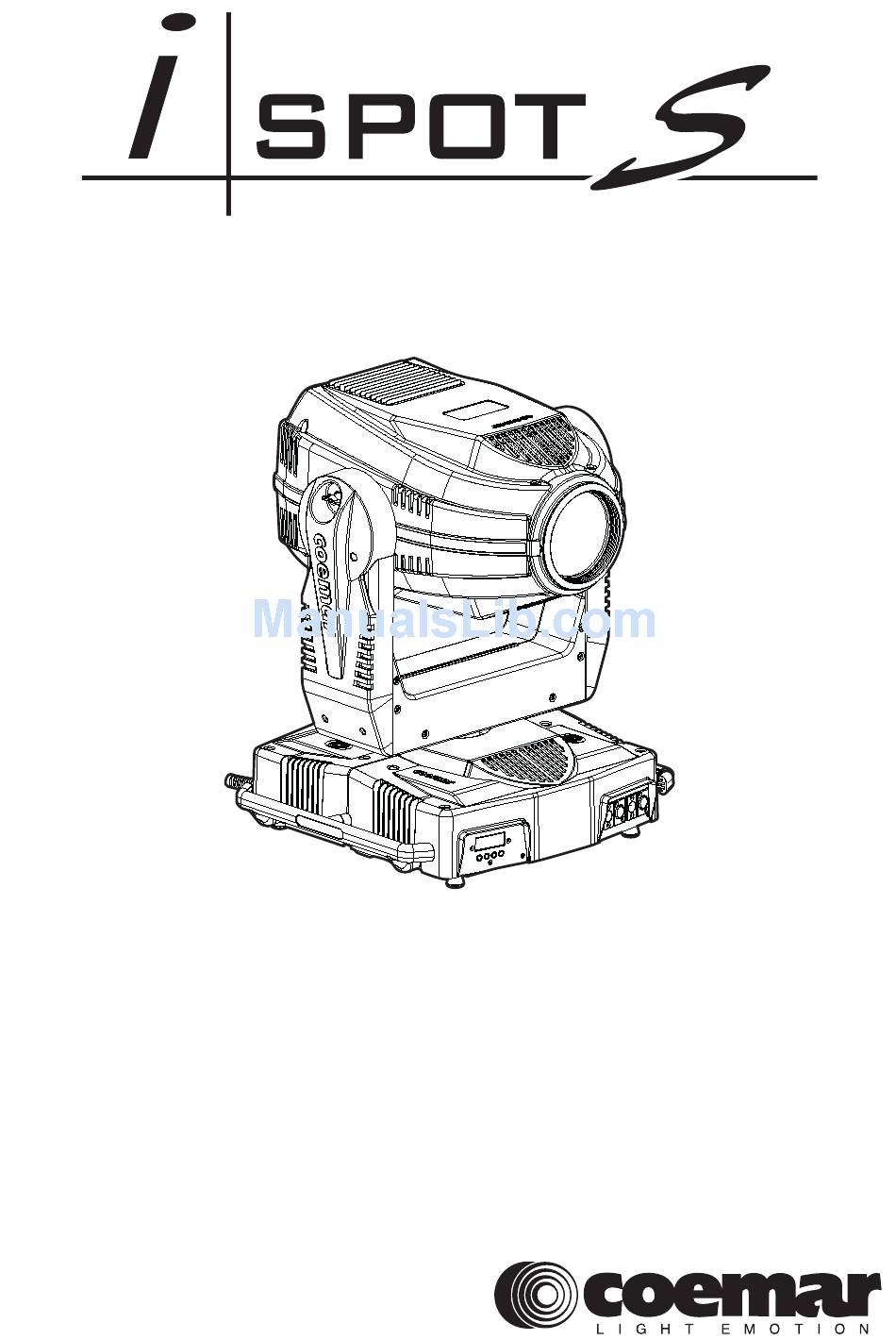

  • Page 1 manuale di istruzioni instructions manual Version 1.0...
  • Page 2 numero di serie/serial number data di acquisto/date of purchase fornitore/retailer indirizzo/address cap/città/suburb provincia/capital city stato/state tel./fax/ Prendete nota, nello spazio apposito, dei dati relativi al modello e al rivenditore del vostro iSpot S: in caso di richiesta di informazioni, pezzi di ricambio, servizi di riparazione o altro ci permetteranno di assistervi con la mas- sima rapidità...

  • Page 3: Table Of Contents

    English Index 1. Packaging and transportation Pag. 4 1.1. Packaging “ 1.2. Transportation “ 2. General information Pag. 4 2.1. Important safety information “ 2.2. Warranty conditions “ 2.3. CE norms “ 3. Product specifications Pag. 5 3.1. Technical characteristics “...

  • Page 4: Packaging And Transportation

    English Congratulations on having purchased a coemar product. You have assured yourself of a fixture of the highest quality, both in compo- nentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expe- dite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation).

  • Page 5: Warranty Conditions

    3. The warranty is immediately void if the projector has been operated or dismantled by unauthorised personnel 4. The warranty does not extend to fixture replacement 5. The serial number of the projector is required for any advice or service fro your authorised coemar service centre 2.3. CE norms The projector meets or exceeds all applicable CE requirements.

  • Page 6: Mechanical Installation

    “D” located on the base of the fixture and to the structure itself. If using an after-market safety chain not manufactured by Coemar, ensure that it is of sufficient rating to hold the weight of the unit.

  • Page 7: Operating Voltage And Frequency

    5.1. Operating voltage and frequency The projector may operate at voltages of 208, 230 or 240VAC at a frequency of 50 or 60Hz. Coemar presets (barring specific requests) a voltage of 230V. The preset voltage is indicated on the base of the projector.

  • Page 8: Mains Connection

    331,IEC 332 3C,CEI 20 35. NB: In case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3x1.5 ø external 10 mm, rated 300/500V, tested to 2KV, operating temperature -40° +180°, Coemar cod. CV5309). Connecting to mains power For connection purposes, ensure your plug is of a suitable rating to sustain the maximum current: •208/230/240V...

  • Page 9: Dmx Signal Connection

    English 6. DMX signal connection Control signal is digital and is transmitted via two pair screened ø0.5mm cable as per international standards for the transmission of DMX512 data. Connection is serial, utilising XLR3 and XLR5 male and female sockets located on the base of the iSpot S, labeled DMX 512 IN and OUT (see diagram).

  • Page 10: Turning On The Projector

    English 7. Turning on the projector After having followed the preceding steps, turn on the projector via the main Power switch. “D” The display and will show in sequnece the software version installed in the 3 onboard microprocessors - the display and the two “A”...
  • Page 11 English 7.2. DMX functions channel channel function type of control effect decimal percentage 16 bit 8 bit X axis, base movement proportional proportional coarse control of the base motor movement - 255 0% - 100% (pan) coarse X axis, base movement proportional proportional fine control of the base motor movement - 255...
  • Page 12 English channel channel function type of control effect decimal percentage 16 bit 8 bit no gobo - 10 0% - gobo 1 11 - 40 4% - 16% gobo 2 41 - 70 16% - 27% rotating gobo selection step gobo 3 71 - 100 28% - 39%...

  • Page 13: Display Panel Functions

    Changing the preset settings made by Coemar can vary the functions of the device so that it may not respond to a DMX 512 controller being used to control it. Carefully follow the instructions before applying any variations or selections.

  • Page 14: Measure And Test (Meas)

    English 8.2. Measure and test (MEAS) The internal microprocessor of the iSpot S allows for several diagnostic and output parameters to be displayed. You may record, in this menu, determine the position in which the projector will come to rest when turned on with no dmx signal attached.

  • Page 15: Rapid Scrolling

    English 8.3. Function settings (FUNC) The projector allows the altering of several functions and for selecting personalised settings. AOO1 menu FUNC enter PDIR + o – enter + o – enter pan movement inversion clockwise To reverse horizontal movement direction of the beam C C W on DMX level variation.

  • Page 16: Use Of Rj45 Connector

    English 8.5.Connecting the DR1 All the functions available via the display menu are also available via the DR1 (cod. 9703). The DR1 duplicates the display of the projector and eliminates the need for climbing up truss structures to gain direct physical access to the projector to alter such parameters as DMX address, reading outputs such as lamp life, setting master/slave configurations as well as all other functions available via the digital display unit on the projector.

  • Page 17: Lamp Installation And Alignment

    9. Lamp installation and alignment The iSpot S utilises the Philips MSR GOLD 1200 SA/SE PGJ50 base lamps. These lamps are available via your Coemar distributor or service centre. Lamp Philips MSR 1200 SA/DE Coemar code...

  • Page 18: Aligning The Lamp In The Optical Path

    English 2. Remove the lampholder assembly “B”. 3. Identify the lampholder “C“. 4. Fit in the lamp “D” in the lampholder pressing on the 2 terminals and position the welding of the glass “E” towards the back side of the unit. The lamp used is manufactured from quartz glass and should be handled with care; always adhere to the instructions supplied in the lamp’...

  • Page 19: Opening Up The Projector Housing

    S utilises a mechanical system which allows the fixture’ s gobos to be removed without the need for specialised equipment. Replacement gobos should be made of either heat resistant glass or metal. An ever-increasing range of gobos is available from your Coemar sales network. 10.1. Gobo dimensions iSpot S utilises gobos with thicknesses between 0.2 and 3.5 mm.

  • Page 20: Access To The Gobos Wheels

    English 10.3. Access to the gobos wheels To replace gobos, proceed as follows: 1. Open up the projector housing as discussed in section 10.2. Opening up the projector housing. 2. Loosen the thumbscrews “B” as shown in this diagram. 3. Remove the gobo group as shown in the diagram. You will the gobo wheels in a position where access to the individual gobos is quite straightforward.
  • Page 21 English 2.Lifting it from its seat, after which you can remove the gobo. 3. Place the new gobo into position and reverse the above procedure, ensuring that the spring sits firmly back in its proper place. 10.5 Replacing gobos on gobo wheel 2 1.

  • Page 22: Gobo Positioning

    English 10.6. Gobo positioning The diagrams below illustrate how to correctly position the various types of gobos. Treated glass Gobos Treated side facing the lamp Untreated side facing the projector front Textrued glass Gobos Textured side facing the lamp Smooth side facing the projector front Metal Gobos Reflective side facing the lamp Treated side facing the projector front...

  • Page 23: Thermal Protection

    Periodically check all mechanical devices for wear and tear; gears, guides, belts, etc., replacing them if necessary. Periodically check the lubrication of all components, particularly the parts subject to high temperatures. If necessary, lubricate with suitable lubricant, available from your coemar distributor. Electrical components Check all electrical components for correct earthing and proper attachment of all connectors, refastening if necessary.

  • Page 24: Spare Parts

    English formed by Coemar at the factory. It may be useful to perform this procedure in the case of internal components being replaced (motors, electronic parts, sensor, ecc.). Altering the factory settings may radically alter the functioning of the projector. Carefully read all of the following prior to attempting any changes.

  • Page 25: Error Messages

    The initial parameter settings are incorrect or corrupt; the projector has reloaded its factory default settings. Turn the projector off and on again. Should the error reoccur, refer the unit to your authorised coemar service centre to have the EEPROM check and possibly replaced.

  • Page 26: Frequently Asked Questions

    The lamp is not installed. Disconnect mains power and install a lamp. The lamp circuit protection fuse may be Check with your coemar service centre prior to blown replacing the fuse. The lamp turns off intermittently The projector is too hot.
  • Page 27 Coemar s.p.a. via Inghilterra 2/A - 46042 Castel Goffredo (Mantova) Italy ph. +39 0376/77521 - fax +39 0376/780657 info@coemar.com Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification...
