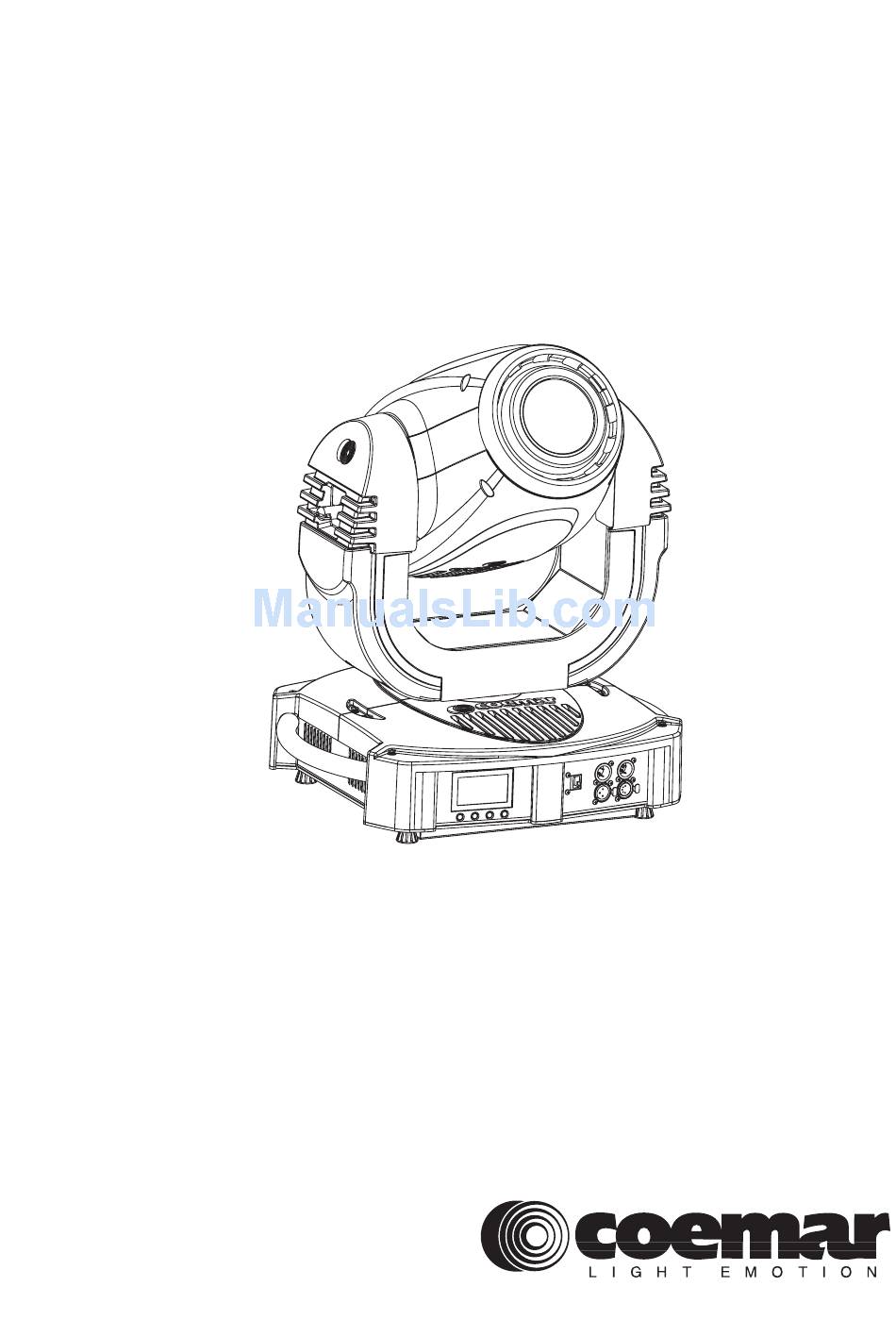

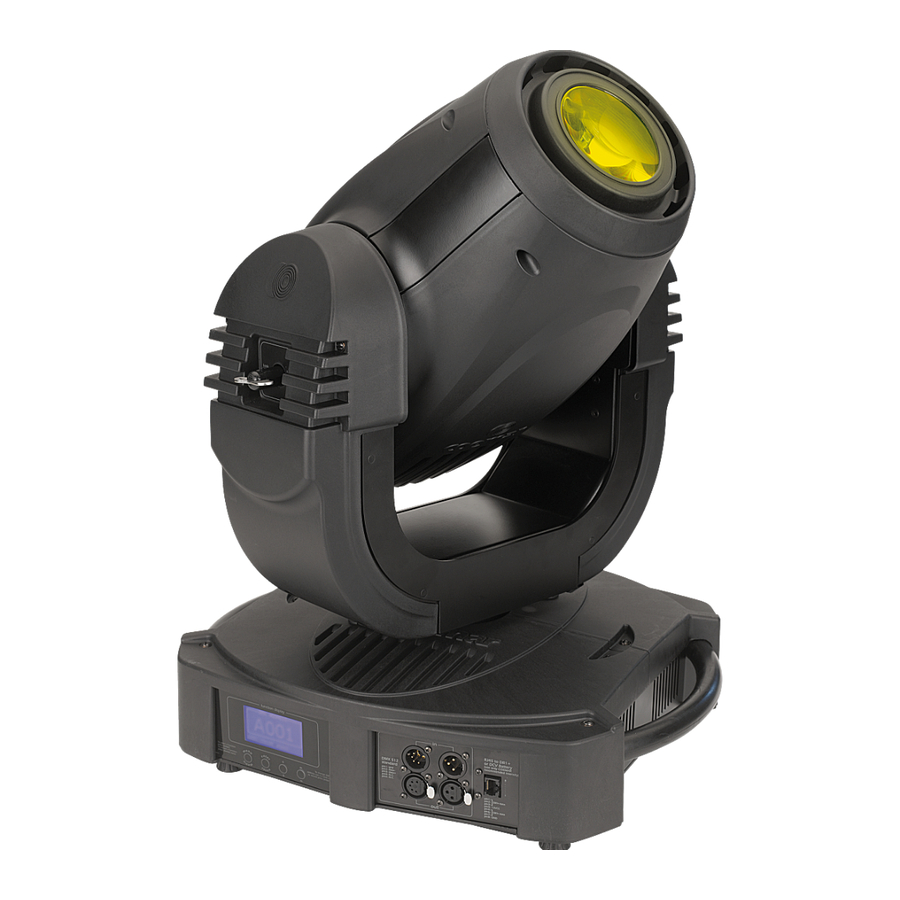

- Page 1 ∞ Infinity Spot S instruction manual manuale di istruzioni Version 1.2 DIS111...
- Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your infinity Spot S : this information will assist us in providing spare parts, repairs or in answer- ing any technical enquiries with the utmost speed and accuracy.
-
Page 3: Table Of Contents
English Index .Packaging and transportation....................6 1.1 Packaging........................1.2 Trasportation........................ 2.General information........................6 2.1 Important safety information..................2.2 Warranty conditions..................... 2.3 CE norms........................3. Product specifications......................7 3.1 Technical characteristics..................... 3.2 Dimensions......................... 3.3 Components........................ 4. Installation..........................8 4.1 Mechanical installation....................4.2 Safety connections...................... 5. Powering up..........................9 5.1 Mains cable characteristic................... -
Page 4: Packaging And Transportation
2.1. Important safety information Fire prevention: 1.Infinity Spot S utilises a Philips MSR GOLD 300 FastFit; the use of any alternative lamp is not recommended and will null and void the warranty of the fixture. 2.Never locate the fixture on any flammable surface. -
Page 5: Warranty Conditions
3.The warranty is immediately void if the projector has been operated or dismantled by unauthorised personnel. 4.The warranty does not extend to fixture replacement. 5.The serial number of the projector is required for any advice or service fro your authorised Coemar service centre. 2.3. CE norms The projector meets or exceeds all applicable CE requirements. -
Page 6: Components
4. Installation 4.1 Mechanical installation Infinity Spot S may be either floor or ceiling mounted. For floor mounting, the unit is provided with four rubber feet mounted on the its base allowing its top to be placed on a level surface. -
Page 7: Safety Connections
4.2 Safety connections If the Infinity Spot S is fixed to a structure, the use of a safety chain is recommended in order to meet the relevant safety standards. The safety chain should pass through the holes “E” located in the base of the fixture itself. -
Page 8: Control Signal Connection
(found on the panel near DMX connectors) to a generic Ethernet HUB by using a RJ45 patch. The HUB itself, must be connected to an ArtNet controller. Each Coemar Fixture has its own IP address, so it’s not needed to set it in order to include one fix- ture in your network. -
Page 9: Turning On The Projector
After having followed the preceding steps, turn on the projector via the main power switch. The display will show in sequence the software version installed on the onboard microprocessors . For example, upon turning on power, the Infinity Spot S may show: INFINITY SPOT S - S W L C D v e r . -
Page 10: Dmx Functions
English 7.2 DMX functions Note: factory default setting is 16 bit / 24 channels channel type of function effect decimal percentage control 16 bit 8 bit X axis, base movement proportional proportional coarse control of the base motor movement - 255 0% - 100% (pan) coarse X axis, base movement... - Page 11 English step no effect - 10 0% - indexing gobo rotation through 360° proportional proportional indexing of the gobos through 360° 11 - 255 4% - 100% fine indexing of the gobos 16 bit proportional fine indexing of the gobo - 255 0% - 100% step...
-
Page 12: Display Panel Functions
Date: 17/01/2009 8. Display panel functions The display panel of the Infinity Spot S shows all the functions available; it is possible to change some of those parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the device so that it may respond in different ways depen- ding on the controller, therefore carefully follow the instructions before carryng out any possible selection. -
Page 13: Main Functions
English 8.3. Main functions This section gives the opportunity to change and customize some functional settings of the fixture. MAIN FUNCTIONS It allows the complete management of the horizontal and vertical movements. PAN/TILT see diagram in the next page. It allows to choose an alternative colour insertion curve. CMY SETTINGS -STANDARD -SPECIAL... - Page 14 English The following diagram explains the sub menu for the management of pan and tilt, regarding the pan/tilt menu item described in the diagram at previous page. PAN/TILT -CLOCKWISE PAN/TILT PAN DIRECTION -COUNTERCLOCKWISE Inverts the horizontal beam direction, from left to right or vice-versa by the same DMX change.
-
Page 15: Measures
English 8.4 Measures The internal microprocessor of the Infinity Spot S allows for several diagnostic and output parameters to be displayed. MEASURES It shows the temperatures in the base of the fixture. TEMPERATURE Measures main power voltage of the fans; values over 28.5V must be VOLTAGE considerated as abnormal. -
Page 16: Display Setup
English 8.5 Display setup The Display setup allows to tune the Infinity Spot S functions according to your needs. The following diagram shows the section fea- tures. DISPLAY SETUP It allows 180° rotation of the display graphics in case of upside... -
Page 17: Special Mode And Electronic Motor Adjustment
The display panel of the Infinity Spot S allows for the electronic alignment of the projector motors in the optical system. This proce- dure is performed by Coemar at the factory. It may be useful to perform this procedure in order to obtain particular effects or in the case of internal components being replaced. -
Page 18: Lamp Installation And Alignment
English 9. lamp installation and alignment The Infinity Spot S utilises the Philips MSR GOLD 300/2 FastFit with PGJX28 base lamps. The use power is 300W. These lamps are available at your Coemar’s distributor or service centre.. Lamp Philips MSR Gold 300/2 Fast Fit... -
Page 19: Aligning The Lamp In The Optical Path
The combined regulation of the three adjusters allows horizontal, vertical and axial regulation of the lamp. 10. Operating on inside groups Infinity Spot S allows extraction of both gobos and colour changer assemblies in order to facilitate inspection, gobos replacing and cleanning of coloured filters and lens. -
Page 20: How To Extract The Gobos Assembly
English 10.2 How to extract the gobos assembly. 1-Remove “B” screws on the connector labelled “GOBOS” and gently remove the “C” connector. 2.Remove fixing screws of the gobos assembly and gently take it out. If the assembly refuses to exit, do not force it but rotate manually the gobo wheel until the assembly is free to exit. -
Page 21: How To Replace Gobos
English 10.4 How to replace gobos: 1.Lift and gently extract the support which contains the gobo you are going to replace from the gobos wheel. 2.Remove the spring that fixes the gobo to the support. 3.Insert the new gobo respecting the coated side. Locate the reference point on the gear and use it to orient the gobo and fix on to the projector. -
Page 22: Standard Fixed Gobos Wheel Configuration
English The gobos wheel only accepts gobos with the following features: External diameter 27mm. Working area diameter 21 mm Thickness: metal gobos from 0,2 to 0,5 mm, glass gobos up to 4 mm 10.5 Standard fixed gobos wheel configuration. -
Page 23: How To Replace Gobos On Gobos 2 Wheel
English 10.6 How to replace gobos on gobos 2 wheel. 1.Facing the front side of the wheel, gently hold the gobo you want to replace with thumb and finger, then lift it up pushing it with your finger, then remove it. 2.Insert the new gobos making it slip under the spring until it locks;... -
Page 24: Standard Colour Wheel Configuration
English 10.8 Standard color wheel configuration 1 mm 40 mm VT285/V 089 Moss green 10.9 How to replace filters 1.Facing the front side of the colour wheel, gently hold the filter you want to replace with thumb and finger, then put a little pressure down and extract the filter. -
Page 25: How To Replace Effects
12. Spare parts All the components of the Infinity Spot S are available as replacement spares from your authorised Coemar service centre. Accurate description of the fixture, model number, and type will assist us in providing for your requirements in an efficient and effective manner. -
Page 26: Error Messages
English 13. Error messages If you have to check a malfunction, Infinity Spot S has an auto-diagnostic system that visualises in the lower part of the display one or more intermittent messages, preceded by “ERR”. The following table will help you to understand these messages correctly. If the problem persists despite carryng out the suggested procedure, contact your Coemar Customer Service Centre. -
Page 27: Frequently Asked Questions
English 14. Frequently asked questions Question Possible cause Suggested solution The projector is completely still. Projector not powered up. Check that the mains power cable is connec- ted to power. The circuit breaker is switched off Set the circuit breaker to ON. The protection fuse is blown Disconnect the projector and replace the fuse. - Page 28 Coemar s.p.a. via Inghilterra 2/A - 46042 Castel Goffredo (Mantova) Italy ph. +39 0376/77521 - fax +39 0376/780657 info@coemar.com Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification...
