Summary of Contents for Coemar ReLite Led Kit HD +

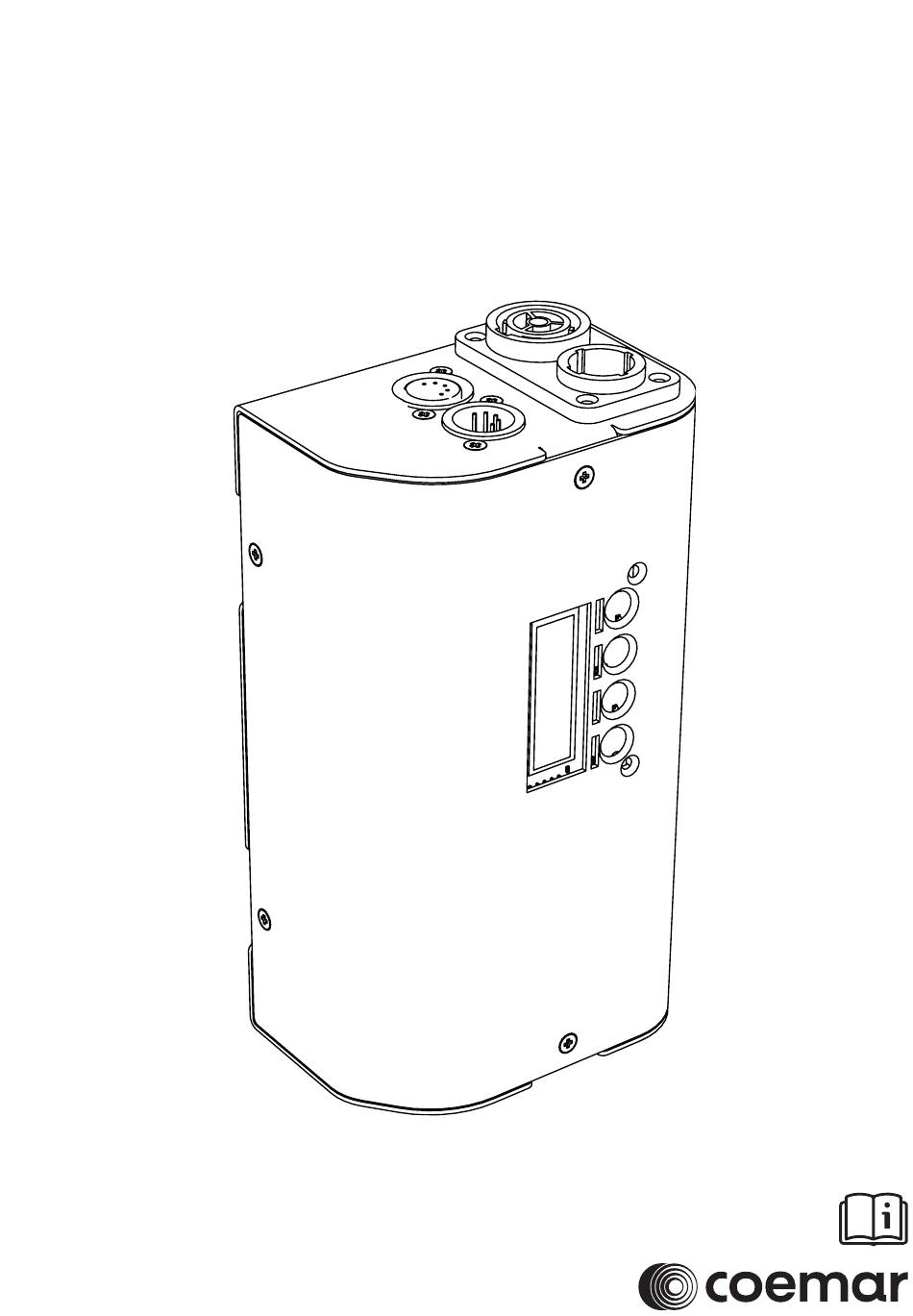

- Page 1 ReLite Led Kit HD + *The image is for the sole purpose of presenting the product USER MANUAL vrs. 1.5 - 20.06.2024...
- Page 2 Coemar ®. If you are downloading files from our web pages for your personal use, make sure to check for updated versions. Coemar ® cannot take any liability whatsoever for downloaded files, as technical data are subject to change without notice.
-
Page 3: Table Of Contents
9. DMX chart VariWhite Version ....................Pag. 13 9.1 DMX Chart 5 channels ......................Pag. 13 9.2 DMX Chart 2 and 1 channels ..................... Pag. 14 9.3 DMX Chart Sunrise mode ....................Pag. 14 9.4 DMX Chart Raw mode ......................Pag. 15 User Manual 2024 coemar.com... - Page 4 11. Spare parts ..........................Pag. 31 12. Maintenance ........................... Pag. 31 12.1 Periodic cleaning ........................ Pag. 31 12.2 Periodic controls ........................ Pag. 31 13. F.A.Q. and answers ......................... Pag. 31 14. Usage Warnings ........................Pag. 32 User Manual 2024 coemar.com...
-
Page 5: Packaging And Transportation
1. Presence of high voltage inside of the fixture. Insulate the fixture from mains supply before opening or performing any function which involves touching the inside of the fixture, including lamp replacement. 2. For the connection to the mains, adhere strictly to the guidelines outlined in this manual. User Manual 2024 coemar.com... -
Page 6: Warranty Conditions
Italiano 3. The level of technology of ReLite Led Kit HD + requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. -
Page 7: Product Specifications
G22 - GX9.5 - G38 - GY9.5 - GY16 - Custom IP rating Dimensions ReLite Led Kit HD + S 110 mm 190 mm 4.33 in 7.48 in ReLite Led Kit HD + M/L 124 mm 210 mm 4.88 in 8.26 in User Manual 2024 coemar.com... -
Page 8: Unit's Main Components
*The image is for the sole purpose of presenting the product **The LED group depends on the size/model of the fixture Components description A Display panel DMX In C DMX Out PowerCon TRUE1 Top In PowerCon TRUE1 Top Out User Manual 2024 coemar.com... -
Page 9: Installation
The ReLite Box can be fixed at the projector’s yoke through the fixing plates present on the box (A). Warning!! Always ensure that your support structure and fixing (bolts, clamps, etc…) are rated to support the weight of the fixture. User Manual 2024 coemar.com... -
Page 10: Powering Up
Ensure that the mains characteristics are within the recommended range for the use of ReLite Led Kit HD +. All connections should be carried out by a suitably qualified personnel. User Manual 2024 coemar.com... -
Page 11: Control Signal Connections
Pin#1 and housing must never be connected to the power supply unit. Power Unit The ReLite Led Kit HD + can be also used with a power unit that allows an absolute dimming control for your fixture. User Manual 2024 coemar.com... -
Page 12: Turning The Relite Led Kit Hd + On
The keys are locked Warning!! If you alter the DMX address with no DMX signal connected, the digits on the display panel will continue to flash even after you have pressed ENTER button to confirm the address. User Manual 2024 coemar.com... -
Page 13: Dmx Chart Fixed White Version
121 - 133 47% - 52% enables the automatic display blackout 134 - 185 53% - 73% step disables the automatic display blackout 186 - 199 73% - 78% no effect 200 - 255 78% - 100% User Manual 2024 coemar.com... -
Page 14: Dmx Chart Variwhite Version
121 - 133 47% - 52% enables the automatic display blackout 134 - 185 53% - 73% step disables the automatic display blackout 186 - 199 73% - 78% no effect 200 - 255 78% - 100% User Manual 2024 coemar.com... -
Page 15: Dmx Chart 2 And 1 Channels
134 - 185 53% - 73% step disables the automatic display blackout 186 - 199 73% - 78% no effect 200 - 255 78% - 100% Note 1: If channels 3 and 4 are used simultaneously, channel 4 prevails. User Manual 2024 coemar.com... -
Page 16: Dmx Chart Raw Mode
0 - 255 0% - 100% from 0 to 100% cold white led proportional cold white led fine control 16 bit 0 - 255 0% - 100% fine User Manual 2024 coemar.com... -
Page 17: Display Panel Functions
Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection. -
Page 18: Fixed White Version
MEASURES: measures Check all the measures and product status. FACTORY RESET: factory reset sure? Allows to return to the factory settings: Light Intensity: 80 DMX Channels: 5 Fan: Auto mode Strobe: 0 Frequency: 600 Hz User Manual 2024 coemar.com... - Page 19 SILENT: This setting will keep the speed of the fan at the minimum level (moderately limited light output, will decrease in case of overheat) ideal for environments that require maximum silence. User Manual 2024 coemar.com...
-
Page 20: Display
It is possible to choose between “maintain” maintain (this function allows BLACKOUT to keep the settings in case of STARTUP) and “blackout” (in case of STARTUP, the projector will go into blackout). DISPLAY: Display Display settings. User Manual 2024 coemar.com... - Page 21 BRIGHTNESS DISPLAY: brightness display Allows to change the brightness of the display (from 0 to 10). BRIGHTNESS KEY: brightness key Allows to change the brightness of the key (from 0 to 10). User Manual 2024 coemar.com...
-
Page 22: Measures
DMX REFRESH RATE: dmx refresh rate Shows the refresh rate of the DMX signal sent by 0 hz the console. FAN STATUS: FAN STATUS Shows the percentage fan usage. LED: AUX: User Manual 2024 coemar.com... - Page 23 ALARM: alarm This menu eventually shows the alarm statuses if there is any. FIRMWARE VERSION: fw version Shows the firmware 1 bl9-0 version currently v0.052-0c08 installed in the fixture (as you can see in the example). User Manual 2024 coemar.com...
-
Page 24: Variwhite Version
2.700 K 2900 k and up to 6.500 K, manually selectable without the need of 3000 k a DMX console. 3100 k 3200 k 3300 k 3400 k 3500 k 3600 k 6500 k User Manual 2024 coemar.com... -
Page 25: Settings
MEASURES: measures Check all the measures and product status. FACTORY RESET: factory reset Allows to return to sure? the factory settings: Light Intensity: 80 CCT: 4.400 K DMX Channels: 5 Fan: Auto mode Strobe: 0 User Manual 2024 coemar.com... - Page 26 SILENT: This setting will keep the speed of the fan at the minimum level (moderately limited light output, will decrease in case of overheat) ideal for environments that require maximum silence. User Manual 2024 coemar.com...
-
Page 27: Display
It is possible to choose between “maintain” maintain (this function allows BLACKOUT to keep the settings in case of STARTUP) and “blackout” (in case of STARTUP, the projector will go into blackout). DISPLAY: Display Display settings. User Manual 2024 coemar.com... - Page 28 BRIGHTNESS brightness display DISPLAY: Allows to change the brightness of the display (from 0 to 10). BRIGHTNESS KEY: brightness key Allows to change the brightness of the key (from 0 to 10). User Manual 2024 coemar.com...
-
Page 29: Measures
5) that the fixture occupies on the line. DMX REFRESH RATE: dmx refresh rate Shows the refresh rate of the DMX 0 hz signal sent by the console. FAN STATUS: FAN STATUS Shows the percentage fan usage. LED: AUX: User Manual 2024 coemar.com... - Page 30 This menu eventually shows NO ALARMS the alarm statuses if there is any. FIRMWARE VERSION: Shows the firmware fw version version currently installed in the fixture 1000000 BL9-0 (as you can see in the v0.052-0E07 example). User Manual 2024 coemar.com...
-
Page 31: Special Functions Of The Fixture
If a malfunction occurs, ReLite Led Kit HD + has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center. -
Page 32: Spare Parts
Italiano Spare parts All ReLite Led Kit HD +’s spare parts are available from your Coemar service centers. Speci- fying in detail the projector model and the replacement part requested, will help the service center to serve you in the best way. - Page 33 Italiano User notes ............................................................................................................................................................................................................................................................................................................................................................................................User Manual 2024 coemar.com...
- Page 34 / or recycling of materials making up the equipment. Illegal disposal by the user includes the application of administrative sanctions provided by law. User Manual 2024 coemar.com...
- Page 35 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
