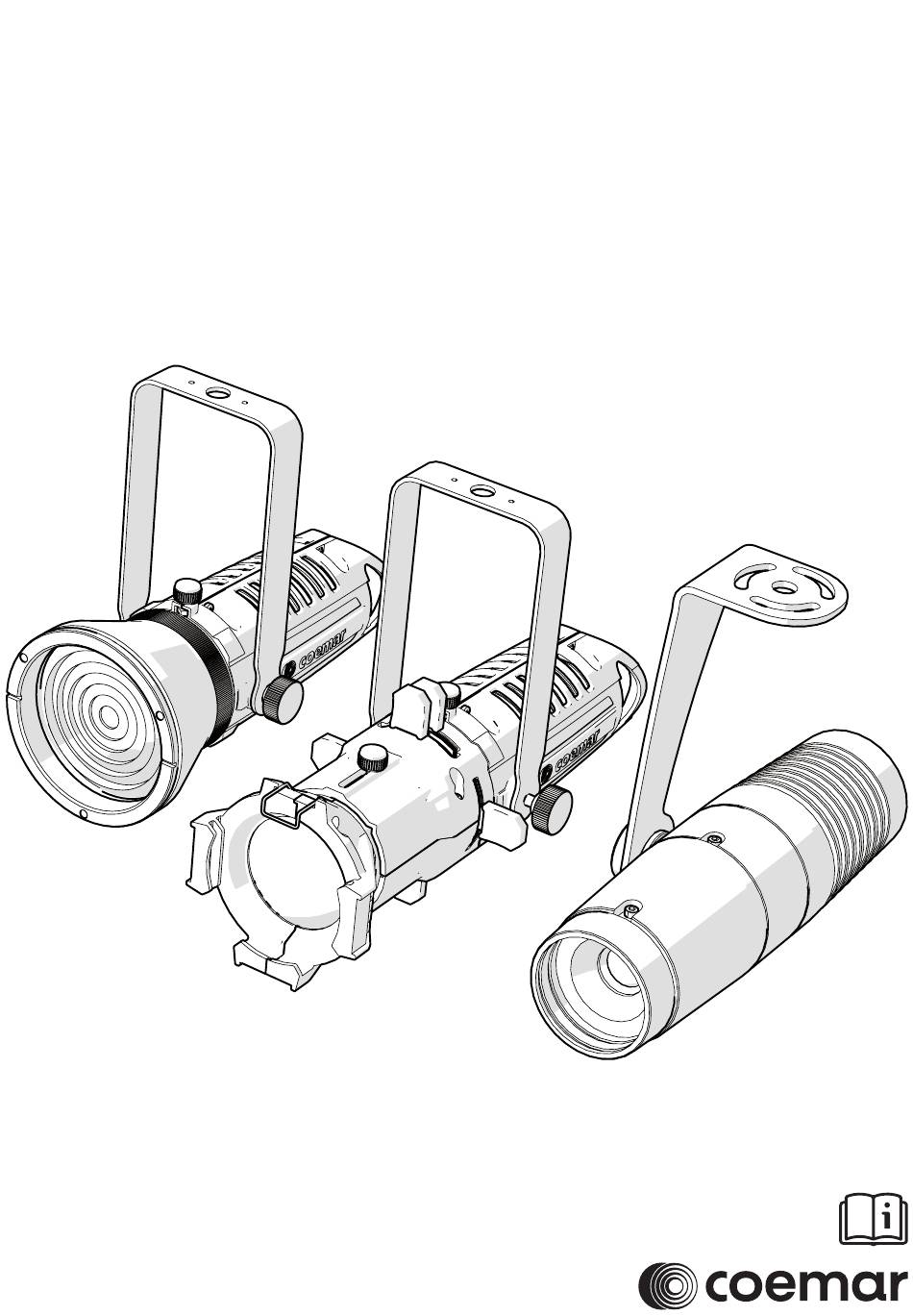

- Page 1 MiniLEDko Family PROVISIONAL USER MANUAL vrs. 1.3 - 10.11.2023...
- Page 2 Coemar ®. If you are downloading files from our web pages for your personal use, make sure to check for updated versions. Coemar ® cannot take any liability whatsoever for downloaded files, as technical data are subject to change without notice.
-
Page 3: Table Of Contents
5.4 How to insert a gobo into the MiniLEDko Profile............... Pag. 29 6. MiniLEDko Fresnel optical adjustments.................. Pag. 31 6.1 Adjusting unit’s tilt ........................ Pag. 31 6.2 How to adjust the MiniLEDko Fresnel’s Zoom..............Pag. 32 User Manual 2023 coemar.com... - Page 4 13.2 MiniLEDko Fresnel ......................Pag. 55 13.3 MiniLEDko Spot ......................... Pag. 56 14. Maintenance..........................Pag. 57 14.1 Firmware update......................... Pag. 57 14.2 Periodic cleaning....................... Pag. 57 14.3 Periodic controls........................ Pag. 57 15. F.A.Q. and answers........................Pag. 58 User Manual 2023 coemar.com...
-
Page 5: Packaging And Transportation
1. Presence of high voltage inside of the fixture. Insulate the projector from mains supply before opening or performing any function which involves touching the inside of the fixture, including LED replacement. 2. For the connection to the mains, adhere strictly to the guidelines outlined in this manual. User Manual 2023 coemar.com... -
Page 6: Warranty Conditions
3. The level of technology of MiniLEDko requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. -
Page 7: Product Specifications
IP65 Fresnel F115 Silver Track (MiniLEDko DMX Control (CRI>95) Spot only) Image Vari F116 G White 2 Portable C DALI Control projector White Bluetooth App Custom X Canopy D Control On Board Potentiometer Control On-Off Control User Manual 2023 coemar.com... -
Page 8: Dimensions - Miniledko Profile With Lens Tube
Ø 122 mm Ø 122 mm 4.80 in 4.80 in 76 mm 76 mm 2.99 in 2.99 in 131 mm 131 mm 250 mm 250 mm 5.16 in 9.84 in 5.16 in 9.84 in Canopy version User Manual 2023 coemar.com... - Page 9 93 mm 3.66 in 3.66 in 76 mm 76 mm 2.99 in 2.99 in 131 mm 250 mm 131 mm 250 mm 5.16 in 9.84 in 5.16 in 9.84 in Portable version *Hook with M8 Thread User Manual 2023 coemar.com...
-
Page 10: Dimensions - Miniledko Profile With Profile Zoom
Ø 122 mm Ø 122 mm 76 mm 76 mm 4.80 in 4.80 in 2.99 in 2.99 in 280 mm 131 mm 280 mm 131 mm 11.02 in 5.16 in 5.16 in 11.02 in Canopy version User Manual 2023 coemar.com... - Page 11 207 mm 76 mm 207 mm 2.99 in 2.99 in 8.15 in 8.15 in 280 mm 131 mm 280 mm 131 mm 11.02 in 11.02 in 5.16 in 5.16 in Portable version *Hook with M8 Thread User Manual 2023 coemar.com...
-
Page 12: Dimensions - Miniledko Fresnel
2.99 in 2.99 in 7.48 in 7.48 in 200 mm 200 mm 7.87 in 7.87 in Track version with potentiometer on-board Ø 122 mm 4.80 in 76 mm 2.99 in 200 mm 7.87 in Canopy version User Manual 2023 coemar.com... - Page 13 93 mm 3.66 in 76 mm 2.99 in 200 mm 7.87 in Portable version *Hook with M8 Thread User Manual 2023 coemar.com...
-
Page 14: Dimensions - Miniledko Fresnel With 4-Leaf Barndoor
Dimensions - MiniLEDko Fresnel with 4-leaf Barndoor 76 mm 190 mm 2.99 in 7.48 in 289 mm 11.37 in Ø 122 mm Track version with potentiometer on-board 4.80 in 76 mm 2.99 in 289 mm Canopy version 11.4 in User Manual 2023 coemar.com... - Page 15 93 mm 3.66 in 76 mm 2.99 in 289 mm 11.37 in Portable version *Hook with M8 Thread User Manual 2023 coemar.com...
-
Page 16: Dimensions - Miniledko Spot
Dimensions - MiniLEDko Spot 187 mm 7.36 in 47.5 mm 212.5 mm 1.87 in 8.37 in Track version with potentiometer on-board Ø 122 mm 4.80 in 47.5 mm 212.5 mm 1.87 in 8.37 in Canopy version User Manual 2023 coemar.com... - Page 17 93 mm 3.66 in 212.5 mm 47.5 mm 8.37 in 1.87 in Portable version *Hook with M8 Thread 151 mm 151 mm 151 mm 5. 5.94 in 94 in 5.94 in 500 mm 19.69 in User Manual 2023 coemar.com...
-
Page 18: Unit's Main Components - Miniledko Profile
Unit’s main components - MiniLEDko Profile Components description A Adjustable yoke Yoke adjusting screws Profile blade Lens (interchangeable) Lens knob User Manual 2023 coemar.com... -
Page 19: Unit's Main Components - Miniledko Fresnel
Unit’s main components - MiniLEDko Fresnel Components description A Adjustable yoke Yoke adjusting screws Fresnel Lens Optic Knob User Manual 2023 coemar.com... -
Page 20: Unit's Main Components - Miniledko Spot
3.10 Unit’s main components - MiniLEDko Spot Components description A Adjustable yoke Lens (interchangeable) C Yoke adjusting screws Lens knob User Manual 2023 coemar.com... -
Page 21: Installation
Control System 9000-.../...-R PRO-06X0, 064000 3 Circuits DALI track Powergear PRO-R6x0, R6400 3-phase + SIGNAL system x=1, 2, 3 575 2 1101 575 2 1102 Eutrac One Track 3-phase + SIGNAL 575 2 1103 575 2 1104 User Manual 2023 coemar.com... -
Page 22: On/Off, On Board Potentiometer, Bluetooth App Versions - Table B
• Do not mount the luminaire on or near a flammable surface. • Check that the accessory holder is locked before mounting the luminaire. • Do not use this luminaire if a lens is deeply scratched or cracked. You must replace a lens when it is damaged. User Manual 2023 coemar.com... -
Page 23: Track-Mount Version Installation
3. Use the circuit selection lock to select the circuit. The desired circuit number should point toward the center of the adapter Locking mechanism Circuit selection lock (on the back side of the Power Box) (on the front side of the Power Box) User Manual 2023 coemar.com... -
Page 24: Integrated Driver Track-Mount Version Installation
“0” or disconnect from the power plug. WARNING: When using the circuit selection lock, ensure that the selected circuit is a constant power circuit. Dialing into a dimmable circuit may cause luminaire damage that will void the COEMAR warranty. User Manual 2023 coemar.com... -
Page 25: Portable Version Installation
Note: use an M8 screw to fix the clamp to the MiniLEDko’s Power Box WARNING: Always ensure that your support structure and fixing (bolts, clamps, etc…) are rated A to support the weight of the fixture. User Manual 2023 coemar.com... -
Page 26: Canopy Version Installation
In order to mount a MiniLEDko Canopy version, follow the drawing below by attaching first the metal plate “B” at the ceiling by using two screws “C” and then use the two screws “D” to fix the projector to the metal plate. User Manual 2023 coemar.com... -
Page 27: Miniledko Profile Optical Adjustments
. MiniLEDko Profile optical adjustments Adjusting MiniLEDko Profile and Fresnel’s tilt In order to adjust the tilt of MiniLEDko Profile and Fresnel simply loose the side knob “A”, adjust the tilt and lock the yoke by tightening the screws again. User Manual 2023 coemar.com... -
Page 28: How To Adjust The Miniledko Profile's Focus
How to shape the MiniLEDko Profile’s Beam with Shutters The luminaire has four shutters: left, right, top, and bottom. Each shutter can be pulled out or pushed in to create the desired beam shape. User Manual 2023 coemar.com... -
Page 29: How To Insert A Gobo Into The Miniledko Profile
2. Insert the gobo and place back the metal plate. 3. In order to prevent the fallen of the gobo apply a force on the back locking tab "I" by using a screwdriver. User Manual 2023 coemar.com... - Page 30 4. Once the closing tube for optical unit is removed and the gobo is inserted, mount the gobo holder into the MiniLEDko Profile slot. User Manual 2023 coemar.com...
-
Page 31: Miniledko Fresnel Optical Adjustments
. MiniLEDko Fresnel optical adjustments Adjusting unit’s tilt In order to adjust the tilt of the unit simply loose the side screws “A”, adjust the tilt and lock the yoke by tightening the screws again. User Manual 2023 coemar.com... -
Page 32: How To Adjust The Miniledko Fresnel's Zoom
How to adjust the MiniLEDko Fresnel’s Zoom In order to adjust the zoom loosen the knob “B” turn the optical group until you will obtain the zoom desired, then tighten the knob. User Manual 2023 coemar.com... -
Page 33: Miniledko Spot Optical Adjustments
In order to adjust the tilt of the unit simply loose the side screws “A”, adjust the tilt and lock the yoke by tightening the screws again. How to adjust the focus In order to adjust the focus turn the lens “B” until you will have reached the focus desired. User Manual 2023 coemar.com... -
Page 34: How To Mount The Gobo
How to mount the gobo 1. To change the gobo unscrew the screw “C” and pull the optical lens tube “D”. BC016A010) 2. Unscrew the gobo stopper “E” by using the included metal key “F” ( User Manual 2023 coemar.com... - Page 35 N.B. the gobo must comply with the following measures, otherwise MiniLEDko Spot may not work properly: Gobo outside diameter= 26 mm / 1.02 in Max image diameter= 22 mm / 0.86 in Max Gobo thickness= 2mm / 0.08 in (glass gobo) User Manual 2023 coemar.com...
-
Page 36: How To Change The Optic
1. To change the optic unscrew the screw “I” and the screw underneath the front barrel “J”. 2. Now the optic will come off, chose the optic that you want to use and insert it into the barrel. User Manual 2023 coemar.com... - Page 37 • Two different front barrels are available, the optics 12° (BC016A000) and 19° (BC016A001) will match the front barrel coded BC016A100, the optic 21° (BC016A002) will match the front barrel coded BC016A110. User Manual 2023 coemar.com...
-
Page 38: Dmx Connection
WARNING! With tracks comply with DMX/RDM protocol, use termination resistor DMX - DMX + * the shielded cable will remain disconnected 30.7 mm 250V max: 1 Nm 10-11 130-140 DATA DATA 9001/... 440V 250V DMX+ DMX+ DMX- DMX- 9002/... 9001/... DMX+ DMX- 10-11 DMX- DMX+ User Manual 2023 coemar.com... -
Page 39: Setup Via Rdm
Set Lock Pin LOCK STATE Set Screen Lock FACTORY DEFAULT Factory Reset Set Personality: 5/1 Ch (Fixed White version) 5/2/1/Sunrise/Raw (VariWhite PERSONALITY version) SENSOR Visualize Sensor LED HOURS Visualize Led Life Hours DEVICE HOURS Visualize Device Life Hours User Manual 2023 coemar.com... -
Page 40: Rdm Error Chart
RDM Error Chart ERROR DESCRIPTION SOLUTION MEMORY Memory Reading Error Perform A “Factory Reset” HW MEMORY Memory Hardware Error Contact Coemar The Personality Dimension Exceeds DMX ADDR DMX Addressing Error 512 Channels Temperature Sensor NTC ERROR Check Wiring NTC Led Disconnected... -
Page 41: Dmx Chart - Fixed White Version
DMX chart - Fixed White version 10.1 DMX modes channels ↓ channels channel Master Dimmer Master Dimmer Spare Channel Dimmer Fine Strobe Special Function User Manual 2023 coemar.com... -
Page 42: Dmx Chart 5/1 Channels
206 - 211 81% - 83% LED control frequency tuning 5.000 Hz 212 - 217 83% - 85% no effect 218 - 240 85% LED control frequency tuning 20.000 Hz 241 - 255 95% - 100% User Manual 2023 coemar.com... -
Page 43: Dmx Chart - Variwhite Version
Tone Fine Led Fine Tone Fine White Proportional Cold White Tone White Tone White Led Tone White Strobe Step White Cold White Temperature Effect Tone Led Fine Fine Special Special Strobe Function Function Effect Special Function User Manual 2023 coemar.com... -
Page 44: Dmx Chart 5 Channels
206 - 211 81% - 83% LED control frequency tuning 5.000 Hz 212 - 217 83% - 85% no effect 218 - 240 85% LED control frequency tuning 20.000 Hz 241 - 255 95% - 100% User Manual 2023 coemar.com... -
Page 45: Dmx Chart 2 / 1 Channels
212 - 217 83% - 85% no effect 218 - 240 85% LED control frequency tuning 20.000 Hz 241 - 255 95% - 100% Note 1: If channels 3 and 4 are used simultaneously, channel 4 prevails. User Manual 2023 coemar.com... -
Page 46: Dmx Chart Raw Mode
- 255 0% - 100% from 0 to 100% cold white proportional cold white led fine control 16 bit - 255 0% - 100% led fine User Manual 2023 coemar.com... -
Page 47: Dmx Chart 2 Channels (Mk1)
221 - 226 87% - 89% 6300 K 227 - 232 89% - 91% 6400 K 233 - 238 91% - 93% 6500 K 239 - 244 94% - 96% 5600 K 245 - 255 96% - 100% User Manual 2023 coemar.com... -
Page 48: Dmx Chart 6 Channels
221 - 226 87% - 89% 6300 K 227 - 232 89% - 6400 K 233 - 238 91% - 93% 6500 K 239 - 244 94% - 96% 5600 K 245 - 255 96% - 100% User Manual 2023 coemar.com... - Page 49 LED control frequency tuning 5.000 Hz 212 - 217 83% - 85% no effect 218 - 240 85% LED control frequency tuning 20.000 Hz 241 - 255 95% - 100% Note 1: SPECIAL FUNCTIONS channel is not compatible with MK1 VERSION User Manual 2023 coemar.com...
-
Page 50: Connect And Use A Miniledko Via Bluetooth
Name the Network Mode”. as you please. Now decide if you Select the menu want to protect with three dashes your projectors, in the upper left. by using a password and to do this, flip the switch. User Manual 2023 coemar.com... - Page 51 At this point the projector will start to flash), then click on ADD COEMAR LAMP (here will appear the name of your network instead of COEMAR). User Manual 2023 coemar.com...
- Page 52 To manage the Here you will see operation of the the list of products products click connected so far. on the menu consisting of three dashes in the upper left and select “Your Network”. User Manual 2023 coemar.com...
- Page 53 (this will start to flash) and then of three dashes in the upper left click on REMOVE and select “Scan COEMAR LAMP devices”. (here will appear the name of your network instead of COEMAR). User Manual 2023 coemar.com...
- Page 54 Once completed, the app automatically returns to the “Scan devices” section. On the screen you can see the devices you have disconnected, marked with the red icon). User Manual 2023 coemar.com...
-
Page 55: Accessories And Spare Parts
Honeycomb - 4 mm / 0.16 in BC013A015 Honeycomb - 6 mm / 0.23 in BC013A016 Color Frame holder BC013A006 Track adaptor for surface or clamp fixing BC015A300 (for track version T/D - clamp not included) User Manual 2023 coemar.com... -
Page 56: Miniledko Spot
(for track version T/D - clamp not included) All the components of MiniLEDko Profile are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner. -
Page 57: Maintenance
. Maintenance 14.1 Firmware update The firmware of MiniLEDko can be updates through the RDM protocol (ANSI E1.20). Contact Coemar assistance to receive the software and the device updater (AC10011A000). 14.2 Periodic cleaning Lenses Even a thin layer of dust can reduce the luminous output and alter the consistency of the beam. -
Page 58: F.a.q. And Answers
• Check DMX address of the unit. Help from Coemar Technical Services If you are having difficulties and your problem is not addressed by this document, contact Coemar Technical Services directly at one of this email address: info@coemar.com / service@coemar.com... - Page 59 User notes ............................................................................................................................................................................................................................................................................................................................................................................................................................... User Manual 2023 coemar.com...
- Page 60 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 61 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
