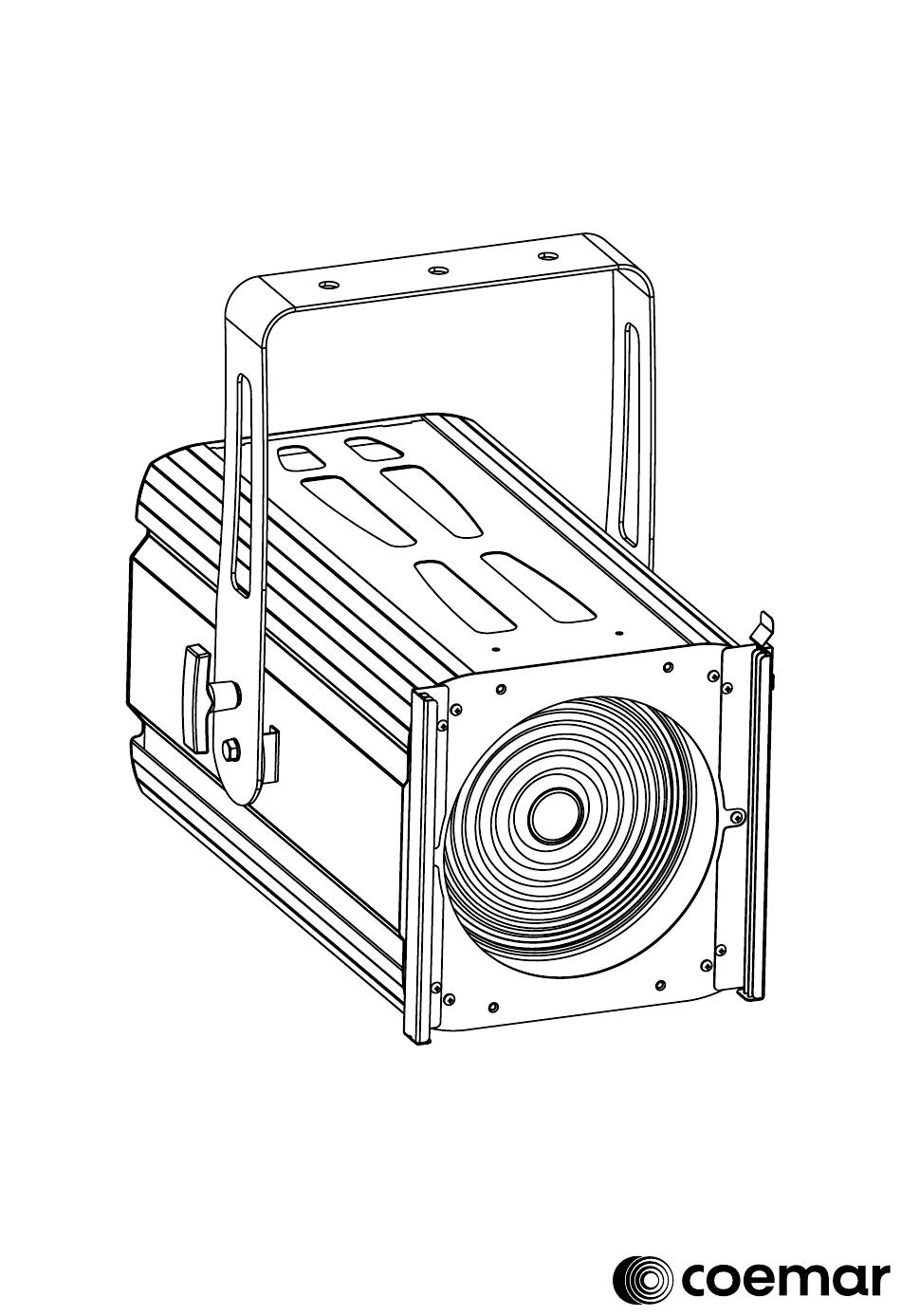

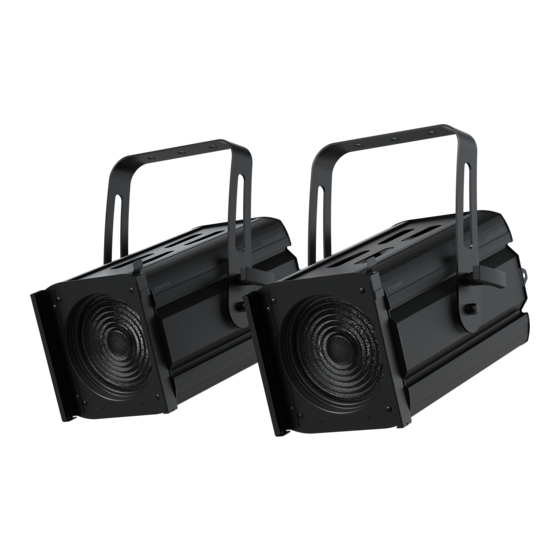

  • Page 1 Risalto Led + USER MANUAL vrs. 1.0 - 30.03.2023...
  • Page 2 Coemar ®. If you are downloading files from our web pages for your personal use, make sure to check for updated versions. Coemar ® cannot take any liability whatsoever for downloaded files, as technical data are subject to change without notice.

  • Page 3: Table Of Contents

    Index 1. Packaging and transportation .......................Pag. 5 1.1 Packaging ............................Pag. 5 1.2 Transportation ..........................Pag. 5 2. General information ........................Pag. 5 2.1 Safety informations ........................Pag. 5 2.2 Warranty conditions ........................ Pag. 6 2.3 EC norms ........................... Pag. 6 3. Product specifications ........................Pag. 7 3.1 Technical characteristics - Risalto Fixed White ..............Pag.
  • Page 4 11.2 Rapid count ..........................Pag. 25 11.3 Potentiometer Knob ......................Pag. 25 11.4 Main functions menu (Fixed White Version) ..............Pag. 26 11.5 Settings ........................... Pag. 27 11.6 Display ............................ Pag. 30 11.7 Measures ..........................Pag. 31 11.8 Main functions menu (VariWhite Version) ................ Pag. 33 11.9 Settings ..........................

  • Page 5: Packaging And Transportation

    Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation).

  • Page 6: Warranty Conditions

    The level of technology of Risalto Led + requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. A good earth connection is essential for the proper functioning of the projector. Never connect the fixture if there is no earth connection.

  • Page 7: Product Specifications

    Product specifications Technical characteristics - Risalto Fixed White Power supply 90-264 V, auto-sensing, 50-60 Hz 0.46 A at 230 V, 0.92 A at 115 V (S Version) Maximum current 0.92 A at 230 V, 1.83 A at 115 V (M Version) Power factor Cosφ...

  • Page 8: Projector Dimensions And Components

    Projector dimensions and components Risalto Led S 251 mm 9.88 in 308 mm 12.13 in 350 mm 13.78 in Weight: 5.5 Kg / 12.13 lbs Risalto Led M 281 mm 11.06 in 413 mm 16.26 in 413 mm 16.26 in Weight: 8.5 Kg / 18.74 lbs (M Version)

  • Page 9: Unit's Main Components (Fresnel Version)

    Unit’s main components (Fresnel Version) Components description A Adjustable yoke Yoke locking handle Color frame locking spring Color frame holder Fresnel Lens...

  • Page 10: Unit's Main Components (Pc Version)

    Unit’s main components (PC Version) Components description A Adjustable yoke Yoke locking handle Color frame locking spring Color frame holder PC Lens...

  • Page 11: Back Panel Description

    Back panel description Display Intensity / Selector Antenna* Menu button Plus button Enter button Minus button DMX In DMX Out PowerCon True1 PowerCon True1 Zoom Knob * Only Wireless Version...

  • Page 12: Installation

    . Installation Mechanical installation Risalto Led + may be hung from an appropriate structure in any position or on tripod. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the following diagram. Warning!! Always ensure that your support structure and fixing (bolts, clamps, etc…) are rated to...

  • Page 13: Positioning And Light Beam Adjusting

    Positioning and light beam adjusting We recommend to remove the filter frame and to lower power supply (by a dimmer device) during light beam adjusting in order to avoid overheating of the projector. In order to perform width beam adjusting, loose and tight the zoom knob sited on the back panel of the fixture.

  • Page 14: Powering Up

    Note: in case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3 X 1,5 ø external 10 mm, rated 300/500V, tested to 2 KV, op- erating temperature -40°C + 180°C, Coemar cod. CV5311). Connection to mains power Risalto Led + equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 V) or 4 (115 V) fixtures.
  • Page 15 Warning!! • The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regulatory norms is strongly recommended. • Risalto Led + should not be powered through a dimmer as this may damage the internal switching power supply. • Prior to connecting the device to mains power, ensure that the mains characteristics are within the recommended range for the use of Risalto Led + .

  • Page 16: Control Signal Connections

    . Control signal connections Control signal connection by XLR5 plugs The digital control signal is transmitted to the projector via a two pole cable screened in according to the International standards for DMX 512 data transmission. The connection must be serial, using connectors XLR5 male and female located on the back of Risalto Led + labelled DMX512 IN e OUT.

  • Page 17: Turning The Projector On

    . Turning the projector on After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power. The software version installed on the internal microprocessors will be shown on the display, suddenly it will show the current DMX addressing.

  • Page 18: Dmx Chart (Fixed White Versions)

    . DMX chart (Fixed White Version) DMX Chart 5, 1 channels type of channel function effect decimal percentage control adjust luminous output master dimmer proportional 0 - 255 0% - 100% intensity from 0 to 100% spare channel step no effect 0 - 255 0% - 100% dimmer fine proportional...

  • Page 19: Dmx Chart (Variwhite Version)

    . DMX chart (VariWhite Version) 10.1 DMX modes Sunrise 2 (MK1) channels channels channel mode mode channels channels channels ↓ Master Master Master Master Warm Master Master Dimmer Dimmer Dimmer Dimmer White Led Dimmer Dimmer Dimmer White Dimmer Warm White White Dimmer Fine...

  • Page 20: Dmx Chart 5 Channels

    10.1 Chart 5 channels type channel function effect decimal percentage of control adjust luminous output intensity from 0 to master dimmer proportional 0 - 255 0% - 100% 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100% step 2.800 K 0 - 6...

  • Page 21: Dmx Chart 2, 1 Channels

    10.2 DMX Chart 2, 1 channels channel type function effect decimal percentage of control adjust luminous output intensity from 0 to master dimmer proportional 0 - 255 0% - 100% 100% white tone proportional proportional value from 2.800 K to 6.500 K 0 - 255 0% - 100% 10.3 DMX Chart Sunrise mode...

  • Page 22: Dmx Chart Raw Mode

    10.4 DMX Chart Raw mode type channel function effect decimal percentage of control adjust luminous output intensity of warm warm white led proportional 0 - 255 0% - 100% white led from 0 to 100% warm white led proportional warm white led fine control 16 bit 0 - 255 0% - 100% fine adjust luminous output intensity of cold...

  • Page 23: Dmx Chart 2 Channels (Mk1)

    10.5 DMX Chart 2 channels (MK1) type of channel function effect decimal percentage control adjust luminous output intensity master dimmer proportional 0 - 255 0% - 100% from 0 to 100% 3200 K 0 - 10 0% - 4% 2700 K 11 - 16 4% - 6% 2800 K...

  • Page 24: Dmx Chart 6 Channels

    10.6 DMX Chart 6 channels channel function type of control effect decimal percentage master adjust luminous output proportional 0 - 255 0% - 100% dimmer intensity from 0 to 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100% 3200 K 0 - 10 0% -...
  • Page 25 step no effect fine white temperature control proportional (from temperature selected to - 126 - 49% the previous step) white temperature step no effect 127 - 128 50% - 50% fine fine white temperature control proportional (from temperature selected 129 - 254 51% - 99% to the following step) step no effect...

  • Page 26: Display Panel Functions

    Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection.

  • Page 27: Main Functions Menu (Fixed White Version)

    Fixed White Version 11.4 Main functions menu INTENSITY: intensity Allows to adjust the luminous output intensity from 0 to 255 (d: decimal units). STROBE: strobe Manually sets the strobe DMX channel. SETTINGS: settings Manually sets various settings of the projector (section 11.5 Settings).

  • Page 28: Settings

    11.5 Settings DIMMING CURVE: dimming curve exponential It allows the selection of different dimmer curves: exponential exponential (default), halogen halogen, standard, linear and logarithmic. standard linear logarithmic SMOOTH: smooth Allows to change the speed of every dimming Slow curve between FAST (standard), SLOW, VERY SLOW.
  • Page 29 FREQUENCY: frequency 600 Hz Shows the operating frequency of the LED 600 Hz 1500 hz (600 Hz as default). 2000 hz 5000 hz 20000 hz PERSONALITIES: PERSONALITIES 5 CH It is possible to choose between 5 channels or 5 CH 1 channel, in which the 1 CH projector will operate.
  • Page 30 DISPLAY: Display Display settings (section 11.6 Display) WIFI: wifi Wi-Fi settings (section 12 Wifi menu - optional)

  • Page 31: Display

    11.6 Display REVERSE: reverse It allows to turn by 180° the reading of the display. When you chose “ON” wait the turn of the display without clicking. AUTO LOCK: AUTO LOCK Locks the keys. OFF: Auto Lock function in OFF HOLD HOLD: Press any key for 3 seconds to unlock.

  • Page 32: Measures

    11.7 Measures TEMPERATURES: TEMPERATURES Shows the current temperature values of the ° F MIN NOW MAX fixture. LED: -°C -°C -°C LED: shows the LED module temperature. BOARD: -°C -°C -°C BOARD: shows the electronic board temperature. TEMPERATURES TEMP histories HISTORIES: °...
  • Page 33 LED STATUS: led status w: -% Shows the percentage c: -% value of the LED status. LED PROTECTION: led protection Percentage of the maximum power in order to keep the projector in temperature. PSU VOLTAGE: psu voltage Shows the power supply voltage.

  • Page 34: Main Functions Menu (Variwhite Version)

    VariWhite Version 11.8 Main functions menu INTENSITY: intensity Allows to adjust the luminous output intensity from 0 to 255 (d: decimal units). CCT: 2800 k This channel offers a preset library of various 2800 k white CCT with a range 2900 k that goes from 2.800 K and up to 6.500 K,...
  • Page 35 STROBE: strobe Manually sets the strobe DMX channel. SETTINGS: settings Manually sets various settings of the projector (section 11.9 Settings). MEASURES: measures Check all the measures and product status (section 11.11 Measures). FACTORY RESET: factory reset Allows to return to the sure? factory settings: Light Intensity: 80...

  • Page 36: Settings

    11.9 Settings DIMMING CURVE: dimming curve exponential It allows the selection of different dimmer curves: exponential exponential (default), halogen halogen, standard, linear and logarithmic. standard linear logarithmic SMOOTH: smooth Allows to change the speed of every dimming Slow curve between FAST (standard), SLOW, VERY SLOW.
  • Page 37 FREQUENCY: frequency 600 Hz Shows the operating 600 Hz frequency of the LED 1500 hz (600 Hz as default). 2000 hz 5000 hz 20000 hz PERSONALITIES: PERSONALITIES 5 CH It is possible to choose 5 CH between 5, SUNRISE, RAW, 1, 2, MK1 or 6 SUNRISE Channels modalities, in which the projector will...
  • Page 38 DISPLAY: Display Display settings (section 11.10 Display) WIFI: wifi Wi-Fi settings (section 12 Wifi menu - optional)

  • Page 39: Display

    11.10 Display REVERSE: reverse It allows to turn by 180° the reading of the display. When you chose “ON” wait the turn of the display without clicking. AUTO LOCK: AUTO LOCK Locks the keys. OFF: Auto Lock function in OFF HOLD HOLD: Press any key for 3 seconds to unlock.

  • Page 40: Measures

    11.11 Measures TEMPERATURES: TEMPERATURES Shows the current temperature values of the ° F MIN NOW MAX fixture. LED: -°C -°C -°C LED: shows the LED module temperature. BOARD: -°C -°C -°C BOARD: shows the electronic board temperature. TEMPERATURES TEMP histories HISTORIES: °...
  • Page 41 LED STATUS: led status w: -% Shows the percentage c: -% value of the LED status. LED PROTECTION: led protection Percentage of the maximum power in order to keep the projector in temperature. PSU VOLTAGE: psu voltage Shows the power supply voltage.

  • Page 42: Wi-Fi Menu (Optional)

    . Wi-Fi Menu (OPTIONAL) 12.1 Wi-Fi WIFI ENABLE: WIFI ENABLE It allows enable all the Wi- Fi functions WIFI UNLINK: WIFI unlink sure? This function is used to disconnect the projector from the transmitter.

  • Page 43: Special Function And Error Messages

    If a malfunction occurs, Risalto Led + has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center. Error code...

  • Page 44: Maintenance

    . Maintenance 14.1 Firmware update The firmware of Risalto Led + can be updated through the RDM protocol (ANSI E1.20). Contact Coemar assistance to receive the software and the device updater. 14.2 Periodic cleaning Lenses Even a thin layer of dust can reduce the luminous output and alter the consistency of the beam.

  • Page 45: And Answers

    . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: •...
  • Page 46 User notes ...................................................................................................................................................................................................................................................................................................................................................................................
  • Page 47 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 48 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice.
