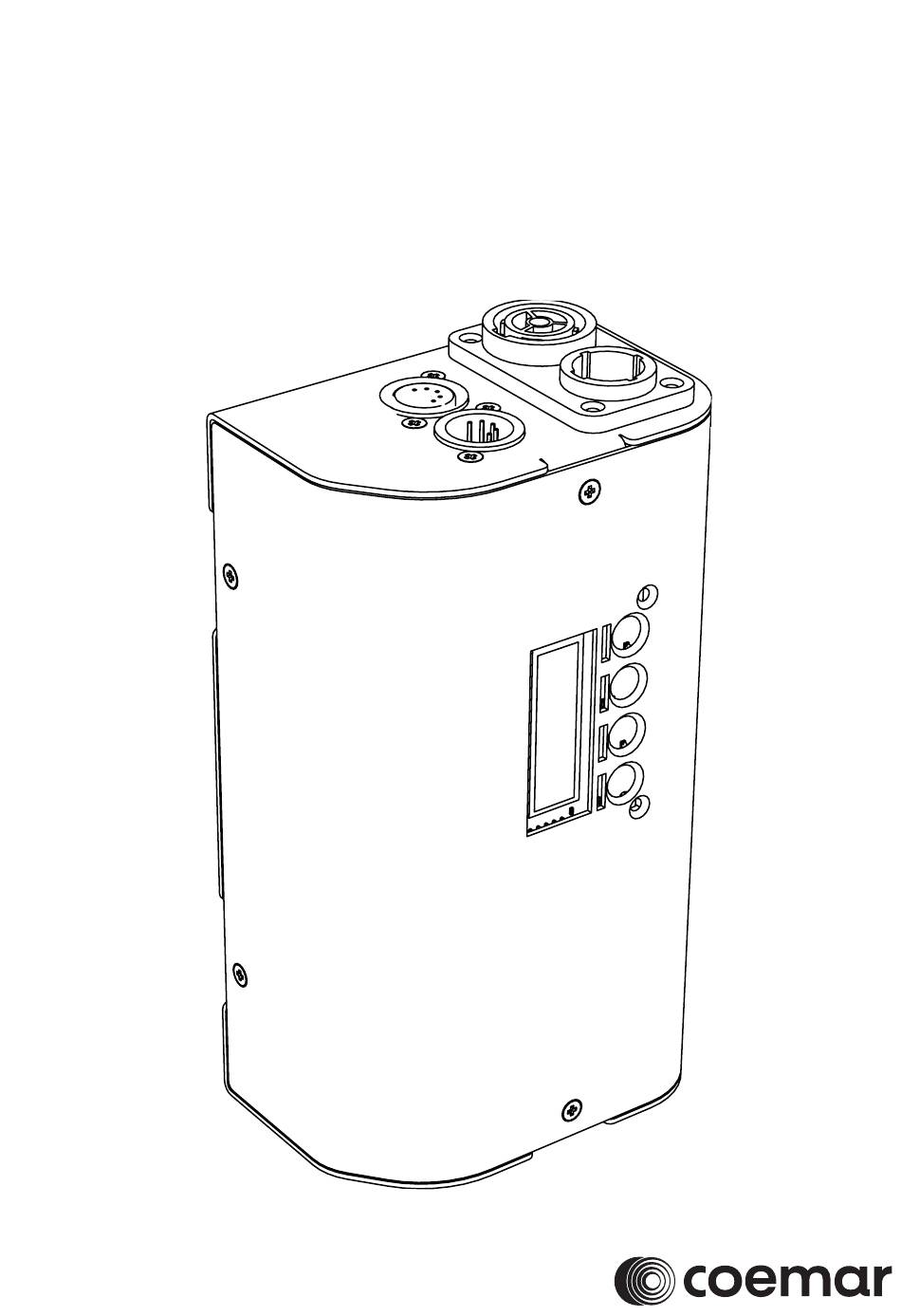

ReLite Led
Kit HD +
USER MANUAL
vrs. 1.2 - 04.08.2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ReLite Led Kit HD+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coemar ReLite Led Kit HD+

Summary of Contents for Coemar ReLite Led Kit HD+

  • Page 1 ReLite Led Kit HD + USER MANUAL vrs. 1.2 - 04.08.2023...
  • Page 2 Coemar ®. If you are downloading files from our web pages for your personal use, make sure to check for updated versions. Coemar ® cannot take any liability whatsoever for downloaded files, as technical data are subject to change without notice.

  • Page 3: Table Of Contents

    Index Italiano 1. Packaging and transportation .......................Pag. 5 1.1 Packaging ............................Pag. 5 1.2 Transportation ..........................Pag. 5 2. General information ........................Pag. 5 2.1 Safety informations ........................Pag. 5 2.2 Warranty conditions ........................ Pag. 6 2.3 EC norms ........................... Pag. 6 3.
  • Page 4 Italiano 10. Display panel functions ......................Pag. 22 10.1 Quick guide to menu ......................Pag. 22 10.2 Rapid count ........................... Pag. 22 10.3 Main functions menu......................Pag. 23 10.4 Settings ..........................Pag. 25 10.5 Display ........................... Pag. 27 10.6 Measures ..........................Pag. 28 11.

  • Page 5: Packaging And Transportation

    Italiano Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, instal- lation).

  • Page 6: Warranty Conditions

    3. The level of technology of ReLite Led Kit HD + requires the use of special- ised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projec- tor.

  • Page 7: Product Specifications

    Italiano . Product specifications Technical characteristics Power supply 80-264 V, auto-sensing, 50-60 Hz Depending on the LED module and the size/model of the Maximum current fixture Power factor Cosϕ > 0.95 Depending on the LED module and the size/model of the Power consumption fixture Color temperature...

  • Page 8: Unit's Main Components

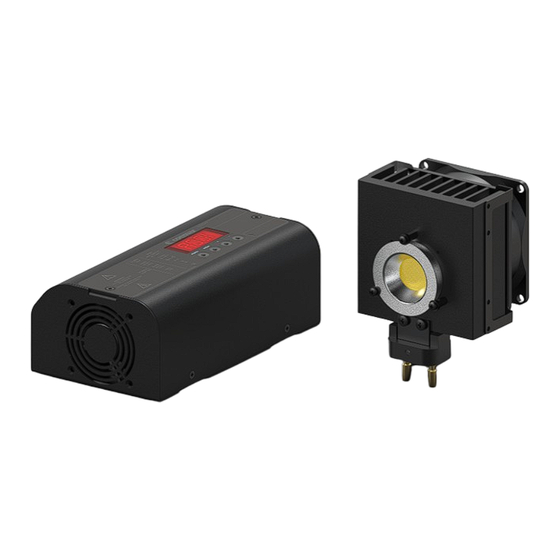

    Italiano Unit’s main components *The LED group depends on the size/model of the fixture Components description A Display panel DMX In DMX Out PowerCon TRUE1 Top In PowerCon TRUE1 Top Out...

  • Page 9: Installation

    Italiano Installation Mechanical installation With ReLite Led Kit HD + will be possible to give new life to your projector, simply replacing the old lamp with the ReLite Led Group. The ReLite Box can be fixed at the projector’s yoke through the fixing plates present on the box (A).

  • Page 10: Powering Up

    Note: in case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3 X 1,5 ø external 10 mm, rated 300/500V, tested to 2 KV, op- erating temperature -40°C + 180°C, Coemar cod. CV5311). Connection to mains power ReLite Led Kit HD + equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 V) or 4 (115 V) fixtures.

  • Page 11: Control Signal Connections

    Italiano . Control signal connections Control signal connection by XLR5 plugs The digital control signal is transmitted to the projector via a two pole cable screened in ac- cording to the International standards for DMX 512 data transmission. The connection must be serial, using connectors XLR5 male and female located on the back of ReLite Led Kit HD + labelled DMX512 IN e OUT.

  • Page 12: Turning The Relite Led Kit Hd + On

    Italiano . Turning the ReLite Led Kit HD + on After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power. The software version installed on the internal microprocessors will be shown on the display, suddenly it will show the current DMX addressing.

  • Page 13: Dmx Chart

    Italiano . DMX chart VariWhite Version DMX modes Sunrise 2 (MK1) channels channels channels channel mode mode channels channels ↓ Master Master Master Master Warm Master Master Dimmer Dimmer Dimmer Dimmer White Led Dimmer Dimmer Dimmer White Dimmer Warm White White Dimmer Fine...

  • Page 14: Dmx Chart 5 Channels

    Italiano DMX Chart 5 channels type of channel function effect decimal percentage control master adjust luminous output intensity proportional 0 - 255 0% - 100% dimmer from 0 to 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100% step 2.700 K 0 - 6...

  • Page 15: Dmx Chart 2 And 1 Channels

    Italiano DMX Chart 2/1 channels channel type of function effect decimal percentage control master adjust luminous output intensity proportional 0 - 255 0% - 100% dimmer from 0 to 100% white tone proportional proportional value from 2.700 K to 6.500 K 0 - 255 0% - 100% DMX Chart Sunrise mode type of...

  • Page 16: Dmx Chart Raw Mode

    Italiano DMX Chart Raw mode type of channel function effect decimal percentage control adjust luminous output intensity of warm warm white led proportional 0 - 255 0% - 100% white led from 0 to 100% warm white led proportional warm white led fine control 16 bit 0 - 255 0% - 100% fine adjust luminous output intensity of cold...

  • Page 17: Dmx Chart 2 Channels (Mk1)

    Italiano DMX Chart 2 channels (MK1) type of channel function effect decimal percentage control adjust luminous output intensity master dimmer proportional 0 - 255 0% - 100% from 0 to 100% 3200 K 0 - 10 0% - 4% 2700 K 11 - 16 4% - 6% 2800 K...

  • Page 18: Dmx Chart 6 Channels

    Italiano DMX Chart 6 channels type of channel function effect decimal percentage control adjust luminous output master dimmer proportional 0 - 255 0% - 100% intensity from 0 to 100% dimmer fine proportional fine dimmer control 16 bit 0 - 255 0% - 100% 3200 K 0 - 10 0% - 4%...
  • Page 19 Italiano step no effect fine white temperature control proportional (from temperature selected to - 126 - 49% the previous step) white temperature step no effect 127 - 128 50% - 50% fine fine white temperature control proportional (from temperature selected 129 - 254 51% - 99% to the following step) step...

  • Page 20: Setup Via Rdm

    Italiano Setup via RDM Quick guide to menu The ReLite Led Kit HD + required RDM (Remote Device Management) to set up fixtures. Using an RDM compliant DMX controller, you can communicate with all the fixtures on a data link without needing to connect to each fixture individually.

  • Page 21: Rdm Error Chart

    RDM Error Chart ERROR DESCRIPTION SOLUTION MEMORY Memory Reading Error Perform A “Factory Reset” HW MEMORY Memory Hardware Error Contact Coemar DMX ADDR DMX Addressing Error The Personality Dimension Exceeds 512 Channels NTC ERROR Temperature Sensor Check Wiring NTC Led Disconnected...

  • Page 22: Display Panel Functions

    Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection.

  • Page 23: Main Functions Menu

    Italiano 10.3 Main functions menu INTENSITY: intensity Allows to adjust the luminous output intensity from 0 to 255 (d: decimal units). CCT: 2700 k This channel offers a preset library of 2700 k various white CCT 2800 k with a range that goes from 2.700 K 2900 k and up to 6.500 K,...
  • Page 24 Italiano STROBE: strobe Manually sets the strobe DMX channel. SETTINGS: settings Manually sets various settings of the projector. MEASURES: measures Check all the measures and product status. FACTORY RESET: factory reset Allows to return to sure? the factory settings: Light Intensity: 80 CCT: 4.400 K DMX Channels: 5 Fan: Auto mode...

  • Page 25: Settings

    Italiano 10.4 Settings DIMMING CURVE: dimming curve exponential It allows the selection of different dimmer curves: exponential exponential (default), halogen halogen, standard, linear and logarithmic. standard linear logarithmic SMOOTH: smooth Allows to change the speed of every dimming fast curve between FAST (standard), SLOW, VERY SLOW.
  • Page 26 Italiano PERSONALITIES: PERSONALITIES 5 CH It is possible to choose 5 CH between 5, SUNRISE, RAW, 1, 2, MK1 or 6 SUNRISE Channels modalities, in which the projector will operate. 1 CH 2 CH 6 CH LOSS SIGNAL: loss signal MAINTAIN It is possible to choose between “maintain”...

  • Page 27: Display

    Italiano 10.5 Display REVERSE: reverse It allows to turn by 180° the reading of the display. When you chose “ON” wait the turn of the display without clicking. AUTO LOCK: AUTO LOCK Locks the keys. OFF: Auto Lock function in OFF HOLD HOLD: Press any key for 3 seconds to...

  • Page 28: Measures

    Italiano 10.6 Measures TEMPERATURES: TEMPERATURES Shows the current ° F MIN NOW MAX temperature values of the fixture. LED: -°C -°C -°C LED: shows the LED module temperature. BOARD: -°C -°C -°C BOARD: shows the electronic board temperature. TEMPERATURES TEMP histories HISTORIES: °...
  • Page 29 Italiano LED STATUS: led status w: -% Shows the c: -% percentage value of the LED status. LED PROTECTION: led protection Percentage of the maximum power in order to keep the projector in temperature. PSU VOLTAGE: psu voltage Shows the power supply voltage.

  • Page 30: Wi-Fi Menu (Optional)

    Italiano . Wi-Fi Menu (OPTIONAL) 11.1 Wi-Fi WIFI ENABLE: WIFI ENABLE It allows enable all the Wi-Fi functions WIFI UNLINK: WIFI unlink sure? This function is used to disconnect the projector from the transmitter.

  • Page 31: Special Function And Error Messages

    If a malfunction occurs, ReLite Led Kit HD + has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center. Error code...

  • Page 32: Spare Parts

    Italiano Spare parts All ReLite Led Kit HD +’s spare parts are available from your Coemar service centers. Specifying in detail the projector model and the replacement part requested, will help the service center to serve you in the best way.
  • Page 33 Italiano User notes ................................................................................................................................................................................................................
  • Page 34 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 35 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
