If a different power source is used (e.g., a Standalone operation), remove all jumpers and apply
3V3 or 5V to:
·
VDD (pin 2),
·
VREFH (pin 4),
Enclosed Power supply package (Power converter and Power adapter) simply plugs into the P2
header row, providing the necessary power supply for Emulation Adapter operation. LED1 indic-
ates if power is supplied to the Emulation Adapter.
Refer to the microcontroller documentation for more details about power voltage designations.

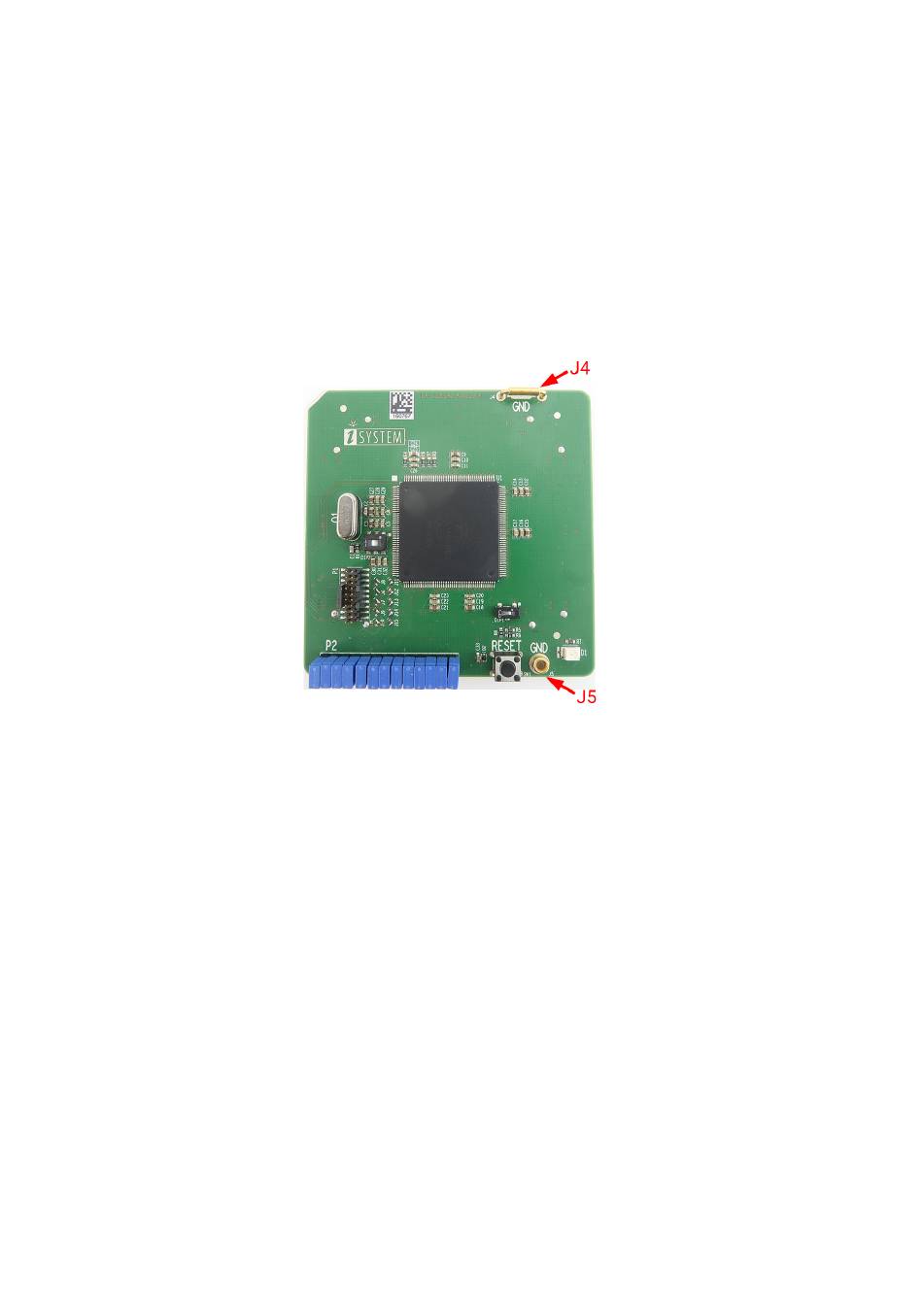

J4 and J5: GND connection points
In case a good ground connection is required, connection points bridge J4 and pin J5 provide
easy access to the Emulation Adapter's GND potential.
