TASKING iSYSTEM NXP S32K148 Hardware User Manual page 10

·

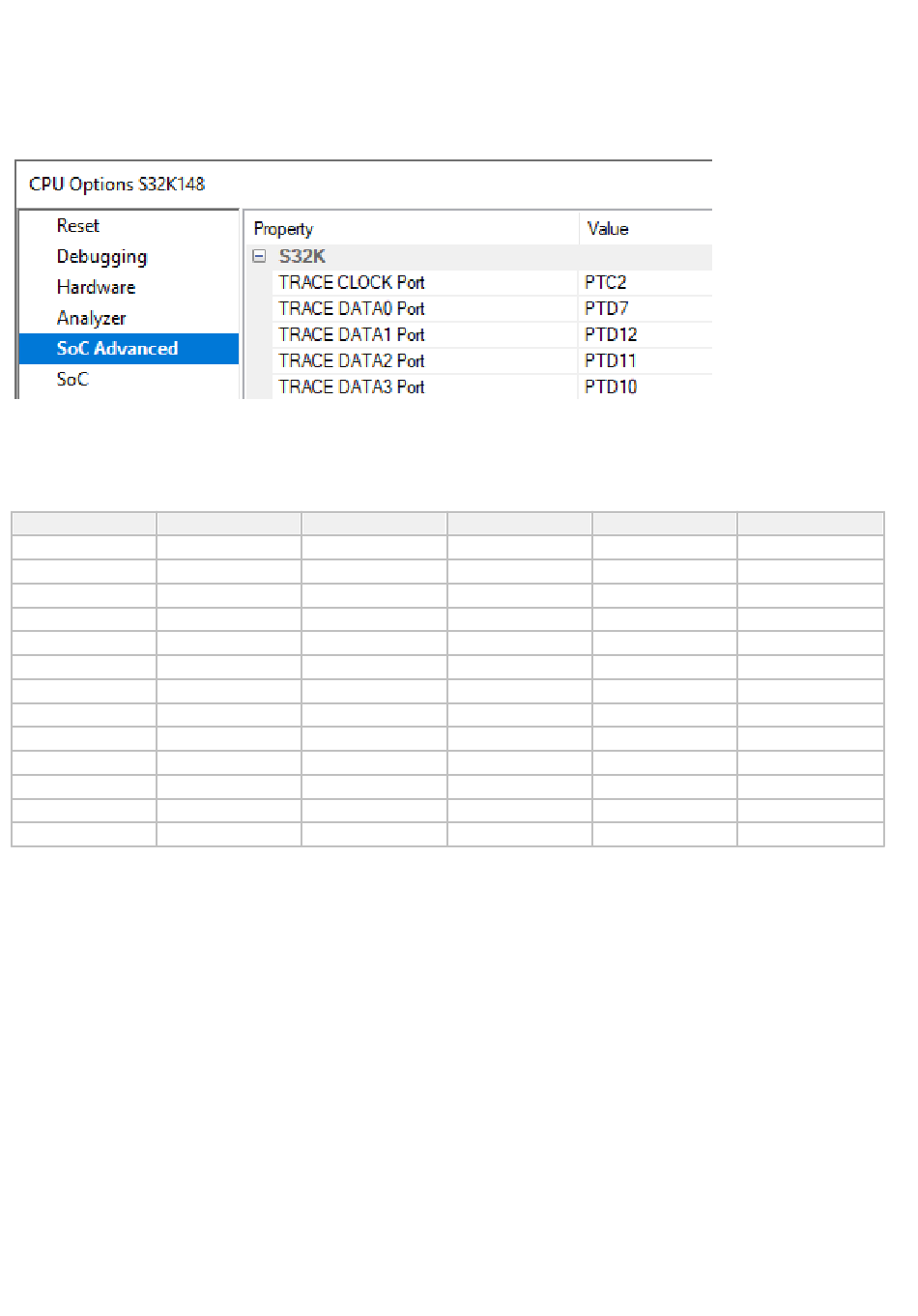

TRACE CLOCK Port to PTC2 (alternative PTD16)
·
TRACE DATA0 Port to PTD7 (alternative PTD0)
·
TRACE DATA1 Port to PTD12 (alternative PTE4)
·
TRACE DATA2 Port to PTD11 (alternative PTD16)
·
TRACE DATA3 Port to PTD10 (alternative PTD15)
P2: Power supply configuration
Power supply of the Emulation Adapter is configured via the unshrouded 26-pin 2.54 mm
header (P2).
Signal direction
Target board
Target board
Not Connected
Not Connected
Not Connected
Not Connected
Not Connected
Not Connected
Not Connected
Not Connected
Ground
Ground
Ground
Signal Direction is described from the BlueBox perspective.
By default, all jumpers are set to connect your target power supply to the microcontroller resid-
ing on the Emulation Adapter. Only pins 1-2 and 3-4 must be bridged, but for the convenience
and ease of use, all jumpers are set, except for pins 25-26.
Pin 26 is the polarizer key pin preventing incorrect connection of the IEA-PS Power converter,
when being plugged in.
Signal Pin
TVDD 1
TVREFH 3
NC 5
NC 7
NC 9
NC 11
NC 13
NC 15
NC 17
NC 19
GND 21
GND 23
GND 25
P2 Signal description
Pin Signal
2 VDD
4 VREFH
6 NC
8 NC
10 NC
12 NC
14 NC
16 NC
18 NC
20 NC
22 GND
24 GND
26 KEY
Signal direction
Emulation device
Emulation device
Not Connected
Not Connected
Not Connected
Not Connected
Not Connected
Not Connected
Not Connected
Not Connected
Ground
Ground
