Gossen Metrawatt GmbH
9.3.2

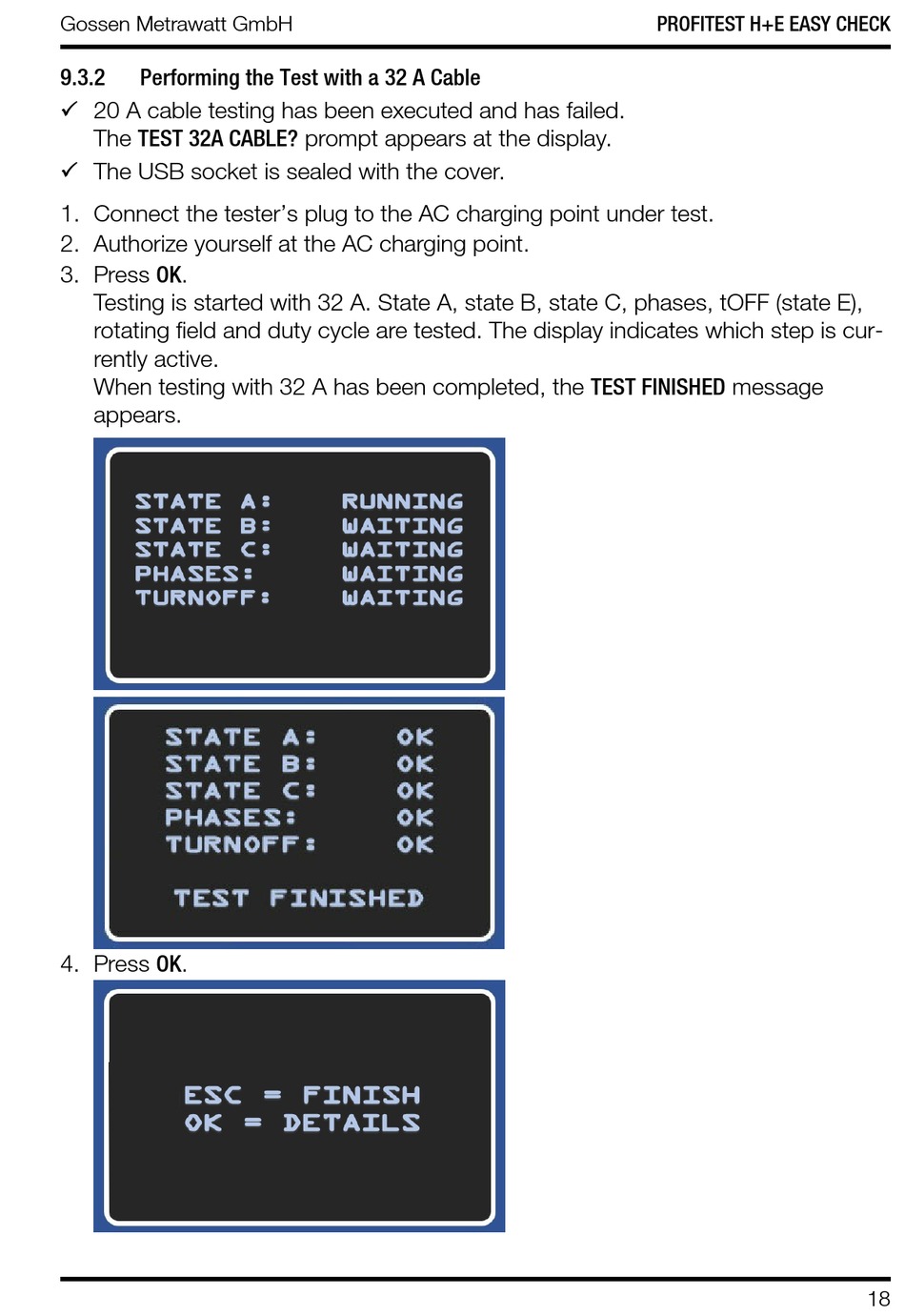

Performing the Test with a 32 A Cable
20 A cable testing has been executed and has failed.
The TEST 32A CABLE? prompt appears at the display.
The USB socket is sealed with the cover.
1. Connect the tester's plug to the AC charging point under test.
2. Authorize yourself at the AC charging point.
3. Press OK.
Testing is started with 32 A. State A, state B, state C, phases, tOFF (state E),
rotating field and duty cycle are tested. The display indicates which step is cur-
rently active.
When testing with 32 A has been completed, the TEST FINISHED message
appears.
4. Press OK.
PROFITEST H+E EASY CHECK
18
