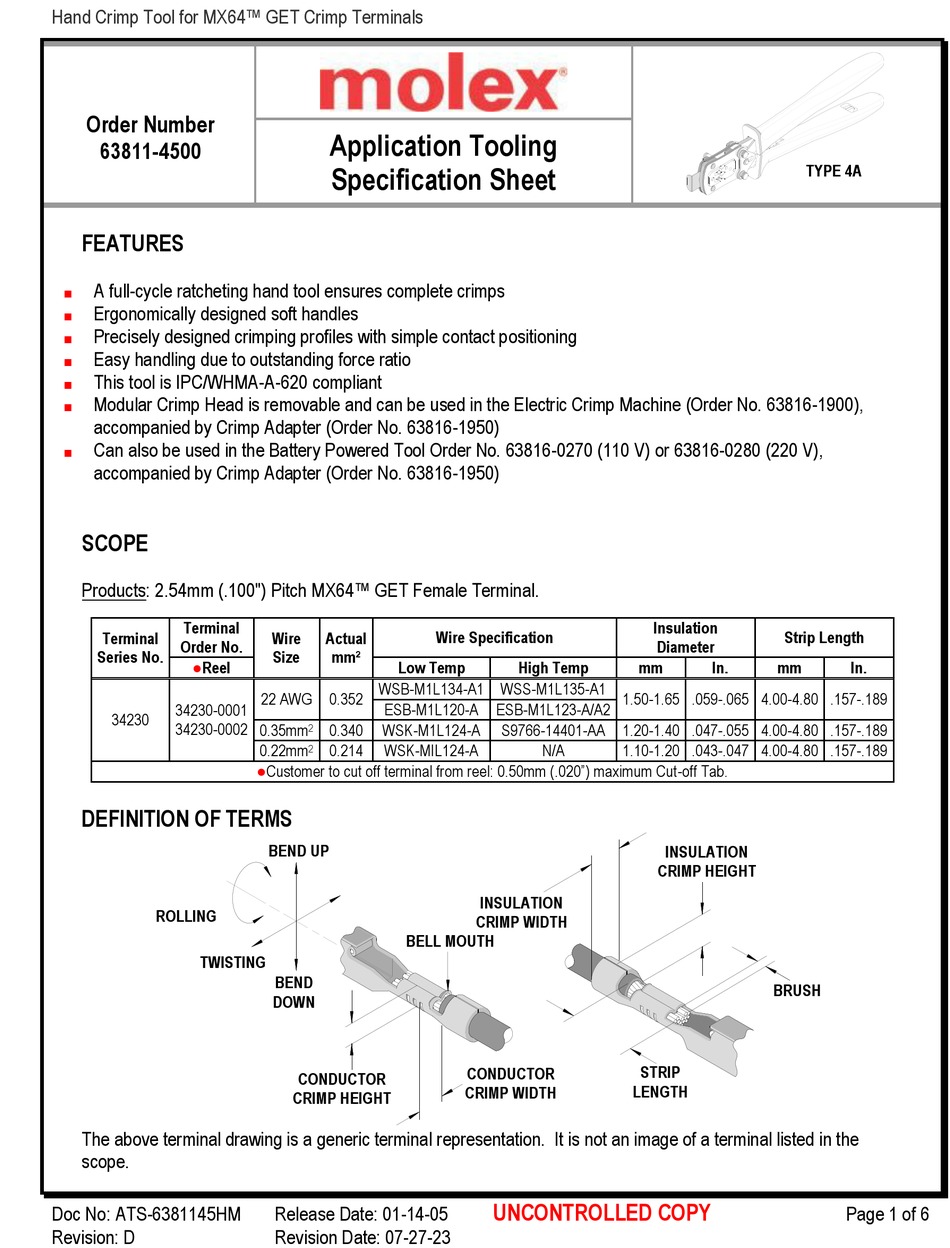

Hand Crimp Tool for MX64™ GET Crimp Terminals
Order Number
63811-4500

FEATURES

A full-cycle ratcheting hand tool ensures complete crimps
Ergonomically designed soft handles
Precisely designed crimping profiles with simple contact positioning
Easy handling due to outstanding force ratio
This tool is IPC/WHMA-A-620 compliant
Modular Crimp Head is removable and can be used in the Electric Crimp Machine (Order No. 63816-1900),
accompanied by Crimp Adapter (Order No. 63816-1950)
Can also be used in the Battery Powered Tool Order No. 63816-0270 (110 V) or 63816-0280 (220 V),
accompanied by Crimp Adapter (Order No. 63816-1950)

SCOPE

Products: 2.54mm (.100") Pitch MX64™ GET Female Terminal.
Terminal
Terminal
Order No.
Series No.
●Reel
34230-0001
34230
34230-0002
DEFINITION OF TERMS
ROLLING
TWISTING
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-6381145HM
Revision: D
Application Tooling
Specification Sheet
Wire Specification
Wire
Actual
Size
mm²
Low Temp
WSB-M1L134-A1 WSS-M1L135-A1
22 AWG 0.352
ESB-M1L120-A
0.35mm
0.340
WSK-M1L124-A
2
0.22mm
0.214
WSK-MIL124-A
2
●Customer to cut off terminal from reel: 0.50mm (.020") maximum Cut-off Tab.
BEND UP
BELL MOUTH
BEND
DOWN
CONDUCTOR
CRIMP HEIGHT
Release Date: 01-14-05
Revision Date: 07-27-23
High Temp
mm
1.50-1.65 .059-.065 4.00-4.80 .157-.189
ESB-M1L123-A/A2
S9766-14401-AA 1.20-1.40 .047-.055 4.00-4.80 .157-.189
N/A
1.10-1.20 .043-.047 4.00-4.80 .157-.189
INSULATION
CRIMP WIDTH
STRIP
CONDUCTOR
LENGTH
CRIMP WIDTH
UNCONTROLLED COPY
TYPE 4A
Insulation
Strip Length
Diameter
In.
mm
INSULATION
CRIMP HEIGHT
BRUSH
In.
Page 1 of 6
