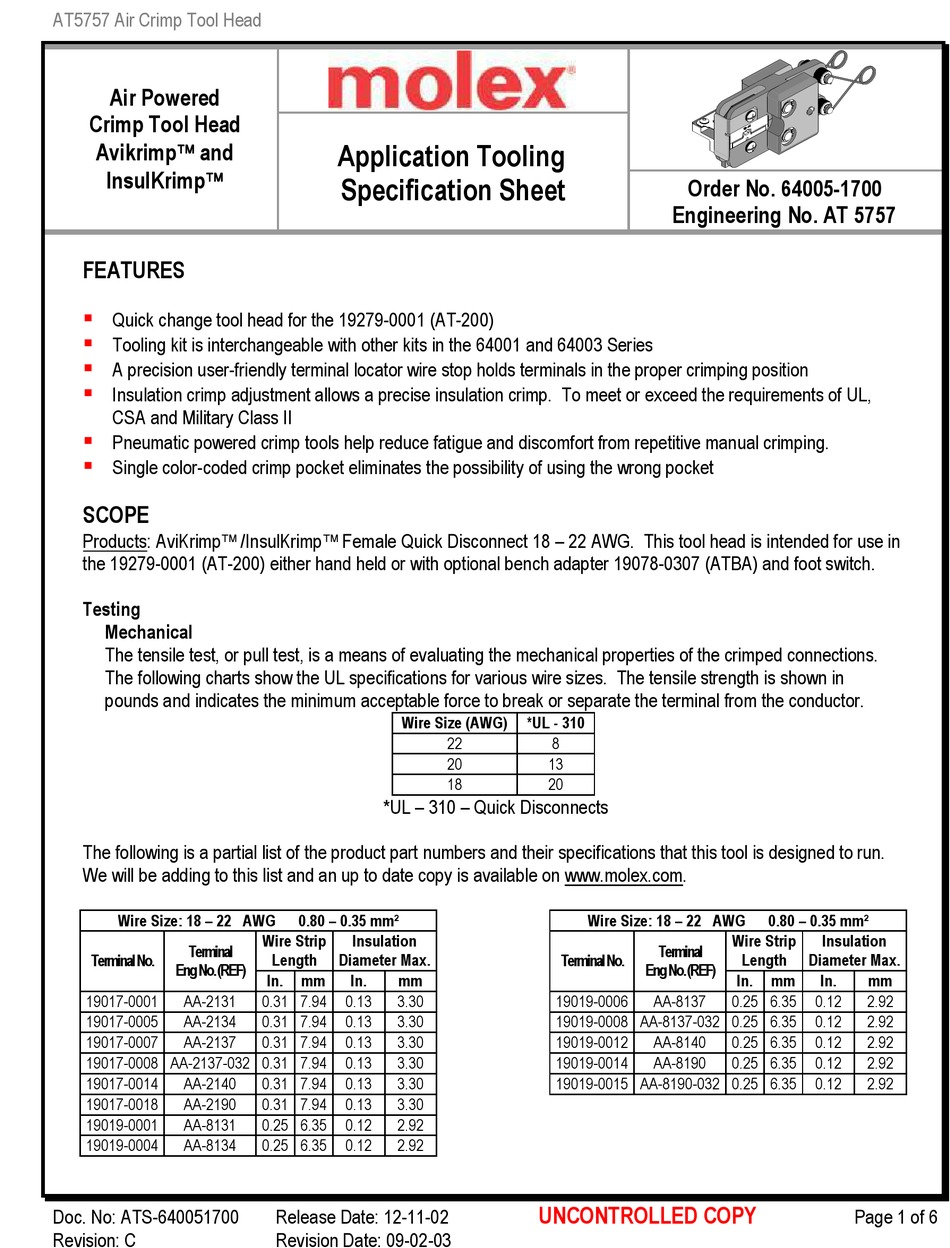

molex 207129 Series Specification Sheet

AT5757 Air Crimp Tool Head
Air Powered
Crimp Tool Head
Avikrimp    and
InsulKrimp   
FEATURES
Quick change tool head for the 19279-0001 (AT-200)
Tooling kit is interchangeable with other kits in the 64001 and 64003 Series
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the requirements of UL,
CSA and Military Class II
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping.
Single color-coded crimp pocket eliminates the possibility of using the wrong pocket
SCOPE
Products: AviKrimp /InsulKrimp Female Quick Disconnect 18 – 22 AWG. This tool head is intended for use in
the 19279-0001 (AT-200) either hand held or with optional bench adapter 19078-0307 (ATBA) and foot switch.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections.
The following charts show the UL specifications for various wire sizes. The tensile strength is shown in
pounds and indicates the minimum acceptable force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run.
We will be adding to this list and an up to date copy is available on www.molex.com.
Wire Size: 18 – 22 AWG
Terminal
Terminal No.
Eng No. (REF)
19017-0001 AA-2131
19017-0005 AA-2134
19017-0007 AA-2137
19017-0008 AA-2137-032 0.31 7.94
19017-0014 AA-2140
19017-0018 AA-2190
19019-0001 AA-8131
19019-0004 AA-8134
Doc. No: ATS-640051700
Revision: C
Application Tooling
Specification Sheet
Wire Size (AWG)
*UL – 310 – Quick Disconnects
0.80 – 0.35 mm²
Wire Strip Insulation
Length Diameter Max.
In. mm In. mm
0.31 7.94 0.13 3.30
0.31 7.94 0.13 3.30
0.31 7.94 0.13 3.30
0.13 3.30
0.31 7.94 0.13 3.30
0.31 7.94 0.13 3.30
0.25 6.35 0.12 2.92
0.25 6.35 0.12 2.92
Release Date: 12-11-02
Revision Date: 09-02-03
*UL - 310
22 8
20 13
18 20
Wire Size: 18 – 22 AWG
Terminal No.
19019-0006
19019-0008 AA-8137-032 0.25 6.35
19019-0012
19019-0014
19019-0015 AA-8190-032 0.25 6.35
UNCONTROLLED COPY
Order No. 64005-1700
Engineering No. AT 5757
0.80 – 0.35 mm²
Wire Strip Insulation
Terminal
Length Diameter Max.
Eng No. (REF)
In. mm In.
AA-8137 0.25 6.35 0.12
0.12
AA-8140 0.25 6.35 0.12
AA-8190 0.25 6.35 0.12
0.12
mm
2.92
2.92
2.92
2.92
2.92
Page 1 of 6
