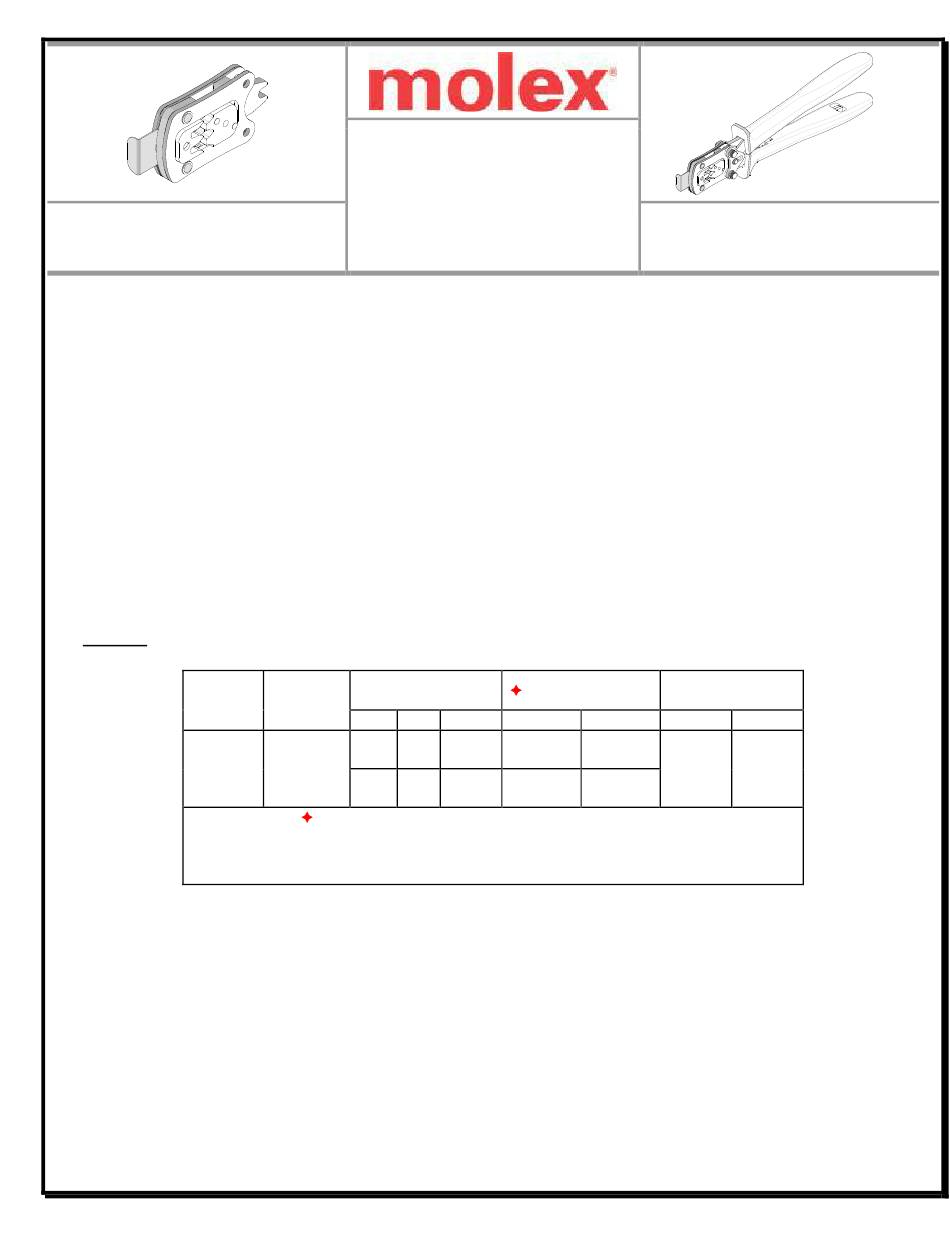

Hand Crimp Tool for Sabre Female Flat Blade Crimp Terminals
Modular Crimp Head
Order No. 63823-2670
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No. 63816-0200 (110 V) or 63816-0250 (220 V)
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: Sabre Female Flat Blade Crimp Terminals, 18-20 AWG, UL1015 wires.
Terminal
Series No.
43375
Doc No: ATS-6382326HM
Revision: A
Application Tooling
Specification Sheet
Terminal
Wire Size and Type
Order No.
AWG mm²
18
0.80 UL1015
43375-2001
20
0.50 UL1015
Insulation crimp to meet IPC/WHMA-A-620 Class 2 compliance.
Note: Terminal will accommodate the UL1015 wires.
For UL1007 wires use Hand Tool 63823-2500.
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
Release Date: 08-18-10
Revision Date: 08-18-10
Insulation Diameter
Type
mm
In.
2.85 Max
.112 Max
2.54 Max
.100 Max
UNCONTROLLED COPY
4A
TYPE
Hand Crimp Tool
Order No. 63823-2600
Strip Length
mm
In.
3.96-5.54 .156-.218
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for molex 207129 Series
Summary of Contents for molex 207129 Series
- Page 1 Hand Crimp Tool for Sabre Female Flat Blade Crimp Terminals TYPE Application Tooling Specification Sheet Modular Crimp Head Hand Crimp Tool Order No. 63823-2670 Order No. 63823-2600 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,...
- Page 2 Hand Crimp Tool for Sabre Female Flat Blade Crimp Terminals DEFINITION OF TERMS STRIP LENGTH CONDUCTOR CRIMP HEIGHT BRUSH BELL MOUTH CUT-OFF TAB BEND UP INSULATION CRIMP TWISTING ROLLING CONDUCTOR CRIMP BEND DOWN SEAM CRIMP SPECIFICATION Bell mouth Conductor Brush Max. Terminal Series No.
- Page 3 Hand Crimp Tool for Sabre Female Flat Blade Crimp Terminals WIRE STOP BLADE INSULATION OPERATION PUNCH TERMINAL Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open.
- Page 4 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above) The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 5 Hand Crimp Tool for Sabre Female Flat Blade Crimp Terminals Applications for the Modular Crimp Head WARNING: NEVER operate, service, install, or adjust this Modular Crimp Head without proper instruction and without first reading and understanding the instructions in the proper Manual or Specification Sheet. See Chart below for the correct Manual or Specification Sheet.
- Page 6 Locking Pin 63600-0525 Handle Spring 63600-0520 Crimping Spring HANDLE SPRING M4 X 14mm LONG BHCS RATCHET RELEASE LEVER CRIMPING Figure 6 SPRING (2) http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6382326HM Release Date: 08-18-10 Page 6 of 6 Revision: A Revision Date: 08-18-10...
