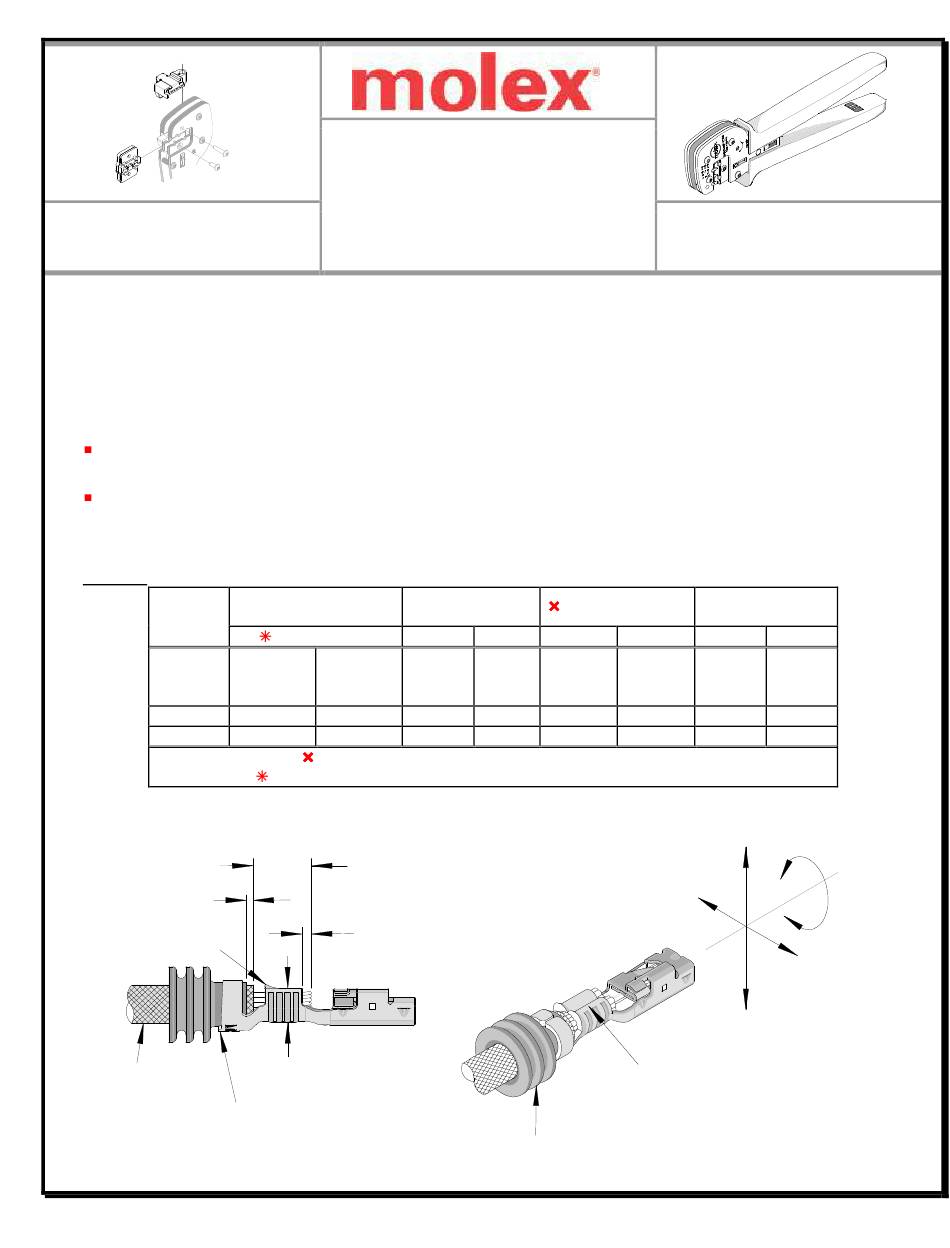

Hand Crimp Tool for CTX280 SWS Receptacle Terminals
Tool Kit
Order No. 63823-2270
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
SCOPE
Products: CTX280 SWS Receptacle Terminals: 2.5 - 3.0 mm
Terminal
Series No.
98675
34865
34808
DEFINITION OF TERMS
0.4-0.6 (REF)
SEAL POSITION
BELL MOUTH
WIRE
CUT-OFF
TAB
Doc No: ATS-6382322HM Release Date: 07-03-13
Revision: A
Application Tooling
Specification Sheet
Terminal
Wire Size and Type
Order No.
Reel Form Only
98675-1003
98675-1047
98675-1007
98675-1063
2.5 – 3.0
98675-1043
98675-1067
34865-1043 34865-1047 2.5 – 3.0
34808-1003 34808-1007 2.5 – 3.0
See crimp specification for the individual Insulation Diameter.
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP
Revision Date: 07-03-13
2
metric wires.
Insulation Diameter
mm²
Type
Mm
T3ZHID
2.70-3.20 .106-.126
T3ZHID
2.70-3.20 .106-.126
T3ZHID
2.70-3.20 .106-.126
SEAL
UNCONTROLLED COPY
Hand Crimp Tool
Order No. 63823-2200
Strip Length
In.
mm
In.
4.30-4.80 .169-.189
4.30-4.80 .169-.189
4.30-4.80 .169-.189
BEND UP
TWISTING
BEND
DOWN
SEAM
TYPE 4C
ROLLING
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 Hand Crimp Tool for CTX280 SWS Receptacle Terminals TYPE 4C Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63823-2270 Order No. 63823-2200 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
  • Page 2 Pull Force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.

  • Page 3: Installation

    Hand Crimp Tool for CTX280 SWS Receptacle Terminals INSTALLATION To install the Tool Kit into the Power Crimp Head follow the steps below: POWER CRIMP HEAD LIFT UP ON PUNCHES THE LOCATOR M4 X 18 LONG BHCS PRESS DOWN M4 X 10 LONG ON THE BRASS BHCS PIVOT SHAFT...
  • Page 4 Hand Crimp Tool for CTX280 SWS Receptacle Terminals Crimping Terminals 1. Select the desired terminal listed in the preceding charts. 2. Turn the Locator Lock Latch down to unlock. See Figure 3. 3. Swing the terminal locator away from the crimp tool shown in Figure 4. TERMINAL SWING OPEN TERMINAL...

  • Page 5: Maintenance

    Should such a defect occur, we will repair or exchange the tool kit free of charge. This repair or exchange will not be applicable to altered, misused, or damaged tools. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. UNCONTROLLED COPY...
  • Page 6 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 7 Hand Crimp Tool for CTX280 SWS Receptacle Terminals The chart below shows all applications for this Tool Kit. Tool Kit Tool Tool Power Head Adapter Figure Order No. Order no. Description Order No. Description 63810-1050 Hand Crimp Frame (Short) 63810-1000 Hand Crimp Frame (Long) 63823-2270 63816-0200 Battery Power Tool (110 V) 63816-0300 Power Crimp Head 63816-0250 Battery Power Tool (220 V) 63816-0300 Power Crimp Head...
  • Page 8 Hand Crimp Tool for CTX280 SWS Receptacle Terminals Hand Tool Parts List Item Number Order Number Description Quantity 63810-1000 Hand Crimp Frame (Long) 63823-2270 Tool Kit with Locator 63823-2275 Locator (only) M4 X 8mm LONG BHCS RATCHET RELEASE SCREW WITH TOOL KIT LOCATOR ONLY M4 X 10mm LONG BHCS...

  • Page 9: Power Head Parts List

    M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 11 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6382322HM Release Date: 07-03-13 Page 9 of 9 Revision: A Revision Date: 07-03-13...
