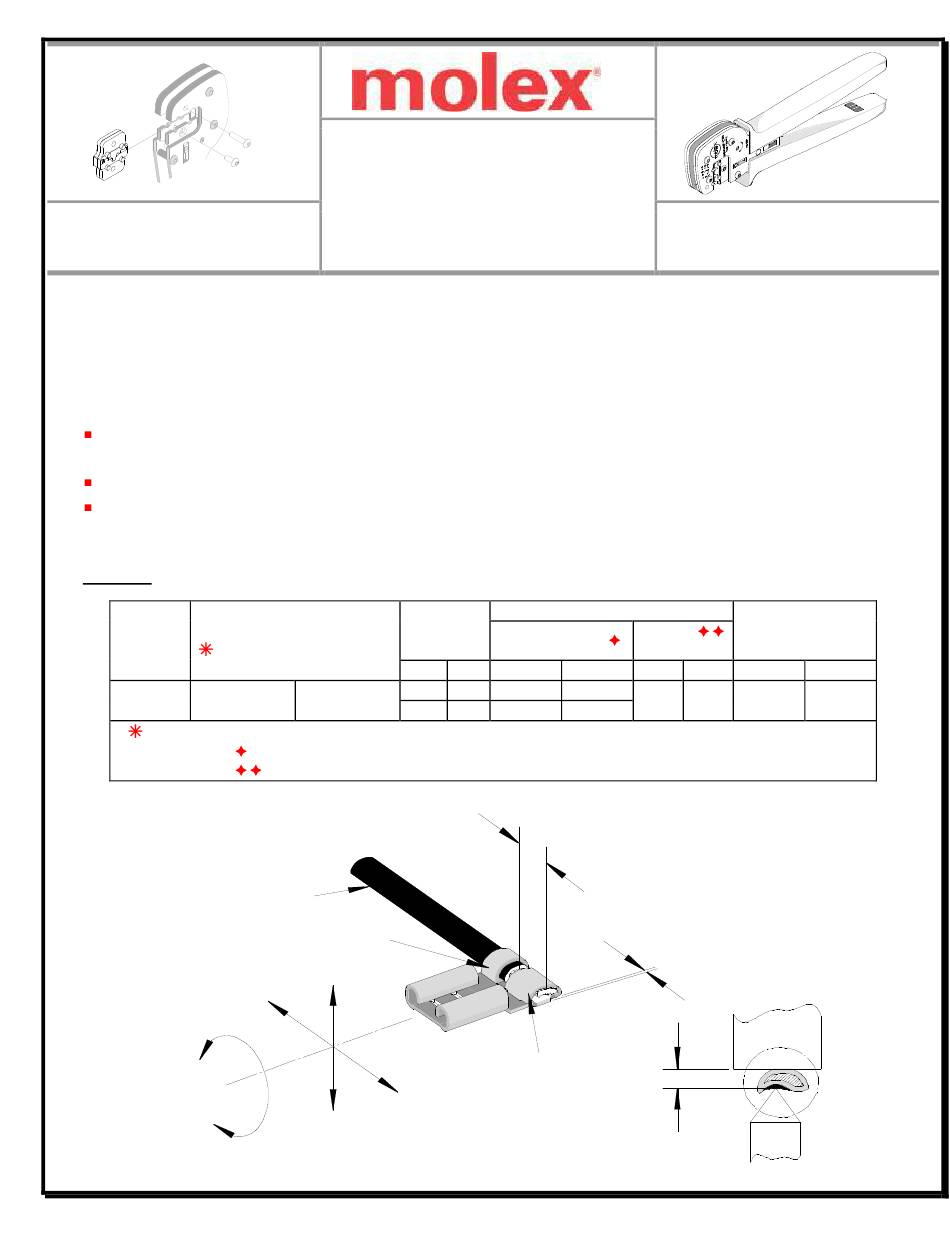

Tool Kit for Quick Disconnect Flag Female Terminal
Tool Kit
Order No. 63819-9770

FEATURES

A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.

SCOPE

Products: Quick Disconnect Flag Female Terminal 4.8 by 0.8 Tabs 16 AWG and 1.50mm
Terminal
Series No.
Available in Reel form only
94536-0100
94536
94536-0101
The terminals above are reeled parts only. Customer to cut off terminal from reel: 0.50mm (.020")

DEFINITION OF TERMS

ROLLING
Doc No: ATS-6381997HM Release Date: 07-30-09
Revision: B
Application Tooling
Specification Sheet
Terminal Order No.
AWG mm²
94536-1100
94536-1101
N/A
To achieve optimum IPC-A620 insulation crimps, use this insulation OD range.
Overall insulation OD specification for terminal.
STRIP LENGTH
WIRE
INSULATION
CRIMP
BEND UP
TWISTING
BEND DOWN
Revision Date: 09-24-10
Insulation Diameter
Wire Size
IPC/WHMA-A620
mm
In.
16
N/A- 2.00-3.00 .078-.118
1.50 2.00-3.00 .078-.118
CUT-OFF TAB
CONDUCTOR
CRIMP
UNCONTROLLED COPY
Hand Crimp Tool
Order No. 63819-9700
2
.
Strip Length
Terminal
Maximum
mm
In.
mm
3.50
.138
4.40-5.40 .173-.213
maximum.
CRIMP HEIGHT
TYPE 4C
In.
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 Tool Kit for Quick Disconnect Flag Female Terminal TYPE 4C Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63819-9770 Order No. 63819-9700 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
  • Page 2 Pull Force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.
  • Page 3 Tool Kit for Quick Disconnect Flag Female Terminal OPERATION Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open. MARKING FOR MARKING FOR 16 AWG 1.50mm...
  • Page 4 Should such a defect occur, we will repair or exchange the tool kit free of charge. This repair or exchange will not be applicable to altered, misused, or damaged tools. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. UNCONTROLLED COPY...
  • Page 5 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 6 Tool Kit for Quick Disconnect Flag Female Terminal The chart below shows all applications for this Tool Kit. Tool Kit Tool Tool Power Head Adapter Figure Order No. Order no. Description Order No. Description 63810-1050 Hand Crimp Frame (Short) 63810-1000 Hand Crimp Frame (Long) 63819-9770 63816-0200 Battery Power Tool (110 V) 63816-0300 Power Crimp Head 63816-0250 Battery Power Tool (220 V) 63816-0300 Power Crimp Head...
  • Page 7 Tool Kit for Quick Disconnect Flag Female Terminal HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-1000 Hand Crimp Frame (Long) 63819-9770 Tool Kit RATCHET RELEASE SCREW M4 X 12mm LONG BHCS M4 X 18mm Figure 8 LONG BHCS UNCONTROLLED COPY Doc No: ATS-6381997HM Release Date: 07-30-09 Page 7 of 8...
  • Page 8 Quantity 63816-0300 63816-0300 Power Crimp Head 63819-9770 63819-9770 Tool Kit M4 by 18 Long BHCS M4 by 12 Long BHCS Figure 9 http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6381997HM Release Date: 07-30-09 Page 8 of 8 Revision: B Revision Date: 09-24-10...
