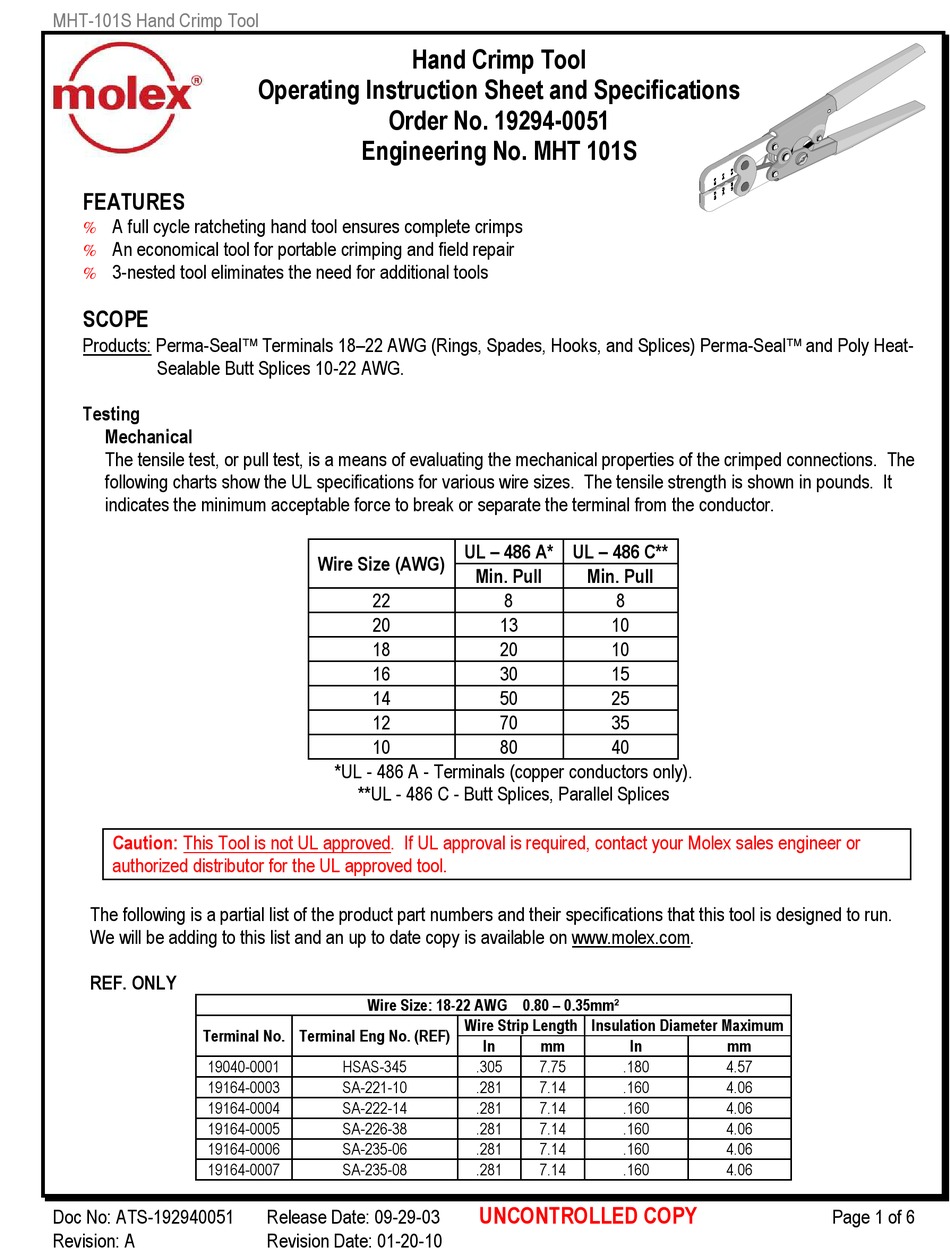

MHT-101S Hand Crimp Tool
FEATURES
%
A full cycle ratcheting hand tool ensures complete crimps
%
An economical tool for portable crimping and field repair
%
3-nested tool eliminates the need for additional tools
SCOPE
Products: Perma-Seal Terminals 18–22 AWG (Rings, Spades, Hooks, and Splices) Perma-Seal and Poly Heat-
Sealable Butt Splices 10-22 AWG.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections. The
following charts show the UL specifications for various wire sizes. The tensile strength is shown in pounds. It
indicates the minimum acceptable force to break or separate the terminal from the conductor.
Caution: This Tool is not UL approved. If UL approval is required, contact your Molex sales engineer or
authorized distributor for the UL approved tool.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run.
We will be adding to this list and an up to date copy is available on www.molex.com.
REF. ONLY
Terminal No. Terminal Eng No. (REF)
19040-0001
19164-0003
19164-0004
19164-0005
19164-0006
19164-0007
Doc No: ATS-192940051
Revision: A
Hand Crimp Tool
Operating Instruction Sheet and Specifications
Order No. 19294-0051
Engineering No. MHT 101S
Wire Size (AWG)
22
20
18
16
14
12
10
*UL - 486 A - Terminals (copper conductors only).
**UL - 486 C - Butt Splices, Parallel Splices
Wire Size: 18-22 AWG 0.80 – 0.35mm²
HSAS-345
SA-221-10
SA-222-14
SA-226-38
SA-235-06
SA-235-08
Release Date: 09-29-03
Revision Date: 01-20-10
UL – 486 A* UL – 486 C**
Min. Pull
Min. Pull
8
8
13
10
20
10
30
15
50
25
70
35
80
40
Wire Strip Length Insulation Diameter Maximum
In
mm
In
.305
7.75
.180
.281
7.14
.160
.281
7.14
.160
.281
7.14
.160
.281
7.14
.160
.281
7.14
.160
UNCONTROLLED COPY
mm
4.57
4.06
4.06
4.06
4.06
4.06
Page 1 of 6
