EVALUATION BOARD HARDWARE

POWER MANAGEMENT OF THE OUTPUT (LDO)

The ADP5091 has an additional regulated output containing an
LDO and a boost. On this evaluation board, the boost is always
shut down. With the options of different resistor values, the
LDO can generate different output voltages. Table 1 shows the
jumper connections and the corresponding output voltage on
the ADP5091-2-EVALZ. See the Evaluation Board Schematic
section for more details.

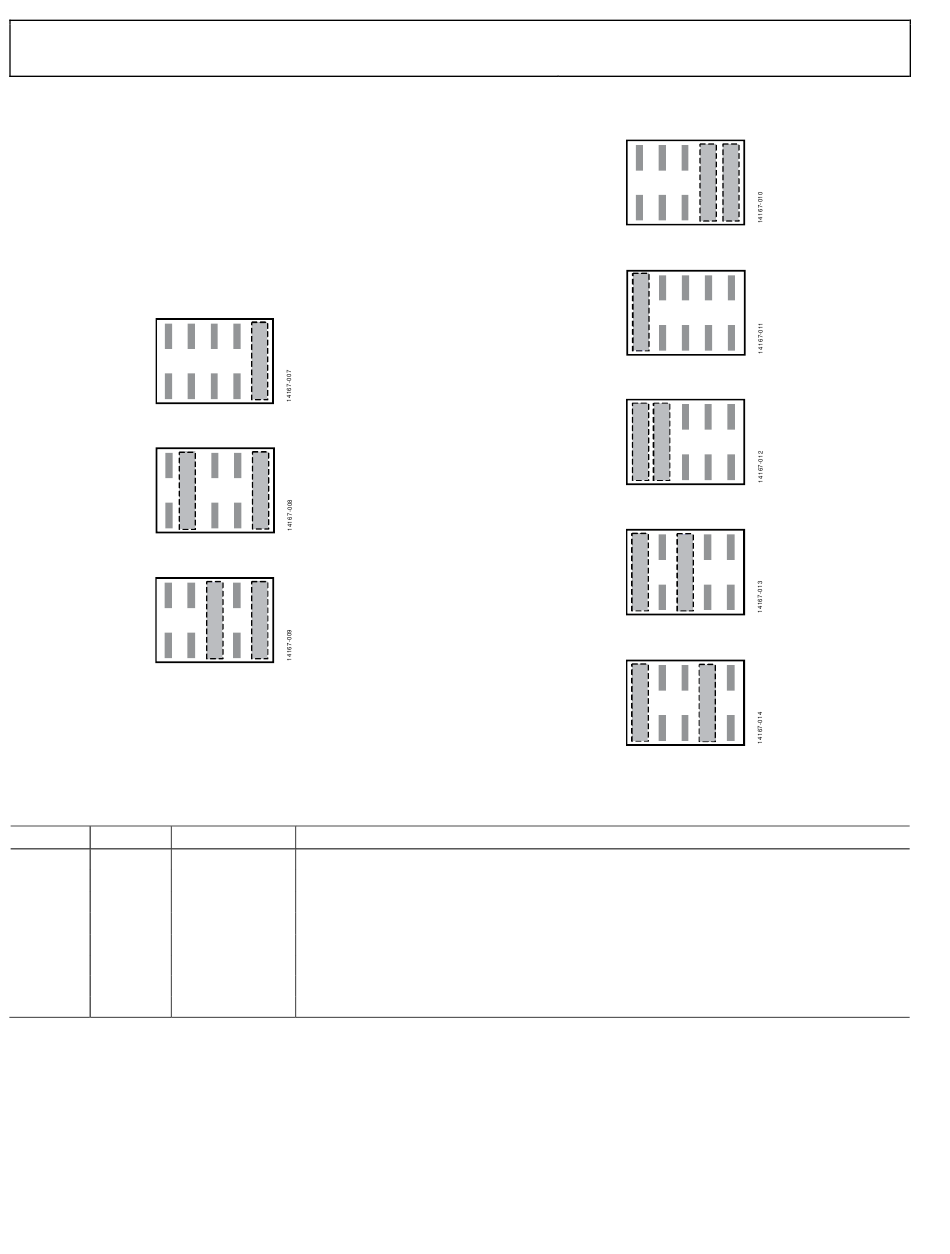

Figure 4. Jumper Position on Evaluation Board for Setting 1
Figure 5. Jumper Position on Evaluation Board for Setting 2
Figure 6. Jumper Position on Evaluation Board for Setting 3
Table 1. Power Management of Sensor Nodes
Setting V (V) REG_OUT (V)
OUT
2
1 V 2.5 V
SYS
2
2 V 3.3 V
SYS
2
3 V 3 V
SYS
2
4 V 2.8 V
SYS
5 2.5 V 2.5 V
6 3.3 V 3.3 V
7 3 V 3 V
8 2.8 V 2.8 V
1
Do not connect both J2_1 to J2_2 and J2_9 to J2_10 at the same time.
2
V means the voltage on the SYS pin.
SYS
J2
J2
J2
1
Jumper Position
J2_9 connected to J2_10 (see Figure 4)
J2_3 connected to J2_4, J2_9 connected to J2_10 (see Figure 5)
J2_5 connected to J2_6, J2_9 connected to J2_10 (see Figure 6)
J2_7 connected to J2_8, J2_9 connected to J2_10 (see Figure 7)
J2_1 connected to J2_2 (see Figure 8)
J2_1 connected to J2_2, J2_3 connected to J2_4 (see Figure 9)
J2_1 connected to J2_2, J2_5 connected to J2_6 (see Figure 10)
J2_1 connected to J2_2, J2_7 connected to J2_8 (see Figure 11)
