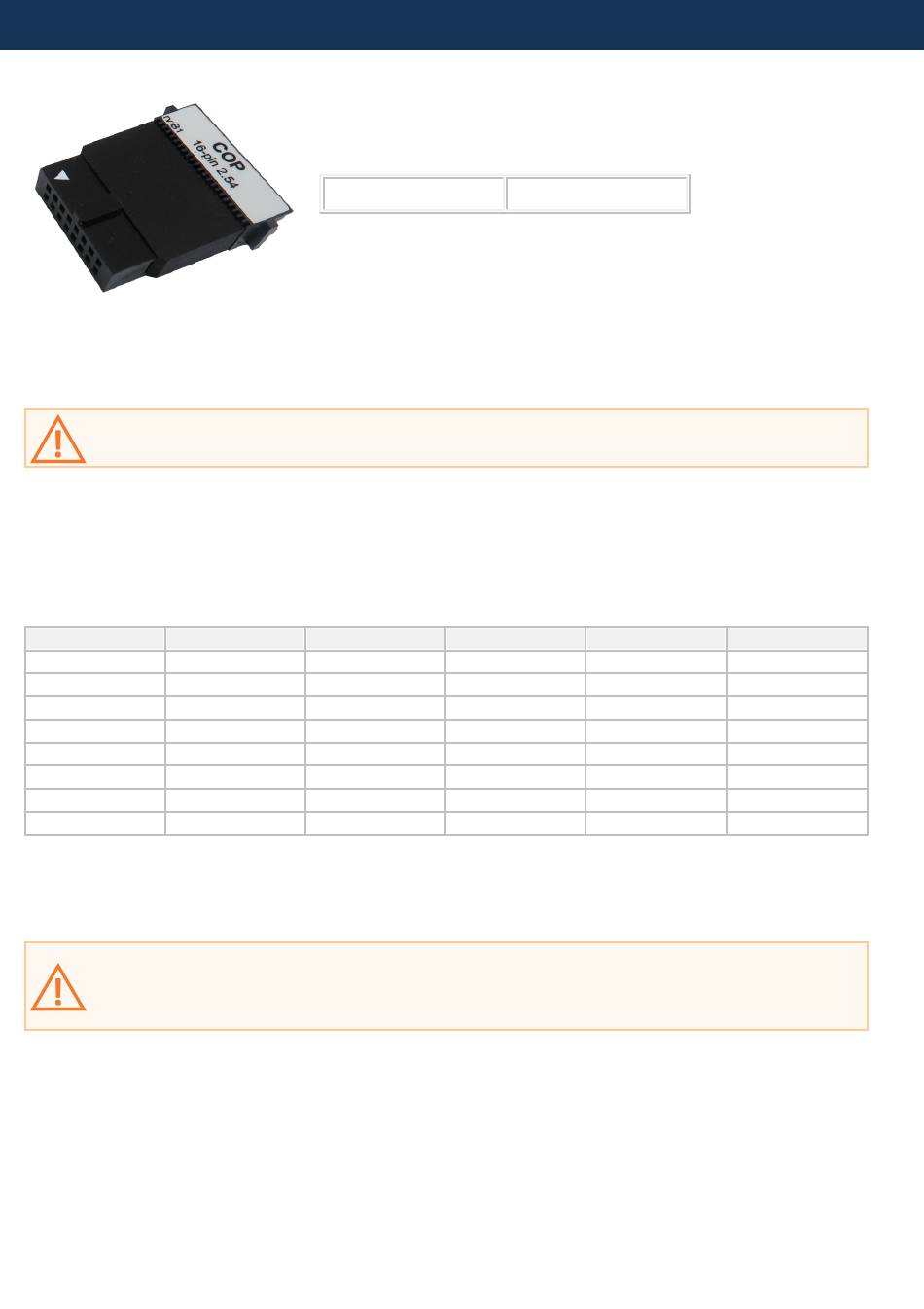

16-pin 2.54mm NXP COP Debug Adapter

This debug adapter is used to connect the iC5000 BlueBox to NXP MPC6xx, MPC82xx,
MobileGT, MPC7xx or MPC83xx based target featuring 16-pin 2.54mm pitch target debug
connector with NXP COP pinout
This debug adapter is supported by the iC5000 BlueBox only.
The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to
the target debug connector on the other side. Refer to the BlueBox User Manual for more details
on connecting the debug adapter.
The following pinout is valid on the target side:
Signal direction
I
O
I
O
O
O
O
I CKSTP_OUT
Signal Direction is described from the BlueBox perspective.
When connecting the BlueBox to a target for the first time, double check that the debug
adapter pinout matches the Target connector. A mismatch can result in a hardware
failure.
16-pin 2.54mm NXP COP Debug Adapter features resettable fuses on all pins except for the pin
15. These protect debug signals against overcurrent and cycle back to a conductive state after
the excessive current fades away. The signal on the pin 15 is protected via 100 ohm serial
resistor.
The debug adapter connects to the target via a 16-pin 2.54 mm connector, for example
Yamaichi FAS-1601-2101-2-OBF. A target should feature a matching part, for example WÜRTH
ELEKTRONIK 61201621621.
Ordering code
Signal Pin
TDO 1
TDI 3
HALTED 5
TCK 7
TMS 9
SRESET 11
HRESET 13
15
16-pin COP target pinout
IC50153
Pin Signal
2 QACK#
4 TRST
6 VTref
8 CKSTP_IN
10 NC
12 GND
14 NC
16 GND
Signal direction
O
O
I
O
