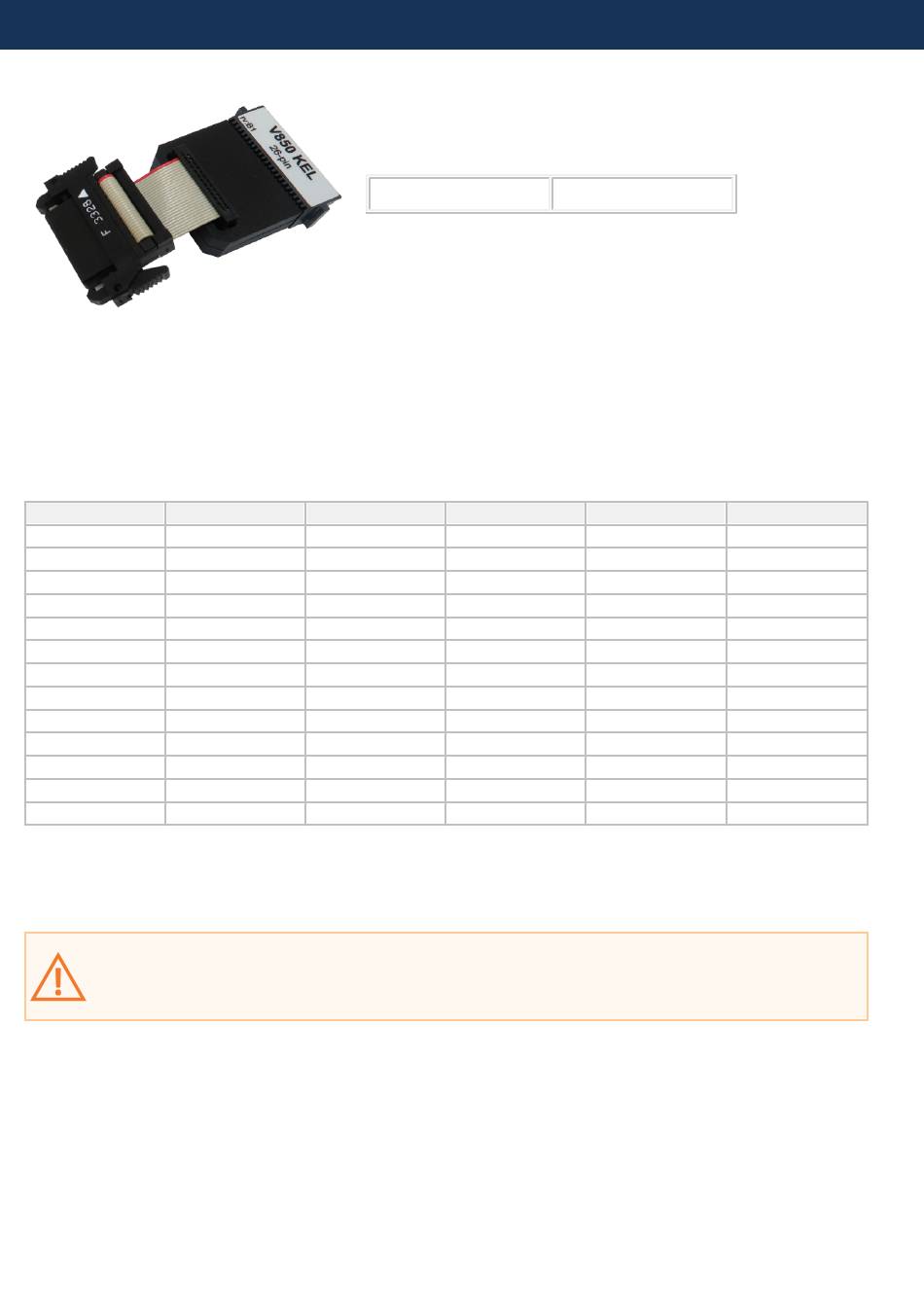

26-pin KEL Renesas V850 Debug Adapter

This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to Renesas V850
based target featuring 26-pin KEL target debug connector with the V850 pinout.
The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to
the target debug connector on the other side. Refer to the BlueBox User Manual for more details
on connecting the debug adapter.
The following pinout is valid on the target side:
Signal direction
I Reference Voltage
Signal Direction is described from the BlueBox perspective.
When connecting the BlueBox to a target for the first time, double check that the debug
adapter pinout matches the Target connector. A mismatch can result in a hardware
failure.
26-pin KEL Renesas V850 Debug Adapter features resettable fuses on all connected signals.
These fuses protect debug signals against overcurrent and cycle back to a conductive state
after the excessive current fades away.
The debug adapter connects to the target via a 26-pin KEL connector, part number 8825E-026-
175. A target should feature a matching part, for example KEL connector, part number 8830E-
026-170S. For more details see the 8825E Series at http://www.kel.jp/.
Signal Pin
Ground 1
Ground 3
Ground 5
Ground 7
Ground 9
Ground 11
Ground 13
Ground 15
Ground 17
Ground 19
Reserved 21
Reserved 23
25
26-pin V850 target pinout
Ordering code
Pin
2
4
6
8
10
12
14
16
18
20
22
24
26
IC50172
Signal Signal direction
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
DDI
DCK
DMS
DDO
DRST
RESET
FLMD0
O
O
O
I
O
O
O
