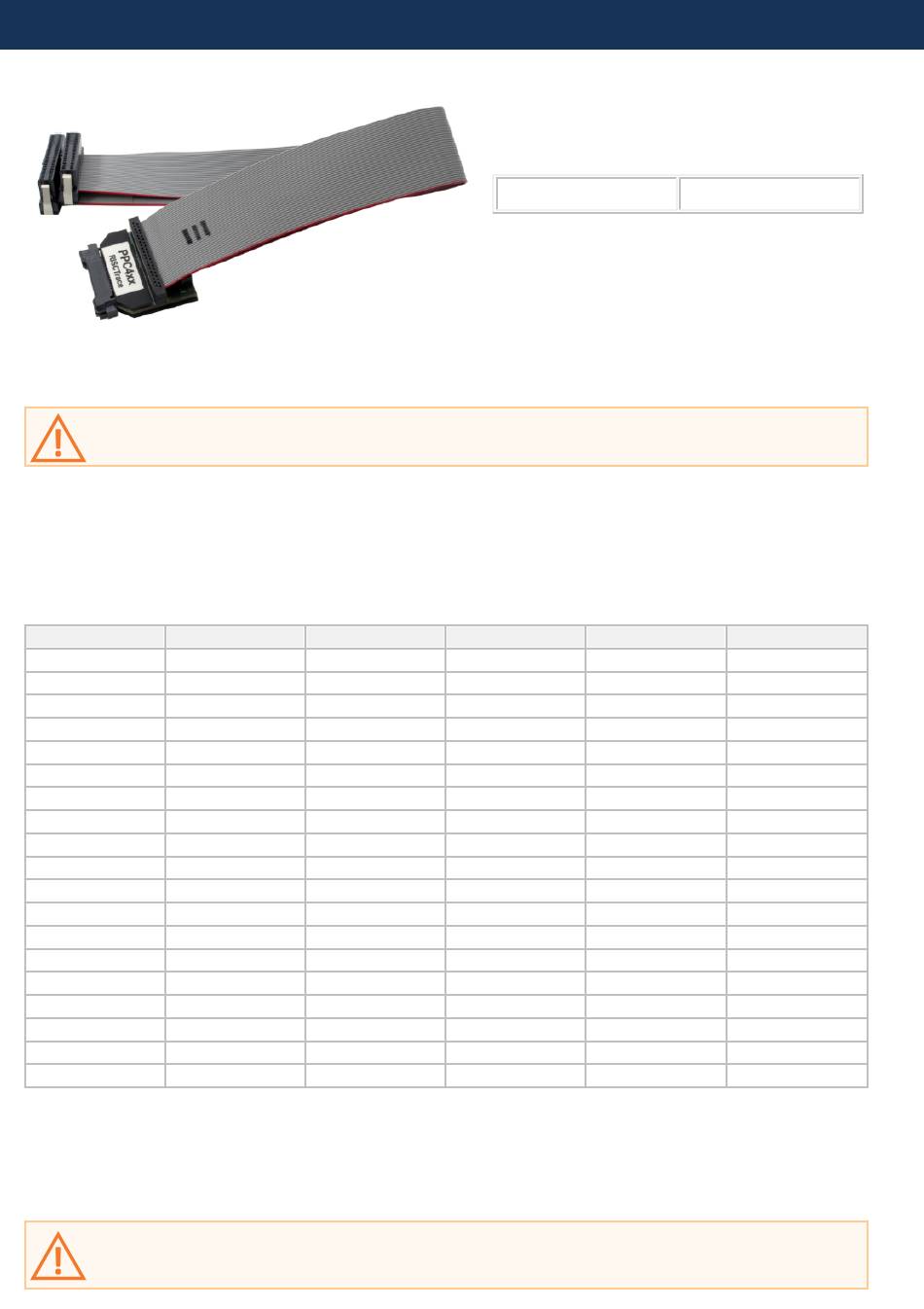

38-pin Mictor PPC4xx RISCTrace Debug Adapter

This debug adapter is used to connect the iC5000 BlueBox to Applied Micro PPC4xx based
target featuring a 38-pin Mictor target debug connector with the PPC4xx RISCTrace pinout.
This debug adapter is supported by the iC5000 BlueBox only.
The debug adapter connects to the BlueBox through the two ribbon cables and to the target
debug connector on the other side. Refer to the BlueBox User Manual for more details on
connecting the debug adapter.
The following pinout is valid on the target side:
Signal direction
O
O
I
O
O
O
O
I
I
I
I
I
I
I
Blue colored signals are trace signals.
Signal Direction is described from the BlueBox perspective.
When connecting the BlueBox to a target for the first time, double check that the debug
adapter pinout matches the Target connector. A mismatch can result in a hardware
Signal Pin
NC 1
NC 3
GND 5
HALT 7
SRST 9
TDO 11
NC 13
TCK 15
TMS 17
TDI 19
NTRST 21
NC 23
BS0 25
BS1 27
BS2 29
BS3 31
BS4 33
BS5 35
BS6 37
PPC4xx RISCTrace target pinout
Ordering code
Pin Signal
2 NC
4 NC
6 TRCLK
8 NC
10 NC
12 VREF
14 NC
16 NC
18 NC
20 NC
22 NC
24 NC
26 TS0
28 TS1
30 TS2
32 TS3
34 TS4
36 TS5
38 TS6
IC50155
Signal direction
I
I
I
I
I
I
I
I
I
