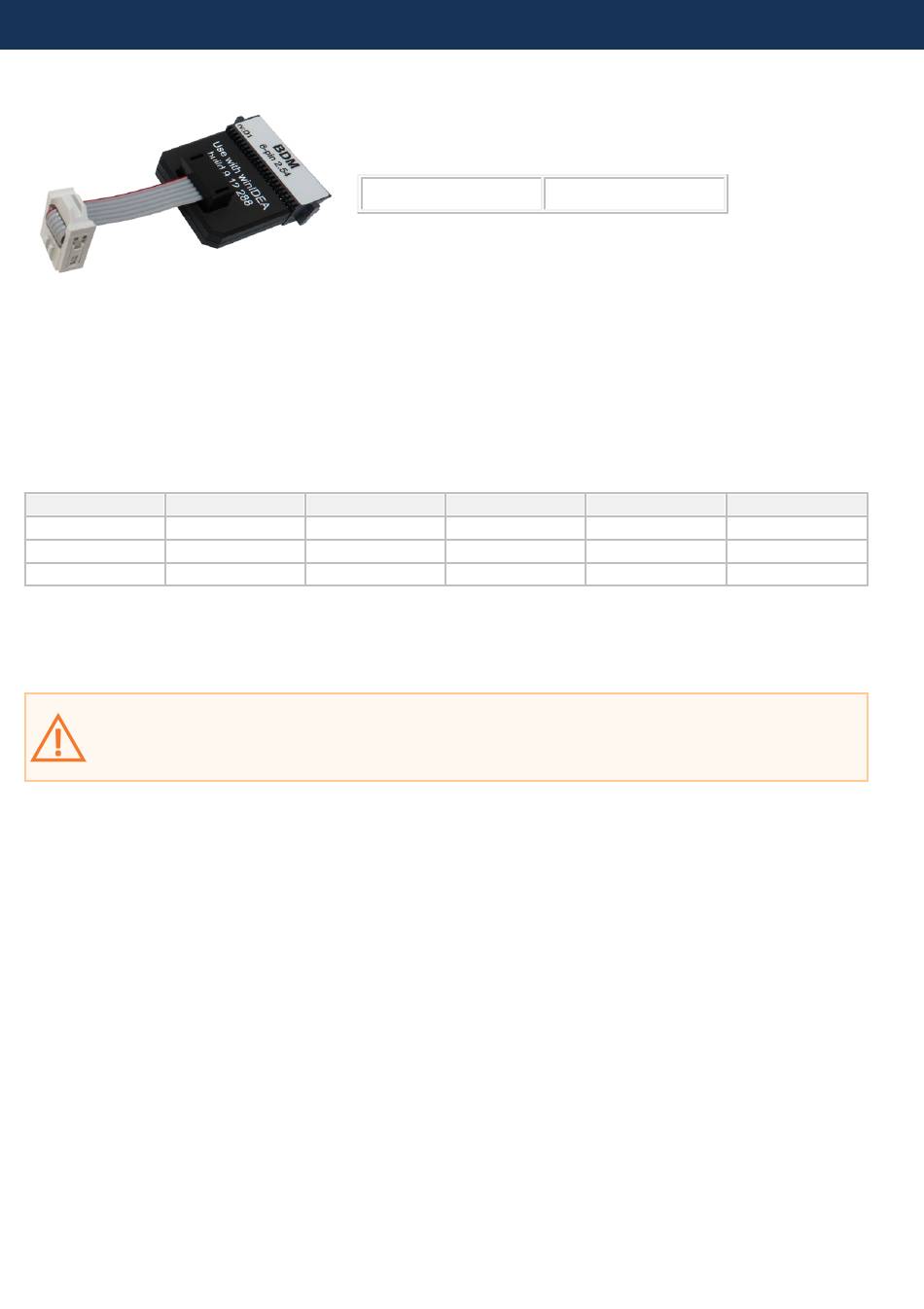

6-pin 2.54mm NXP BDM Debug Adapter

This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to NXP HCS08,
HC12, HCS12, S12X and ColdFire V1 based target featuring 6-pin 2.54mm pitch target debug
connector with the BDM pinout.
The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to
the target debug connector on the other side. Refer to the BlueBox User Manual for more details
on connecting the debug adapter.
The following pinout is valid on the target side:
Signal direction
I/O
Signal Direction is described from the BlueBox perspective.
When connecting the BlueBox to a target for the first time, double check that the debug
adapter pinout matches the Target connector. A mismatch can result in a hardware
failure.
6-pin 2.54mm NXP BDM Debug Adapter features resettable fuses on pins 1, 2, 4 and 6. These
fuses protect debug signals against overcurrent and cycle back to a conductive state after the
excessive current fades away.
The debug adapter connects to the target via a 6-pin 2.54 mm connector, for example FCI
71600-006LF. A target should feature a matching part, for example WÜRTH ELEKTRONIK
61200621621.
Ordering code
Signal Pin
BGND 1
NC 3
NC 5
6-pin BDM pinout
IC50140
Pin Signal
2 GND
4 RESET
6 VTref
Signal direction
I/O
I
