3.10.2

Specification

The following table describes the Input Specifications and the General Specifications for ST-
7518.
Table 21: ST-7518 Input and General Specifications
Items
Input Specification
Field Power Voltage
Indicators
Field Power Contacts Current
General Specification
Power Dissipation
Wiring
Weight
Module Size
Environment Condition
3.10.3

Example

If you have a setup where an external device near the RSTi module needs 24Vdc of power,
you can simply use the ST-7518 as a common module.

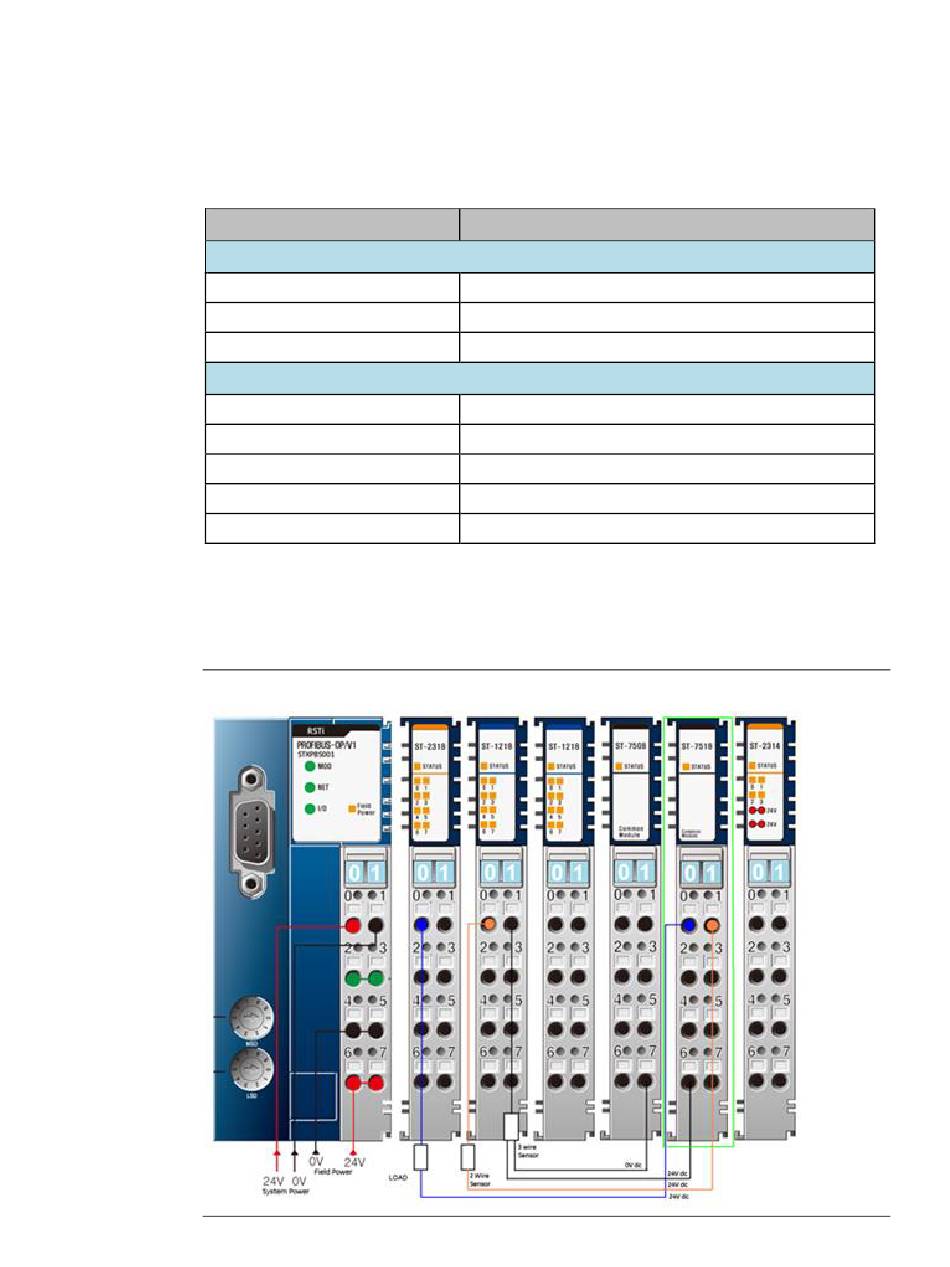

Figure 28: Example ST-7518
Power Modules

Specification

24Vdc
1 Green/Red LED, Module Status
Maximum 10A
Maximum 18mA @ 5Vdc
I/O Cable Maximum 2.0mm²(AWG 14)
64g Maximum
12mm x 99mm x 70mm
See "Environmental Specifications" in Appendix A.
