3.4.2

Specification

The following table describes the Input Specifications and the General Specifications for ST-
7118.
Table 9: ST-7118: Input and General Specifications
Items
Input Specification
Field Power Voltage
Contacts Current
Indicators
General Specification
Wiring
Weight
Module Size
Environment Condition
3.4.3 Example
If you have a setup where an external device near the RSTi module needs 24Vdc of power,
you can simply use the ST-7118 as a common module.
The ST-7118 provides 24Vdc of power.

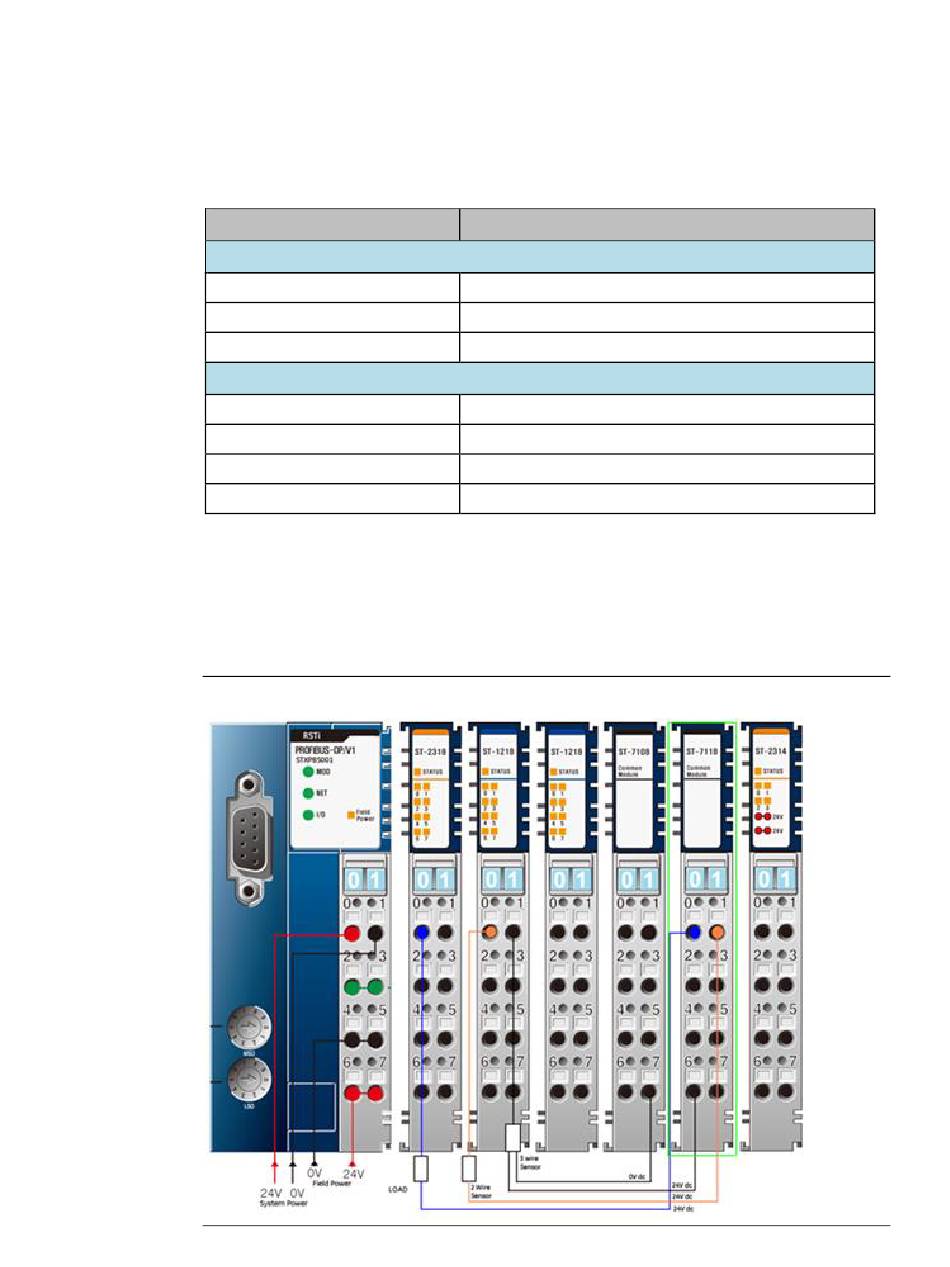

Figure 17: Example ST-7118
Power Modules
Specification
24Vdc
Maximum10A
No Indication
I/O Cable Maximum 2.0mm.(AWG 14)
65g Maximum
12mm x 99mm x 70mm
See "Environmental Specifications" in Appendix A.
