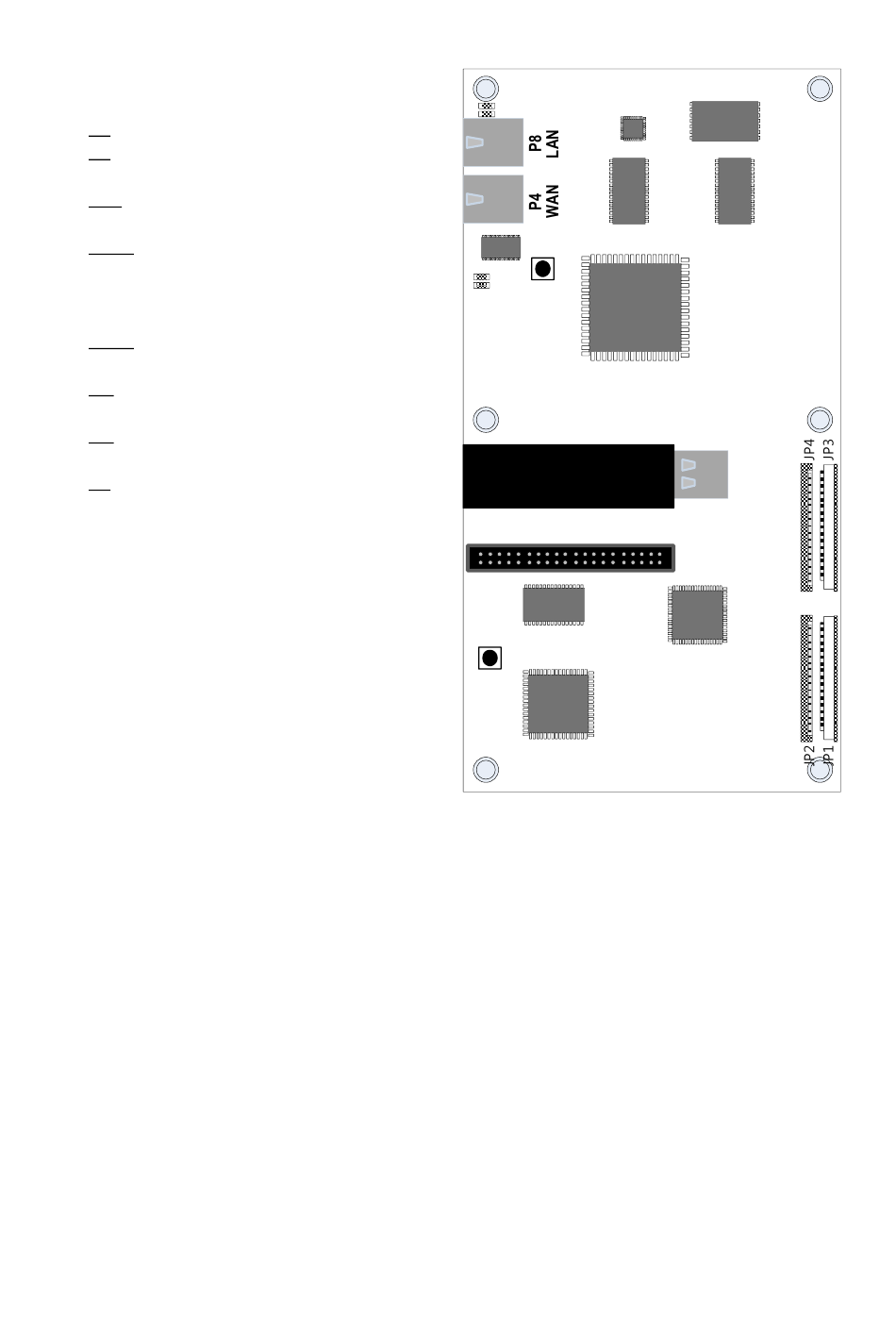

1.10.5 F0854 4-Loops of VM Card (VM-4)

Description:
P1 : Expanding Card F0658 (VM-4B)
P4 : WAN port, LED5,10 will light-on
when connecting.
P8 : LAN port LED3,4 will light-on
when connecting.
JP1,3: Connect to JP3 & JP4 of CPU
card or JP2 & JP4 of next
expanding card by the Ribbon
cable
JP2,4: Connect to next expanding card
by Ribbon cable.
K2: Press 1sec to initial the IP Card
hardware.
K3: Press 1sec to initial the expanding
card (VM-4B).
P7: USB disk
LED3
LED4
K3
LED10
LED5
F0854 VM card
U7
K2
U6
19
U10
U21 U20
U15
P7
P1
U23
