Operating basics

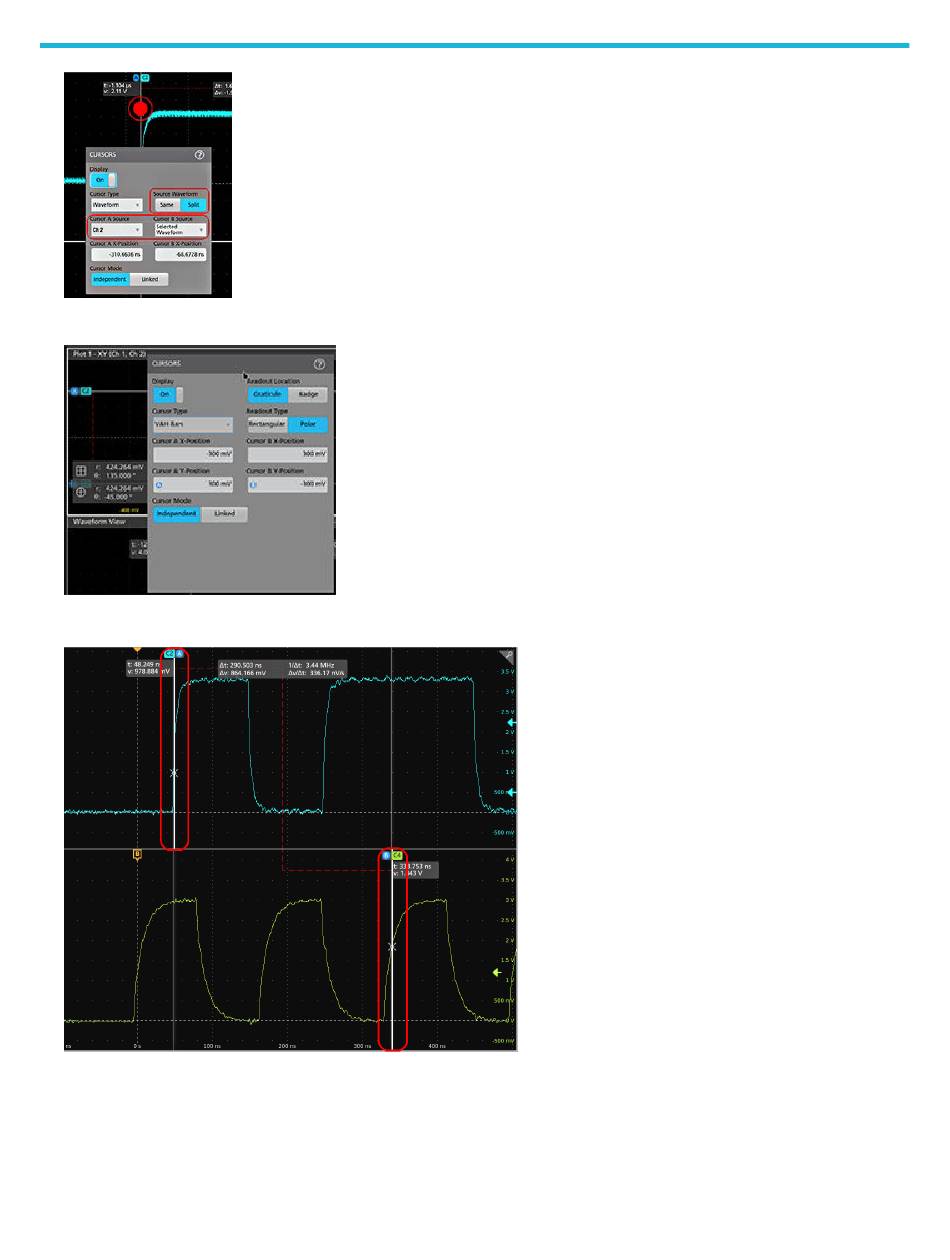

The cursor configuration menu in an XY plot.
6. To split the cursors between two waveforms, tap the Source field and select Split and select the source for each cursor. The cursors
are moved to the specified waveforms.
7. Tap the Help icon on the menu title for more information on the menu settings.
8. To stop showing cursors, push the front panel Cursor button, press and hold to open the right-click menu and turn cursors off, or open
the Cursors configuration menu and set Display to Off.
60
