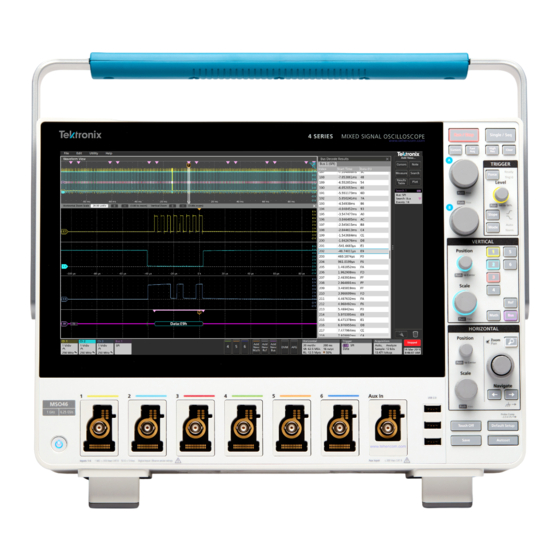

4 Series Mixed Signal Oscilloscopes
Declassification and Security Instructions
MSO44, MSO46
Warning: The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are
qualifiedto do so. Refer to all safety summaries prior to performing service.
Register now!
Click the following link to protect your product.
www.tek.com/register
*P 077172000*
077-1720-00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tektronix 4 Series
Summary of Contents for Tektronix 4 Series

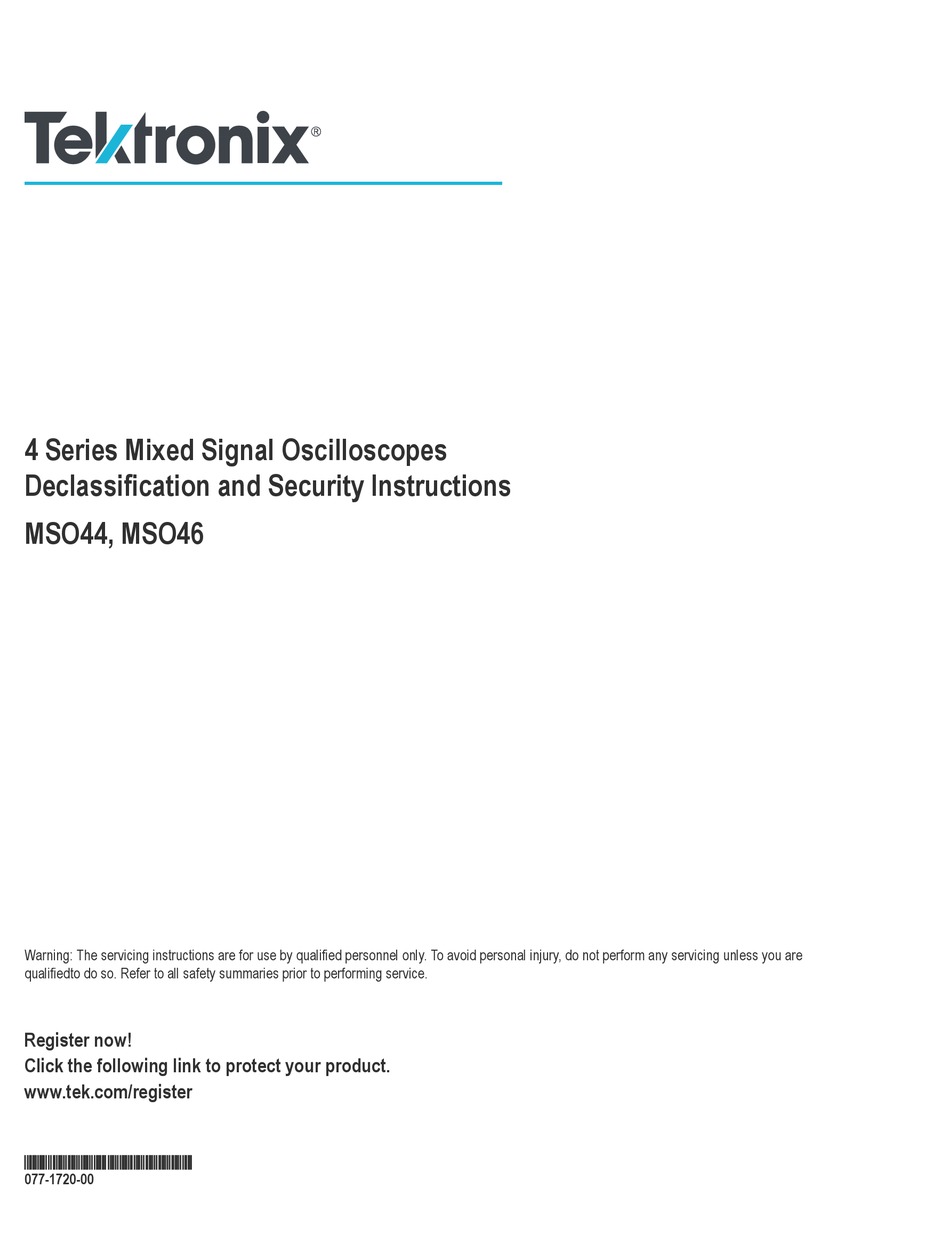

- Page 1 4 Series Mixed Signal Oscilloscopes Declassification and Security Instructions MSO44, MSO46 Warning: The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualifiedto do so. Refer to all safety summaries prior to performing service.
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved.
-
Page 3: Table Of Contents
Non-volatile and volatile memory device table terminology....................5 Memory devices..................................5 Media and data export devices.............................. 7 How to sanitize a working instrument............................ 8 How to sanitize a non-functional instrument..........................9 Repair charges....................................13 4 Series Mixed Signal Oscilloscopes Declassification and Security Instructions MSO44, MSO46... -
Page 4: Preface
Preface Preface This document helps customers with data security concerns to clear or sanitize 4 Series MSO instruments without factory-installed Option 4-SEC. This series of instruments contain a processor system with non-removable mass storage. These products have data storage (memory) devices and data export interfaces (USB and Ethernet). These instructions describe how to clear or sanitize the memory devices and disable the data output interfaces. -
Page 5: Clear And Sanitize Procedures
Written by Acquisition Unplug the Unplug the between processor board instrument for a instrument for a compute system minimum of 30 minimum of 30 system and seconds seconds acquisition system 4 Series Mixed Signal Oscilloscopes Declassification and Security Instructions MSO44, MSO46... - Page 6 Clearing settings. would disable Sanitizing would Acquisitio instrument disable instrument n board functionality functionality 4 Series Mixed Signal Oscilloscopes Declassification and Security Instructions MSO44, MSO46...
-
Page 7: Media And Data Export Devices
PC USBTMC back of the instrument Ethernet Transfer data and Directly Remote control using Ethernet port on back remote control of LXI, VISA, or Socket of instrument instrument. Server 4 Series Mixed Signal Oscilloscopes Declassification and Security Instructions MSO44, MSO46... -
Page 8: How To Sanitize A Working Instrument
5. Open the Utility > Security menu and clear the password used to access enabling/disabling ports and software updates. See the Help system for information on the Security menu functions. 6. Tap TekSecure Erase Memory to clear/reset internal memory. 7. Push the Default Setup button before powering off the instrument. 4 Series Mixed Signal Oscilloscopes Declassification and Security Instructions MSO44, MSO46... -
Page 9: How To Sanitize A Non-Functional Instrument
Store or destroy the Processor board in accordance with your organization’s guidelines. 3. Reassemble the instrument without the Processor board and return it to Tektronix. The instrument will then be repaired and calibrated as necessary. - Page 10 Gently pry apart the rear chassis assembly. The rear chassis is held in position mostly by the friction of the three BNC connectors. d. Continue prying the chassis apart until you have the two halves separated and can access the cables. e. Disconnect the two power cable connectors. 4 Series Mixed Signal Oscilloscopes Declassification and Security Instructions MSO44, MSO46...
- Page 11 Lift and pull the Processor board away from the chassis. It is still connected with cables, so be careful to not pull it too far. Carefully rotate the Processor board 180° counterclockwise to get access to the cable connectors. Disconnect the small white plastic cable connector. 4 Series Mixed Signal Oscilloscopes Declassification and Security Instructions MSO44, MSO46...
- Page 12 Reassemble the instrument by using the disassembly steps in reverse order. Tighten the Torx T-10 screws to 0.65 Newton meters. 10. Package the reassembled instrument, minus the Processor board, and ship to your nearest Tektronix Service Center for repairs. A...
-
Page 13: Repair Charges
Repair charges Repair charges Replacement of damaged and missing hardware is charged according to the rate at the time of replacement. 4 Series Mixed Signal Oscilloscopes Declassification and Security Instructions MSO44, MSO46...
