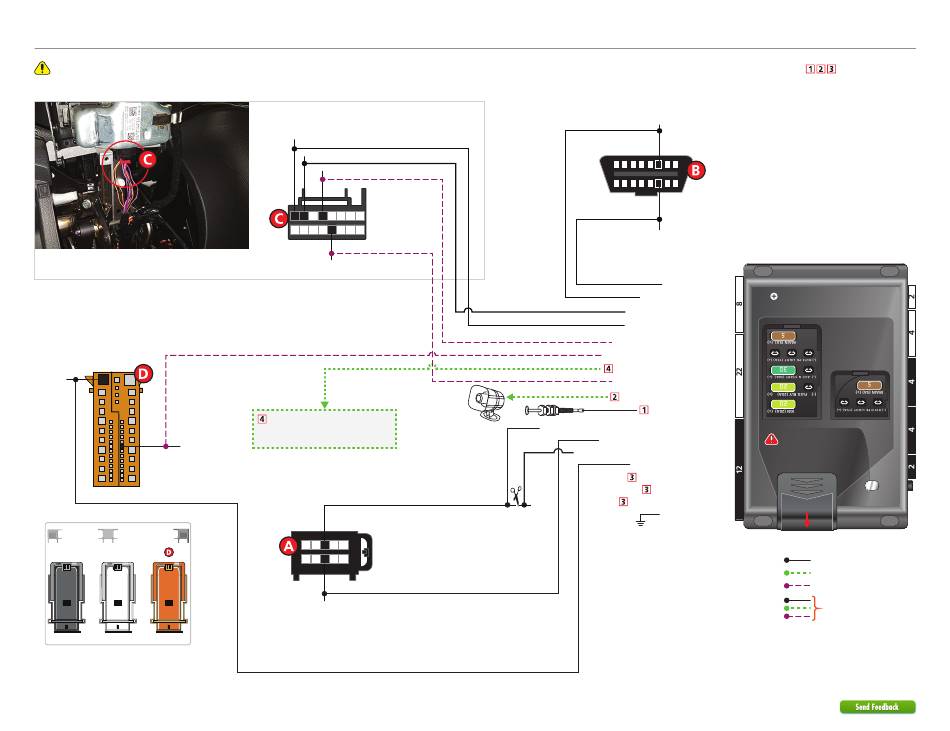

Wiring diagram

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
The ESCLCM
connector is
located at the
Electronic Steering
Column Lock
Module
behind the
steering column
trim.
VESCM
(brown connector)
42 25 1
(+) 12V:
Pin 42
28
29 12
(+) Brake:
Black/Red,
pin 17
52 41 24 11
VESCM
(under driver's side dash)
6 933.VW09 2.00.198.12 2018 Volkswagen Passat (Smart Key)
©2023 Directed. All rights
ESCLCM
(black connector under
steering column)
FT CAN High: Orange/Green, pin 16
FT CAN Low: Orange/Brown, pin 15
(-) PTS 1: Pin 13
16 15 14 13 12 11 10 9
8 7 6 5 4 3 2 1
(-) PTS 2: Pin 4
Refer to the Optional starter
disable connection section for
relay and connection details.
Parking Lights: Pin 8
10 9 8 7 6
5 4 3 2 1
(+) Parking Lights: Pin 3
Headlight Switch
(black connector)
OBDII Diagnostic
(connector side view)
HS CAN High:
Orange/Black, pin 6
1
9
HS CAN Low:
Orange/Brown, pin 14
HS CAN High: Tan/Black: 2
FT CAN Low: Orange/Brown: 3
FT CAN High: Orange/Green: 4
(-) PTS 1 Output: Lt. Green/Black: 1
(+) Brake Activation Output: White: 7
(-) GWA Output: Dk. Blue/Black: 9
(-) PTS 2 Output: Lt. Blue/Black: 10
(+) Siren Output: Brown/Red: 11
Hood Pin
Siren
Parking Lights Interrupt (connector side): Blue/White: 1
(+) Parking Lights Output: Blue/Red: 2
Parking Lights Interrupt (vehicle side): Blue: 3
(+) 12 Volt Input: Red: 6 & 12
Key Wrap: Lt. Green/Red: 7
Key Wrap: Lt. Green/White: 9
CUT
8
16
HS CAN Low: Tan: 1
A module can also be used for
this installation.
(-) Hood Input: Gray: 21
IMPORTANT:
Position the
fuses correctly!
Key Wrap: Lt. Green: 8
Slide to open
(-) Ground: Black: 10
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
).
