Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.
(For security-only programming, see next section.)

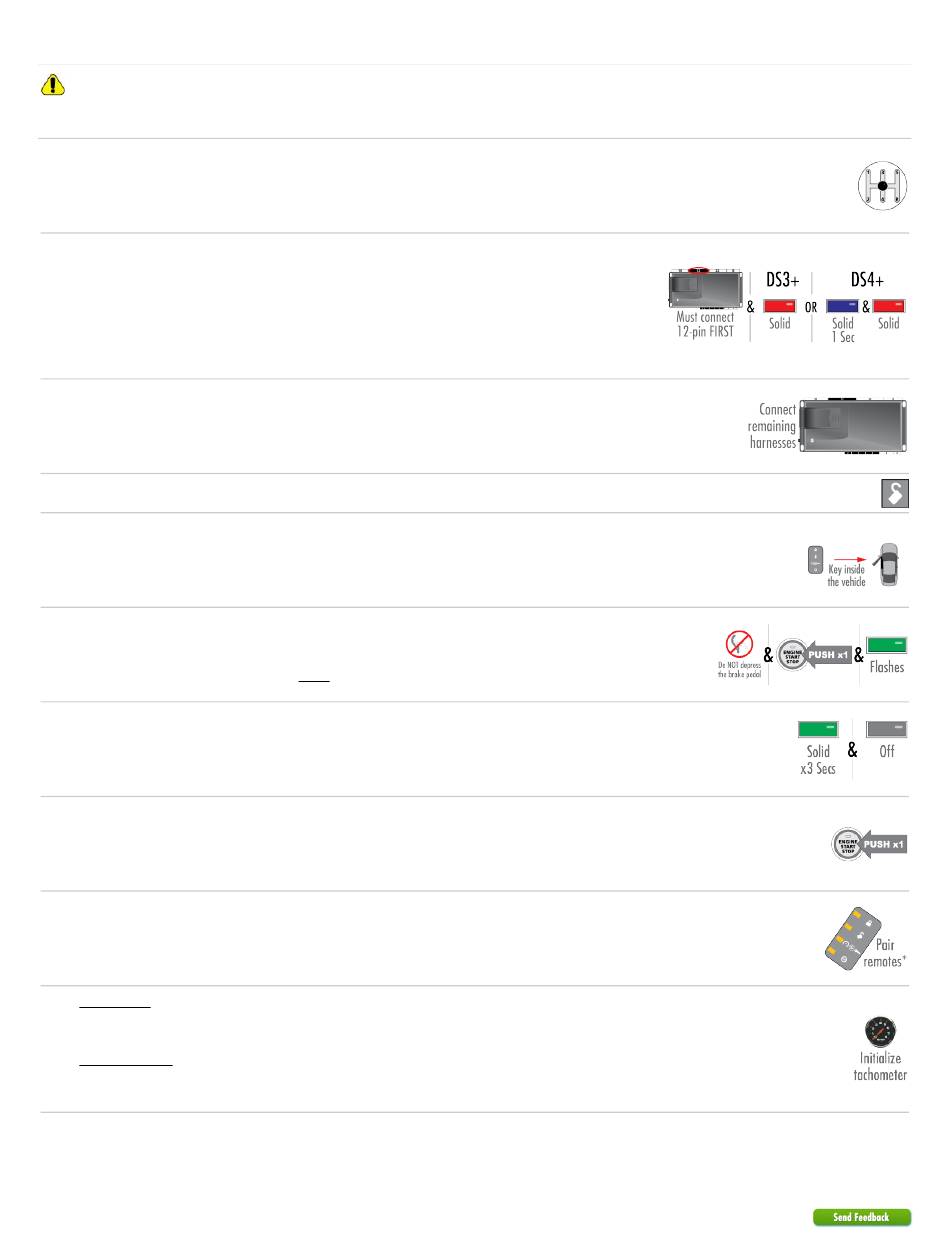

Please ensure that the vehicle is in a safe location, and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
DS3+: Connect the 12-pin main power harness to the DS3+ module FIRST.
Wait until the LED turns ON solid red before proceeding to the next step.
2
DS4+: Connect the 12-pin main power harness to the DS4+ module FIRST.
The LED will turn ON solid Blue for 1 second to confirm Bluetooth communication.
Wait until the LED turns ON solid red before proceeding to the next step.
3
Connect the remaining harnesses to the module.
4
Press the Unlock button on the OEM remote.
5
Make sure the key is inside the vehicle.
Important: Do NOT press the brake pedal.
6
Press the Push-to-Start (PTS) button once to turn the ignition ON. The LED flashes green.
The green LED turns ON for 3 seconds and shuts off once the module is successfully
7
programmed.
8
Turn the key to OFF once the module is successfully programmed.
Pair remotes (if applicable). For information on how to pair a specific remote, please refer to
9
its corresponding owner documentation, which can be found inside the product packaging of
the complete system or on www.directechs.com.*
DATA Tach: Firmware using DATA Tach, the tachometer is preprogrammed for the vehicle
and no further action is required. For instructions on how to adjust tach or use Virtual tach,
refer to "Initialize Virtual Tach" (not needed with hardwired or data tach applications).
10
Hardwire Tach: Firmware using the Violet/White Hardwire Tach input will require
programming. For instructions on how to program or adjust tach or use Virtual tach, refer to
"Initialize Virtual Tach" (not needed with hardwired or data tach applications).
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
