Wiring Configuration Examples
Operating Guide | VLT® HVAC Drive FC 102

7.1.13 Wiring Configuration for a Fixed Variable Speed Pump

L1/L2/L3
L1/L2/L3
L1/L2/L3
Drive

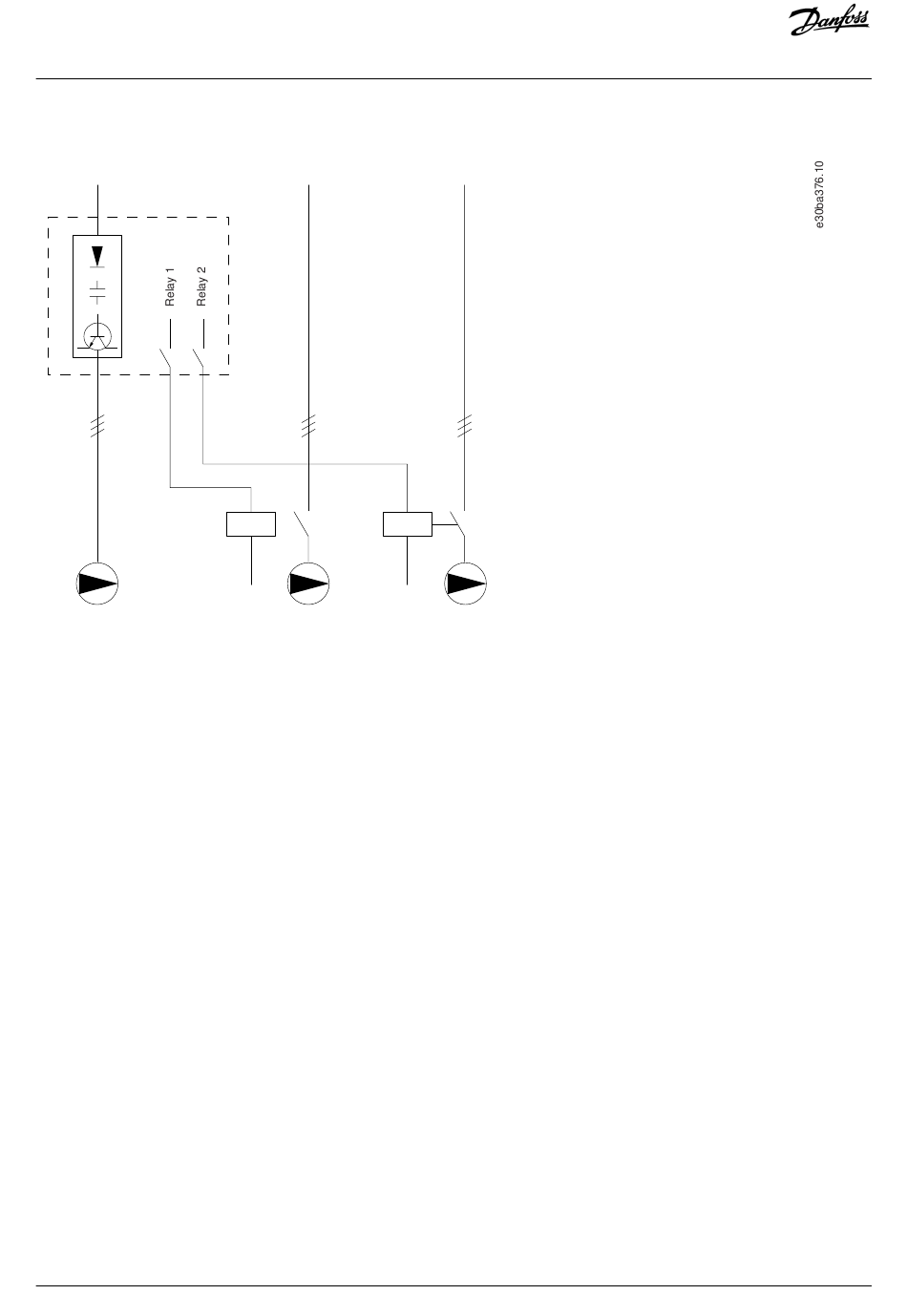

Illustration 43:
Fixed Variable Speed Pump Wiring Diagram
92 | Danfoss A/S © 2020.01
AQ275556502253en-000101 / 130R0706
