Introduction

Dialog's DA14AVDDECTDEVKT is a development kit for the DA14AVDDECT module. This module is
a member of the wireless module family, operating on the interference free DECT frequency band
(1.9 GHz) and it can be used in hosted or embedded Audio, Voice, and Data (AVD) applications.
There are three stacks available for the AVD module, falling into two categories, the Audio Data (AD)
stacks (Tour Guide stack and Public Address stack) and the Voice Data (VD) stack.
The development kit has the AVD module mounted on carrier boards. The carrier board has an ARM
debug interface and a USB-UART interface for programming and debugging the AVD module. The
development kit also has some pre-defined push buttons and LEDs tailored for the example
applications, Li-Ion battery connectors, and 3.5 mm audio jacks. This development kit targets users
who are familiar with application-level software programming and does not require detailed
understanding of the DECT protocol.
3.1

Development Kit Content

Figure 1 and Figure 2 show the components of the development kit and Table 1 contains an
overview of the parts.

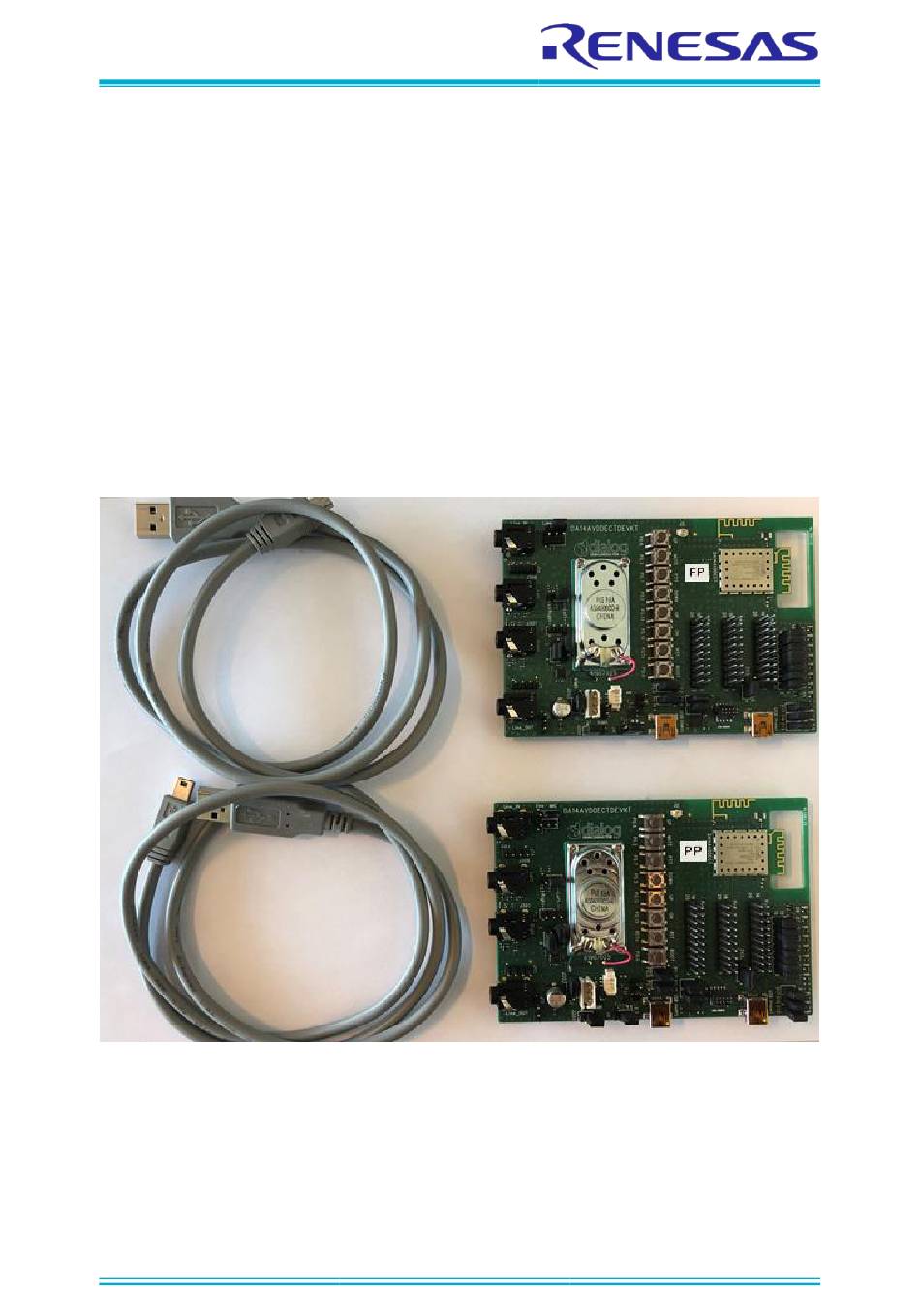

Figure 1: DA14AVDDECTDEVKT HW Overview
