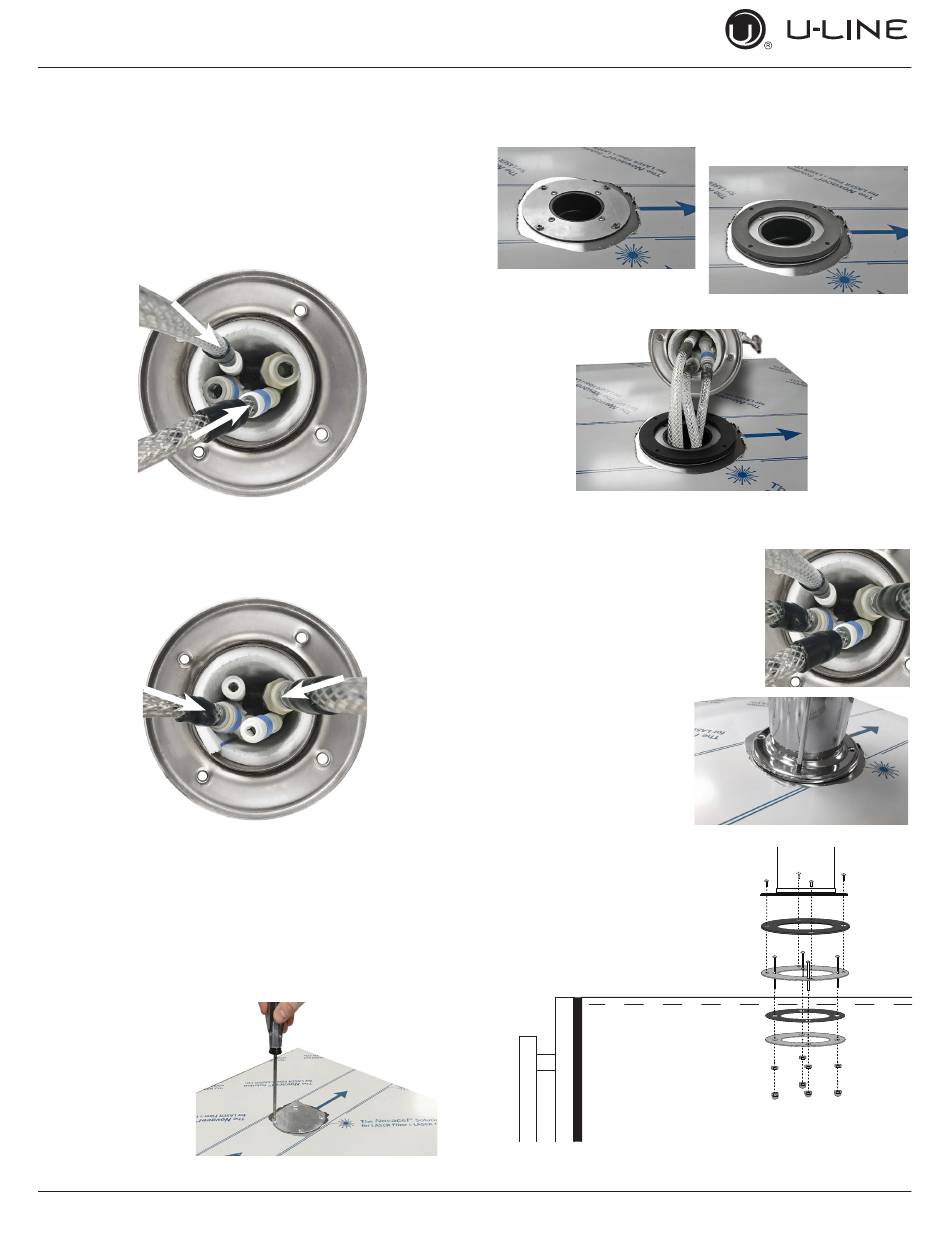

Connect Hoses to Tower
Make all the hose connections to the tower prior to
installing tower onto refrigerator.
1. Attach gas jumper hoses - line up and press in firmly.
Note: The connectors at the ends of the gas jumper hoses
are narrower to correspond with the connections in the
tower.
2. Attach liquid jumper hoses - line up and press in
firmly.
Note: The connectors at the end of the liquid jumper hoses
are wider to correspond with the connections in the tower.
Install Tower on Refrigerator
Do not remove all the protective film on the stainless
exterior until the tower is installed.
1. Remove four Phillips screws (secured with nuts on
the inside of the refrigerator) and lift off cap to reveal
tower mounting
hole. Peel back
enough film for
tower to clear.
General Installation
2. Install adapter plate to unit with 4 long screws and nuts
(a) then place foam rubber gasket on top - align holes (b).
a
3. Insert all 4 hoses into the opening.
Note: 2 of the connections inside tower have color banding to
help keep coffee and gas hoses organized. Mark or tie together
2 matching nitrogen and coffee hoses prior to inserting into
refrigerator.
4. Install tower to unit with 4
short Philips screws.
NOTE: It will be necessary
to press down firmly while
tightening the screws.
Compressing the foam rubber
gasket ensures an airtight seal
between the unit and the tower.
4 Short Screws
Rubber Gasket
4 Long Screws
Rubber Gasket
9
b
Adapter Plate
Metal Ring
4 Nuts
4 Acorn Nuts
