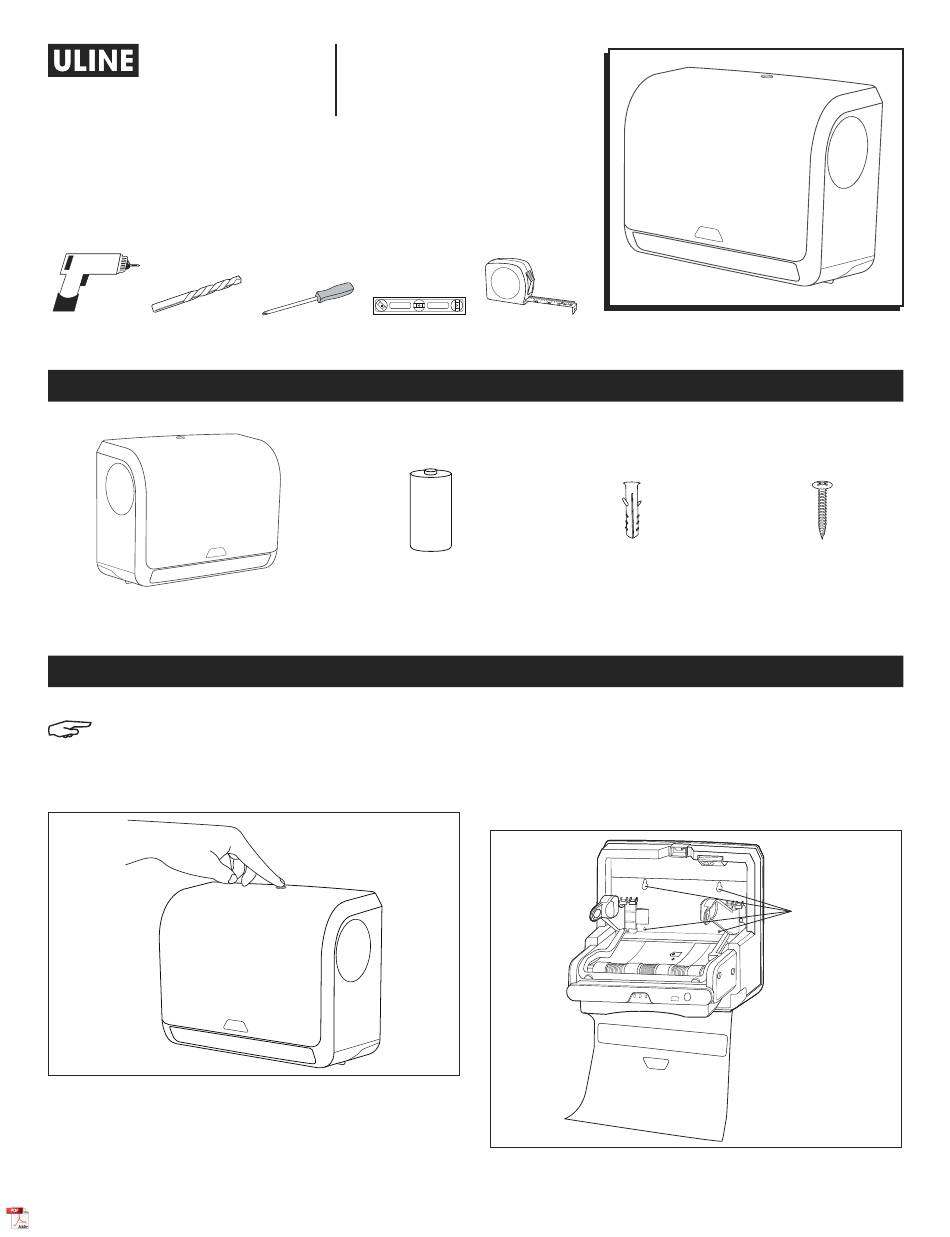

H-8795
PACIFIC BLUE ULTRA™
AUTOMATIC PAPER
TOWEL DISPENSER
TOOLS NEEDED
Drill
Drill Bit
Dispenser x 1
NOTE: Recommended mounting height is 44"
from the floor to bottom of dispenser.
1.
Press button on top of dispenser to open cover.
(See Figure 1)
Figure 1
PAGE 1 OF 9
1-800-295-5510
uline.com
Phillips Screwdriver
Level
D-Cell Alkaline
Battery x 4
MOUNTING INSTRUCTIONS
Tape Measure
PARTS
Wall Anchor x 4
2. Open dispenser cover completely and hold
dispenser to ideal mounting place on wall.
(See Figure 2)
3. Mark four holes on the wall where screws will be
inserted. (See Figure 2)
Figure 2
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
Screw x 4
Mounting
Holes
0521 IH-8795
