USER GUIDE
QUICK START GUIDE

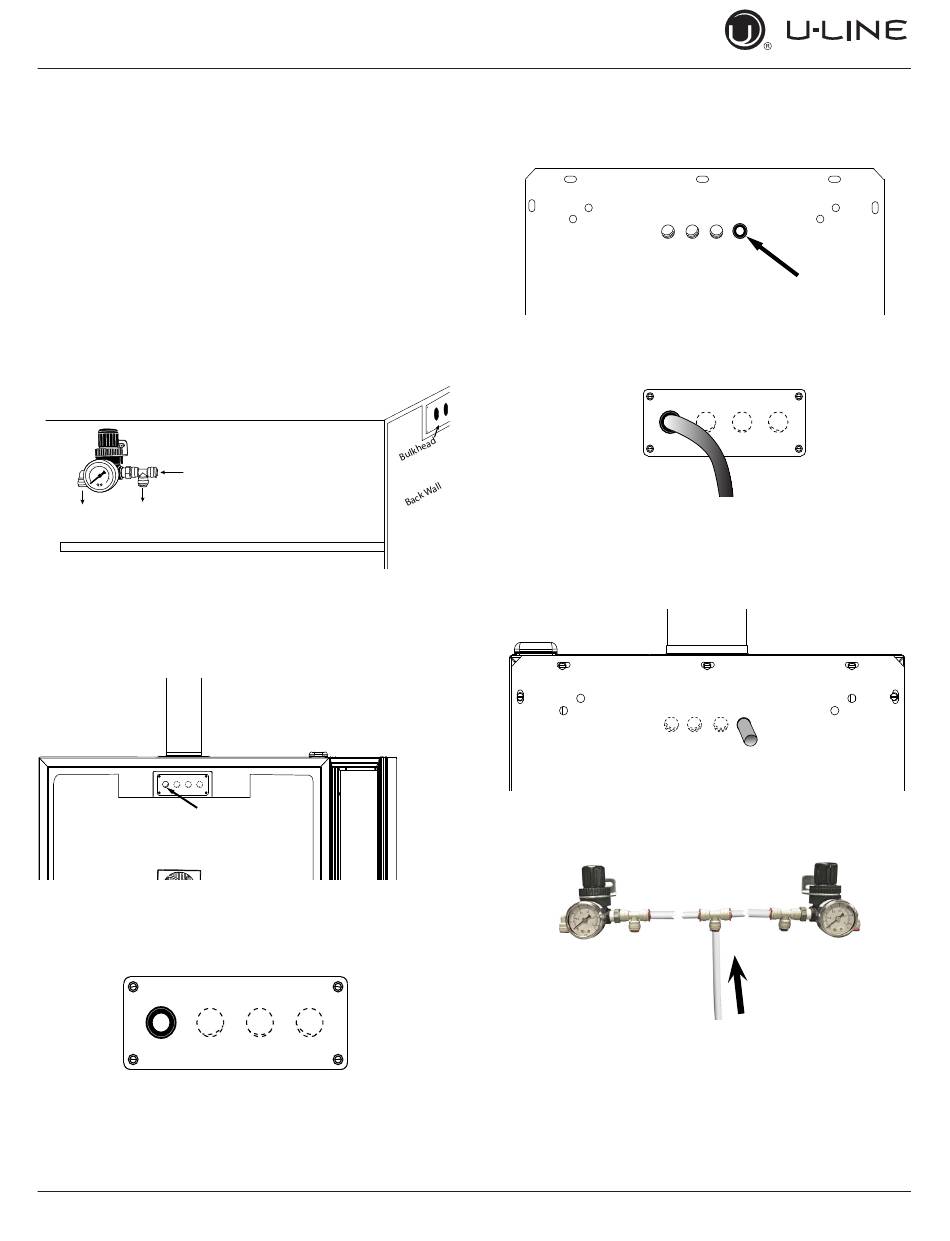

Connecting External Nitrogen
Source
Note: Connection to an external Nitrogen source
requires drilling one hole through the pre-
installed bulkhead located near the top of the
back wall. This will allow a grommet sized to
.453" hose to fit.
Install Infuser Regulators
1. Align each infuser regulator with pre-drilled holes in
upper left corner of each side wall. Use 2 screws to
attach each regulator.
Nitrogen IN
From Source
Nitrogen OUT
Nitrogen OUT
To Ball-tap Keg
To Tower
Prepare bulkhead and back panel
1. Inside the cabinet, drill out 1 of the
bulkhead.
BULKHEAD
2. Insert gasket ring into drilled-out hole and apply food-
grade lubricant to the inside of the gasket.
3. In the back of the unit, remove back panel.
General Installation
To Tap Tower
Interior Left
Side Wall
⁹⁄16
" holes in the
4. Insert gasket ring into hole that corresponds to the
drilled-out hole in bulkhead and apply food-grade
lubricant to inside of gasket ring.
5. Inside cabinet push nitrogen hose through drilled-out
hole.
Inside
6. At the back of the unit, apply food-grade lubricant to
inside of gasket ring and push nitrogen hose through.
7. Re-install back panel.
8. Connect nitrogen hose to external nitrogen source.
T-Connector
9. Continue with inside connections (see CONNECT
NITROGEN TO KEG in this manual)
14
u-line.com
Outside
Connects to
external nitrogen
