U-Line GOJO CXI H-2895 Instructions Manual

H-2895
GOJO CXI™ TOUCH-FREE
®
SOAP DISPENSER – 1,500 ML
IF THERE IS NO HOLE IN COUNTER
1. Prior to drilling, examine below the counter to ensure
adequate clearance for the new unit.
2. Drill a 1" diameter hole in the countertop.
NOTE: The hole can be drilled to either the
right or left of the faucet, ensuring adequate
clearance for the counter assembly.
3. Clean the counter area where the new hole is
located.

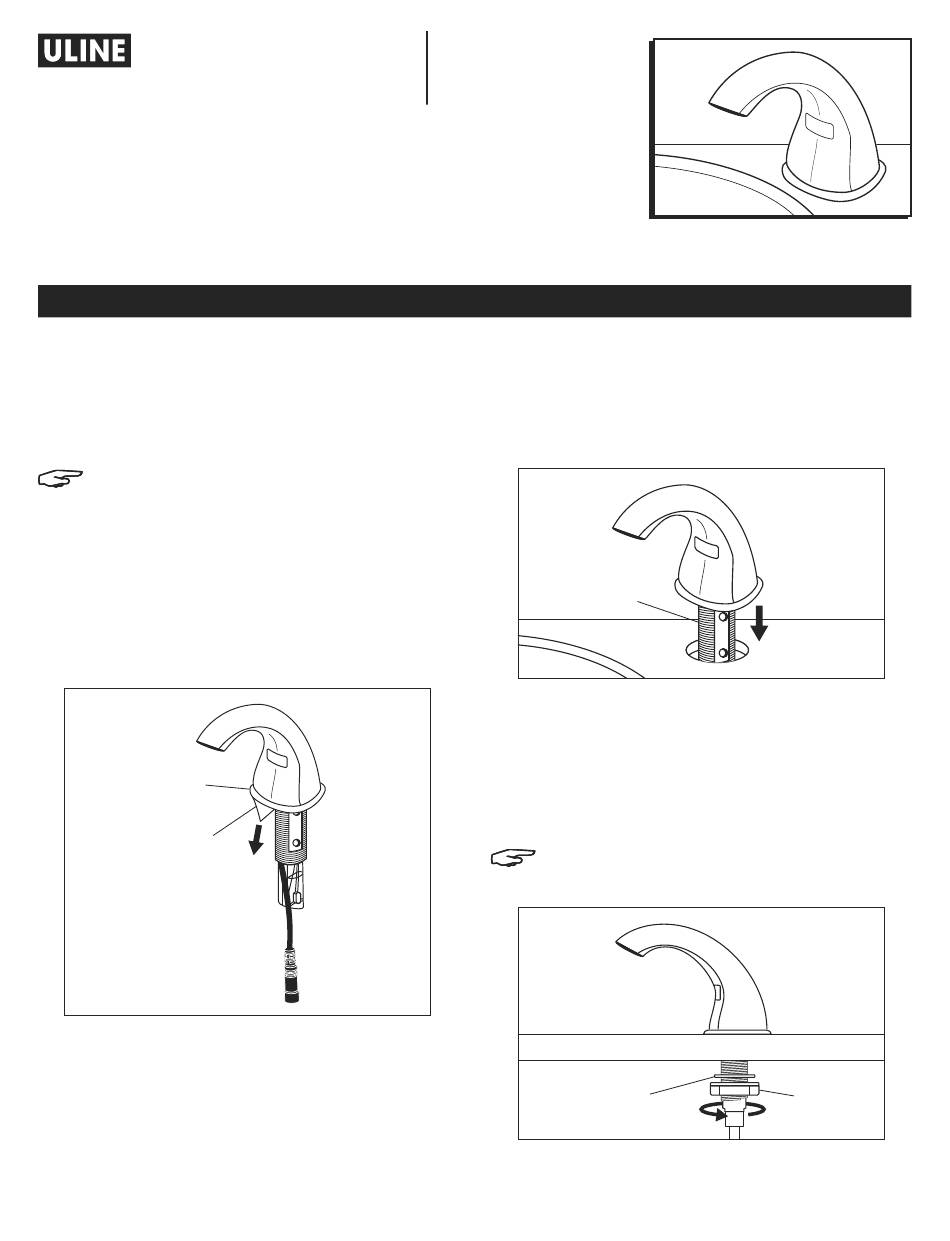

DISPENSER INSTALLATION
1. Remove the paper liner from the bottom of the
gasket. (See Figure 1)
Figure 1
Gasket
Paper Liner
PAGE 1 OF 9
1-800-295-5510
uline.com
INSTRUCTIONS
2. Feed the data cable and shank of dispenser
assembly through the hole in the countertop. Point
spout of dispenser into the sink bowl and press
down firmly on dispenser to securely attach it to the
countertop. (See Figure 2)
Figure 2
3. From underneath the counter, feed the lock washer
and then the mounting nut over the data cable and
onto the threaded shank of the dispenser assembly.
Ensure the "teeth" on the washer will touch the
bottom of the countertop and the nut threads easily
onto the shank. Hand-tighten the nut securely.
(See Figure 3)
NOTE: If the nut is hard to turn by hand, it is
upside down.
Figure 3
Lock Washer
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
Shank
Mounting
Nut
0624 IH-2895
