QUICK START GUIDE
Environmental Requirements
This model is intended for indoor/interior applications only
and is not to be used in installations that are open/
exposed to natural elements.
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce
the unit's ability to reach low temperatures and/or reduce
ice production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
evaporate when the humidity drops.
CAUTION
!
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
Electrical
SHOCK HAZARD — Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, fire, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.

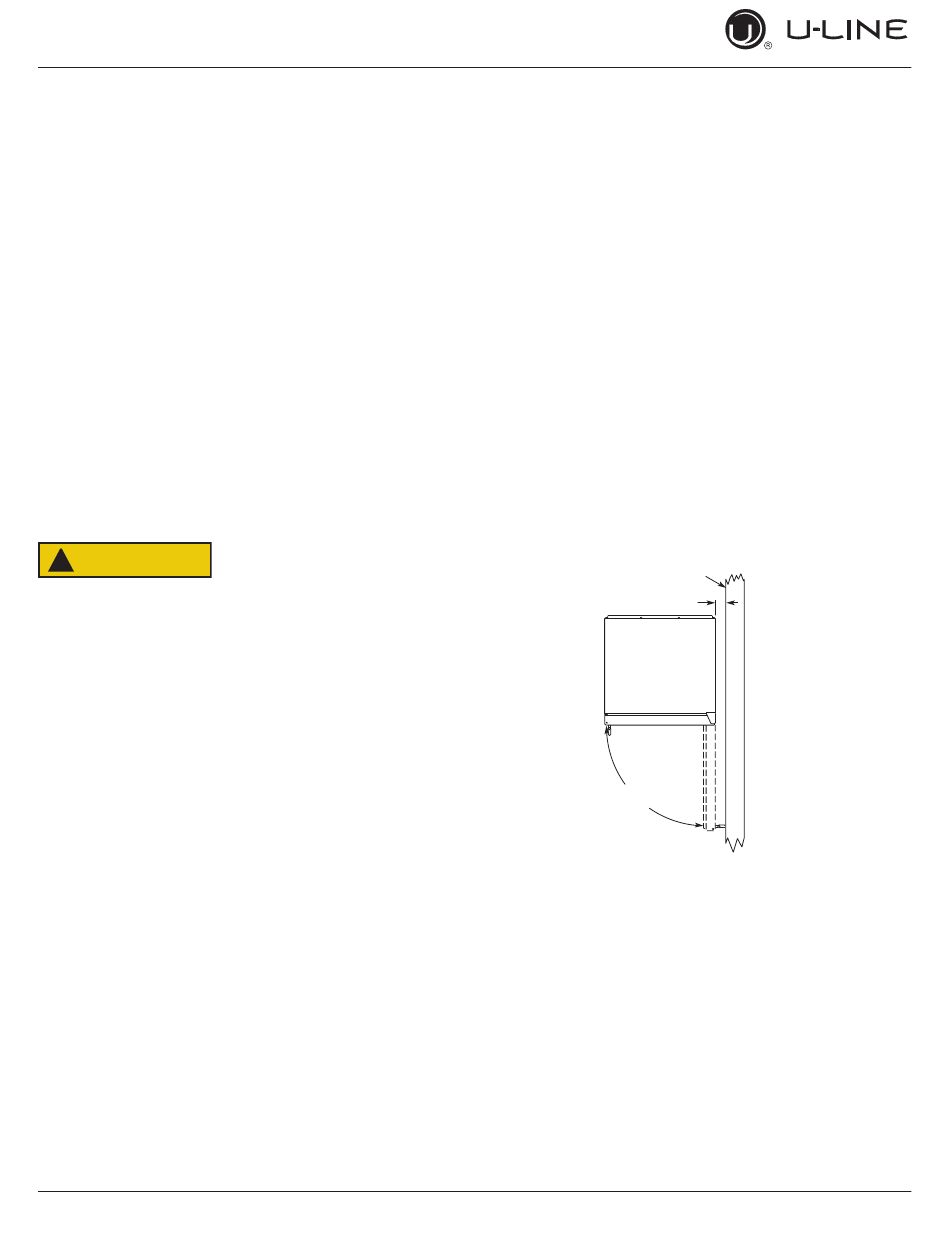

16-1/2"
90°
Door Swing
NOTICE
Electrical installation must observe all state and
Black and White Models
local codes. This unit requires connection to a
2115WC Models
grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.
Wall
1/4" Min.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current). An
individual, properly grounded branch circuit or circuit
21"
breaker is recommended. A GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
it could be prone to nuisance tripping. However, be sure
to consult your local codes.
16-1/2"
See CUTOUT & PRODUCT DIMENSIONS for recommended
90°
Door Swing
receptacle location.
Door Swing
Black, White and Wood Overlay
2175R(F) & 2275WC Models
Wall
1/4" Min.
(6 mm)
90°
Door Swing
Integrated
2175BEV
Units have a zero clearance for the door to open 90
Wall
1/4" Min.
installed adjacent to cabinets.
(6 mm)
Stainless steel models require 2-1/8" (54 mm) door
clearance to accommodate the handle if installed next to a
21"
wall.
25-1/2"
90°
Door Swing
5
Wood Overlay
16-1/2"
90°
Door Swing
Stainless Models
Wall
2" Min.
21"
16-1/2"
90°
Door Swing
Stainless Steel
Wall
2-1/8" Min.
(54 mm)
90°
Door Swing
Stainless Steel, Black and White
Wall
2-1/8" Min.
(54 mm)
21"
25-1/2"
90°
Door Swing
Stainless Steel
u-line.com
