5.4.20.2 Switching between Push/Pull and intermediate drive

Do not carry out any unauthorised repairs or modifications!
To avoid injury and equipment damage, the unit must only be repaired or modified by
specialist, skilled persons!
The warranty becomes null and void in the event of unauthorised interference.
• Appoint only skilled persons for repair work (trained service personnel)!
Dangers resulting from failure to perform test after conversion!
Before reconnection, "Inspection and Testing during Operation" according to
IEC/BS EN 60974-4 "Arc welding systems – Inspection and Testing during Operation"
has to be performed!
• Perform test to IEC / DIN EN 60974-4!
The plugs are located directly on the M3.7X printed circuit board.
Plug Function
on X24 Operation with Push/Pull welding torch (factory setting)
on X23 Operation with intermediate drive
5.5

TIG welding

5.5.1

Welding task selection

5.5.1.1

Welding current setting

099-00HPXQ-EW501
07.05.2021
Functional characteristics
WARNING

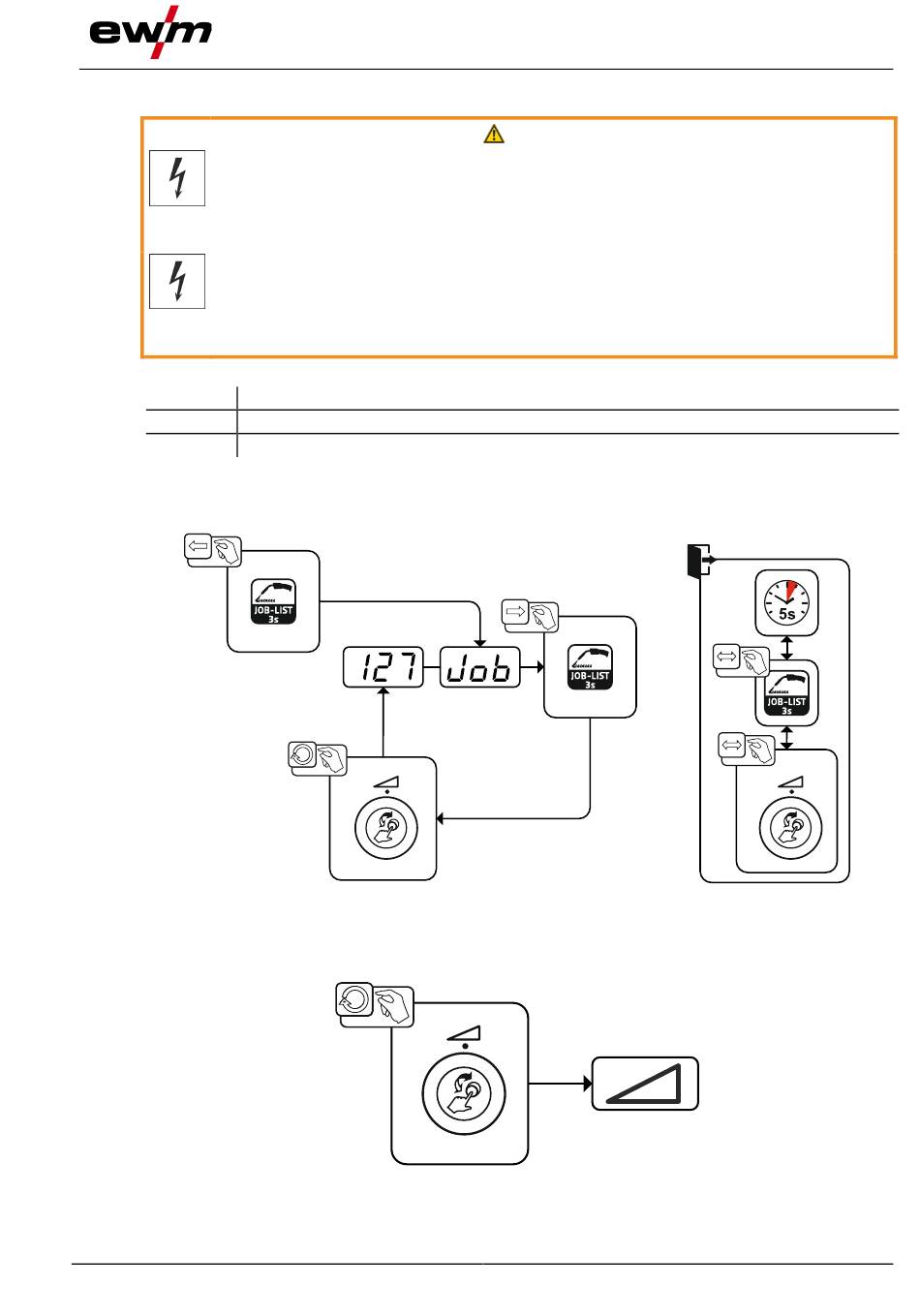

Figure 5-40
Figure 5-41
TIG welding
55
