Maximum Controls MAX 1200FS PRO Installation Manual page 36

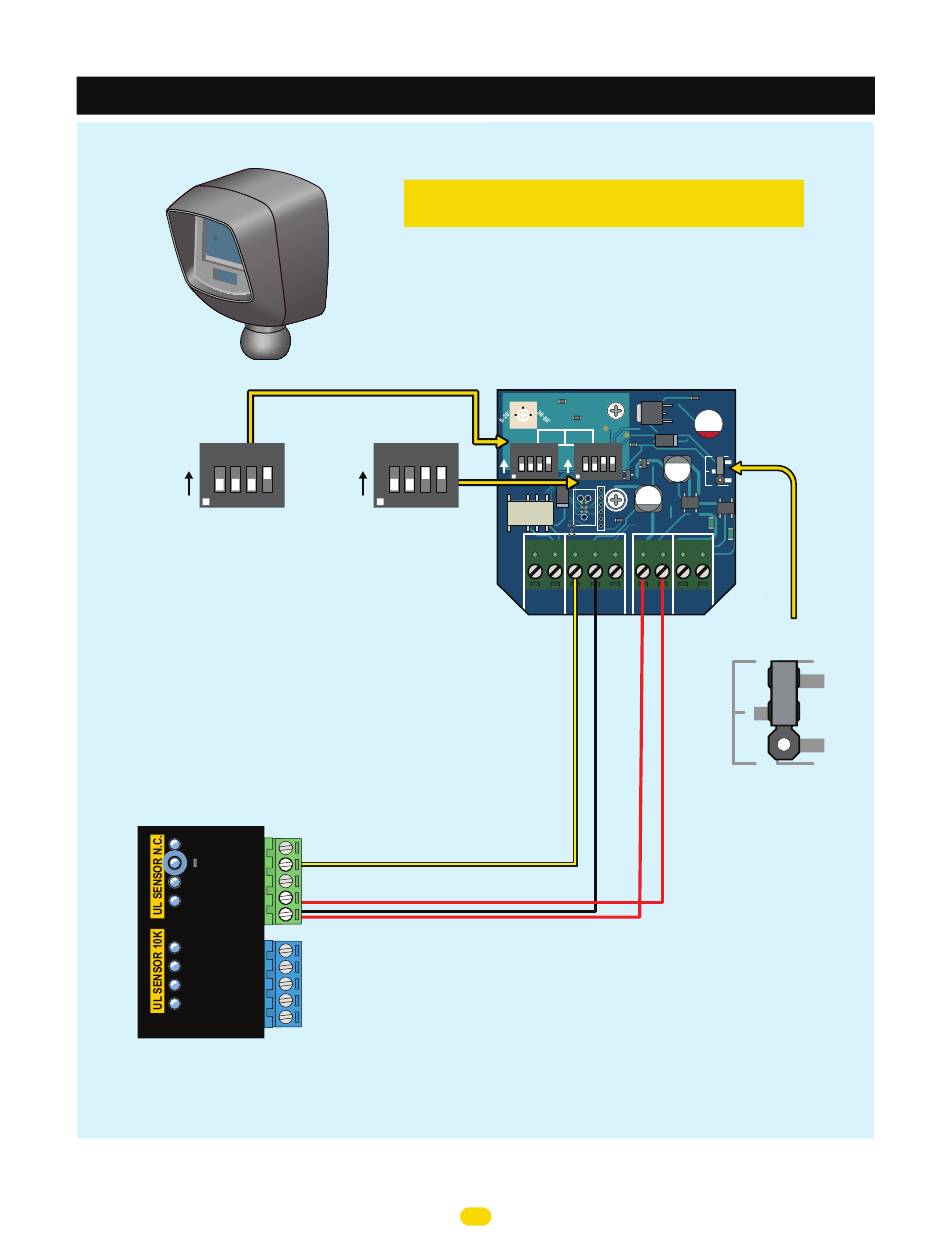

EMX IRB-RET2 wiring
SW1
1 - OFF 1 - OFF
1 2 3 4
ON
2 - OFF 2 - OFF
3 - OFF 3 - ON
4 - ON 4 - ON
NOTE: Power must be cycled NOTE: Power must be cycled
when switches are changed. when switches are changed.
OPEN ONLY NC
PHOTO CLS NC
P P PHOTO CLS P P NC
OPEN/CLS NC
12VDC OUT
GND
GND
OPEN ONLY 10K
CLS ONLY 10K
OPEN/CLS 10K
12VDC OUT
GND
IMPORTANT: Photocell MUST be powered by
12VDC OUT or it will NOT be MONITORED.
NOTE: To meet the UL 325 2018 standard, Type B1 Non-Contact sensor
entrapment protection device MUST be MONITORED by the gate operator.
Photocell (Reflector)
SW2
R1
1 2 3 4
1 2 3 4 ON
ON
PULSE
E
28
UL 325 2018 Standard - MAX 1200 FS PRO/1700 FS PRO Matrix III Install Version 2.2G
CLOSING Direction
SW1 SW2
JP1
1 2 3 4
ON
4W
2W
ENERGIZED
- VRX + - VTX +
C NC COM NO
4W
2W
JP1
Rev 10-03-23
