Maximum Controls MAX 1200FS PRO Installation Manual page 12

1B
connect chain to gate (rear pos)

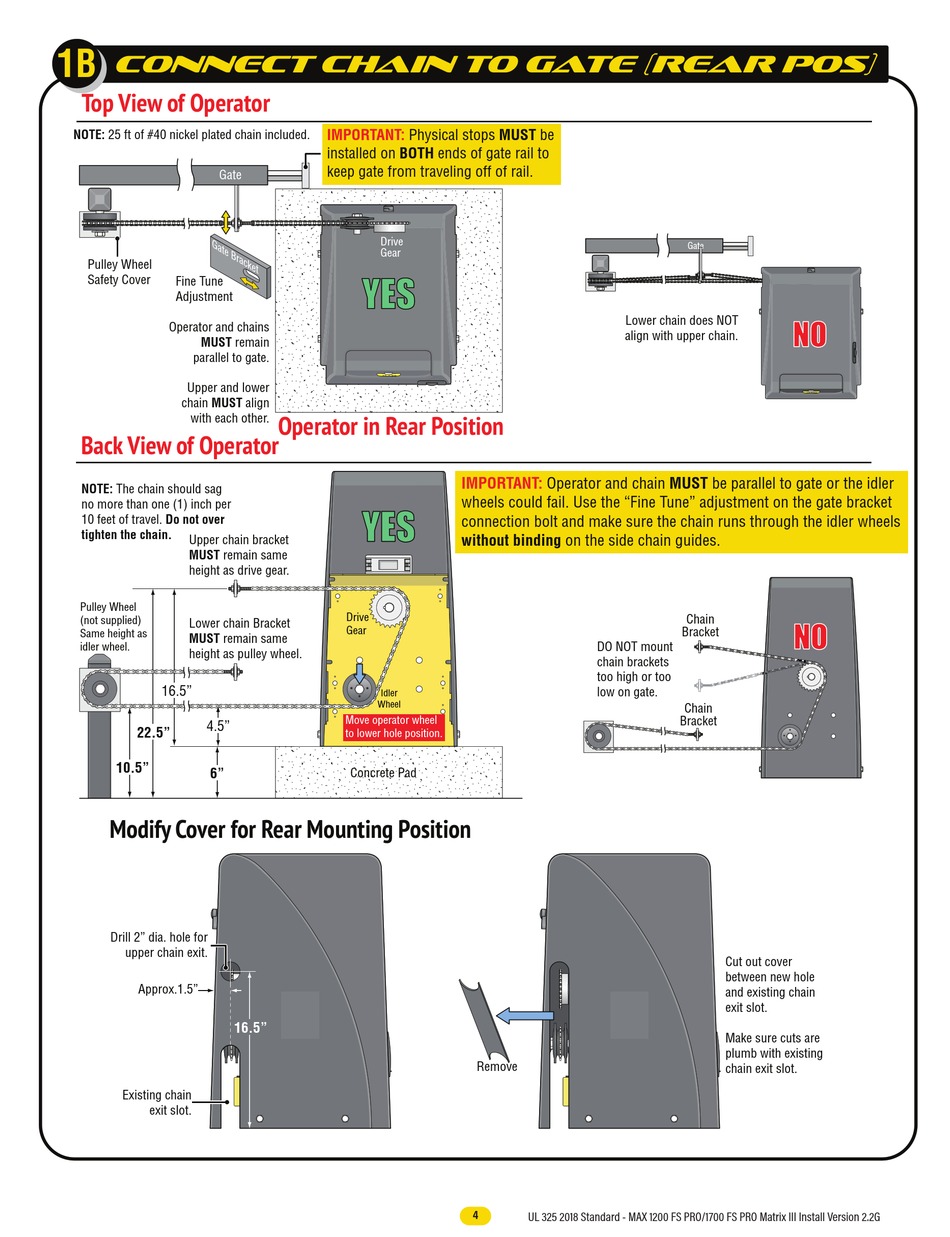

Top View of Operator
NOTE: 25 ft of #40 nickel plated chain included.
Gate
G a
t e B
Pulley Wheel
Safety Cover
Fine Tune
Adjustment
Operator and chains
MUST remain
parallel to gate.
Upper and lower
chain MUST align
with each other.
Back View of Operator
NOTE: The chain should sag
no more than one (1) inch per
10 feet of travel. Do not over
tighten the chain.
Upper chain bracket
MUST remain same
height as drive gear.
Pulley Wheel
(not supplied)
Lower chain Bracket
Same height as
MUST remain same
idler wheel.
height as pulley wheel.
16.5"
4.5"
22.5"
10.5"
6"
Modify Cover for Rear Mounting Position
Drill 2" dia. hole for
upper chain exit.
Approx.1.5"
16.5"
Existing chain
exit slot.
IMPORTANT: Physical stops MUST be
installed on BOTH ends of gate rail to
keep gate from traveling off of rail.
Drive
Gear
r a c
k e t
YES YES
Operator in Rear Position
YES YES
Drive
Gear
Idler
Wheel
Move operator wheel
to lower hole position.
Concrete Pad
Lower chain does NOT
align with upper chain.
IMPORTANT: Operator and chain MUST be parallel to gate or the idler
wheels could fail. Use the "Fine Tune" adjustment on the gate bracket
connection bolt and make sure the chain runs through the idler wheels
without binding on the side chain guides.
DO NOT mount
chain brackets
too high or too
low on gate.
Remove
UL 325 2018 Standard - MAX 1200 FS PRO/1700 FS PRO Matrix III Install Version 2c
4
4
UL 325 2018 Standard - MAX 1200 FS PRO/1700 FS PRO Matrix III Install Version 2.2G
Gate
NO NO
Chain
NO NO
Bracket
Chain
Bracket
Cut out cover
between new hole
and existing chain
exit slot.
Make sure cuts are
plumb with existing
chain exit slot.
