5
continued

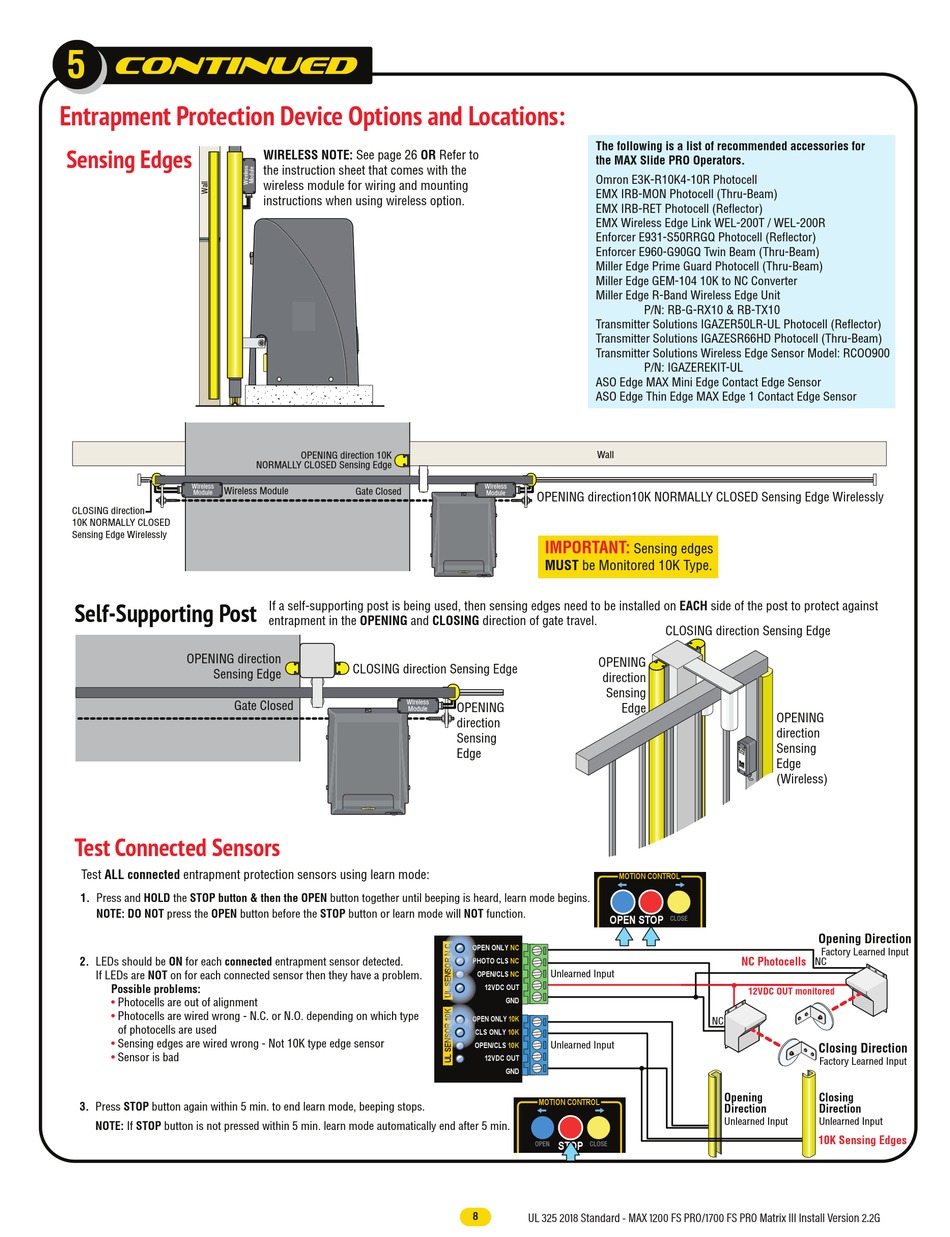

Entrapment Protection Device Options and Locations:
Sensing Edges
Wireless
Wireless Module
Module
CLOSING direction
10K NORMALLY CLOSED
Sensing Edge Wirelessly
Self-Supporting Post
OPENING direction
Sensing Edge
Gate Closed
Test Connected Sensors
Test ALL connected entrapment protection sensors using learn mode:
1. Press and HOLD the STOP button & then the OPEN button together until beeping is heard, learn mode begins.
NOTE: DO NOT press the OPEN button before the STOP button or learn mode will NOT function.
2. LEDs should be ON for each connected entrapment sensor detected.
If LEDs are NOT on for each connected sensor then they have a problem.
Possible problems:
• Photocells are out of alignment
• Photocells are wired wrong - N.C. or N.O. depending on which type
of photocells are used
• Sensing edges are wired wrong - Not 10K type edge sensor
• Sensor is bad
3. Press STOP button again within 5 min. to end learn mode, beeping stops.
NOTE: If STOP button is not pressed within 5 min. learn mode automatically end after 5 min.
WIRELESS NOTE: See page 26 OR Refer to
the instruction sheet that comes with the
wireless module for wiring and mounting
instructions when using wireless option.
OPENING direction 10K
NORMALLY CLOSED Sensing Edge
Gate Closed
If a self-supporting post is being used, then sensing edges need to be installed on EACH side of the post to protect against
entrapment in the OPENING and CLOSING direction of gate travel.
CLOSING direction Sensing Edge
Wireless
Module
The following is a list of recommended accessories for
the MAX Slide PRO Operators.
Omron E3K-R10K4-10R Photocell
EMX IRB-MON Photocell (Thru-Beam)
EMX IRB-RET Photocell (Reflector)
EMX Wireless Edge Link WEL-200T / WEL-200R
Enforcer E931-S50RRGQ Photocell (Reflector)
Enforcer E960-G90GQ Twin Beam (Thru-Beam)
Miller Edge Prime Guard Photocell (Thru-Beam)
Miller Edge GEM-104 10K to NC Converter
Miller Edge R-Band Wireless Edge Unit
Transmitter Solutions IGAZER50LR-UL Photocell (Reflector)
Transmitter Solutions IGAZESR66HD Photocell (Thru-Beam)
Transmitter Solutions Wireless Edge Sensor Model: RCOO900
ASO Edge MAX Mini Edge Contact Edge Sensor
ASO Edge Thin Edge MAX Edge 1 Contact Edge Sensor
Wall
Wireless
Module OPENING direction10K NORMALLY CLOSED Sensing Edge Wirelessly
IMPORTANT:
Sensing edges
MUST be Monitored 10K Type.
OPENING
direction
Sensing
OPENING Edge
direction
Sensing
Edge
MOTION CONTROL
OPEN STOP
O O O O OPEN ONLY O NC
P P P PHOTO CLS P NC
Unlearned Input
OPEN/CLS NC
12VDC OUT
GND
OPEN ONLY O O O O O 10K
CLS ONLY C 10K
Unlearned Input
OPEN/CLS 10K
12VDC OUT
GND
MOTION CONTROL
STOP
OPEN CLOSE
UL 325 2018 Standard - MAX 1200 FS PRO/1700 FS PRO Matrix III Install Version 2c
8
8
UL 325 2018 Standard - MAX 1200 FS PRO/1700 FS PRO Matrix III Install Version 2.2G
P/N: RB-G-RX10 & RB-TX10
P/N: IGAZEREKIT-UL
CLOSING direction Sensing Edge
OPENING
direction
Sensing
M G
M on L- TX
20
ito
G at re d
e Li
nk
Edge
M ill
er Ed
ge
(Wireless)
CLOSE
Opening Direction
Factory Learned Input
NC Photocells
NC
12VDC OUT monitored
NC
Closing Direction
Factory Learned Input
Opening Closing
Direction Direction
Unlearned Input Unlearned Input
10K Sensing Edges
