5
GND

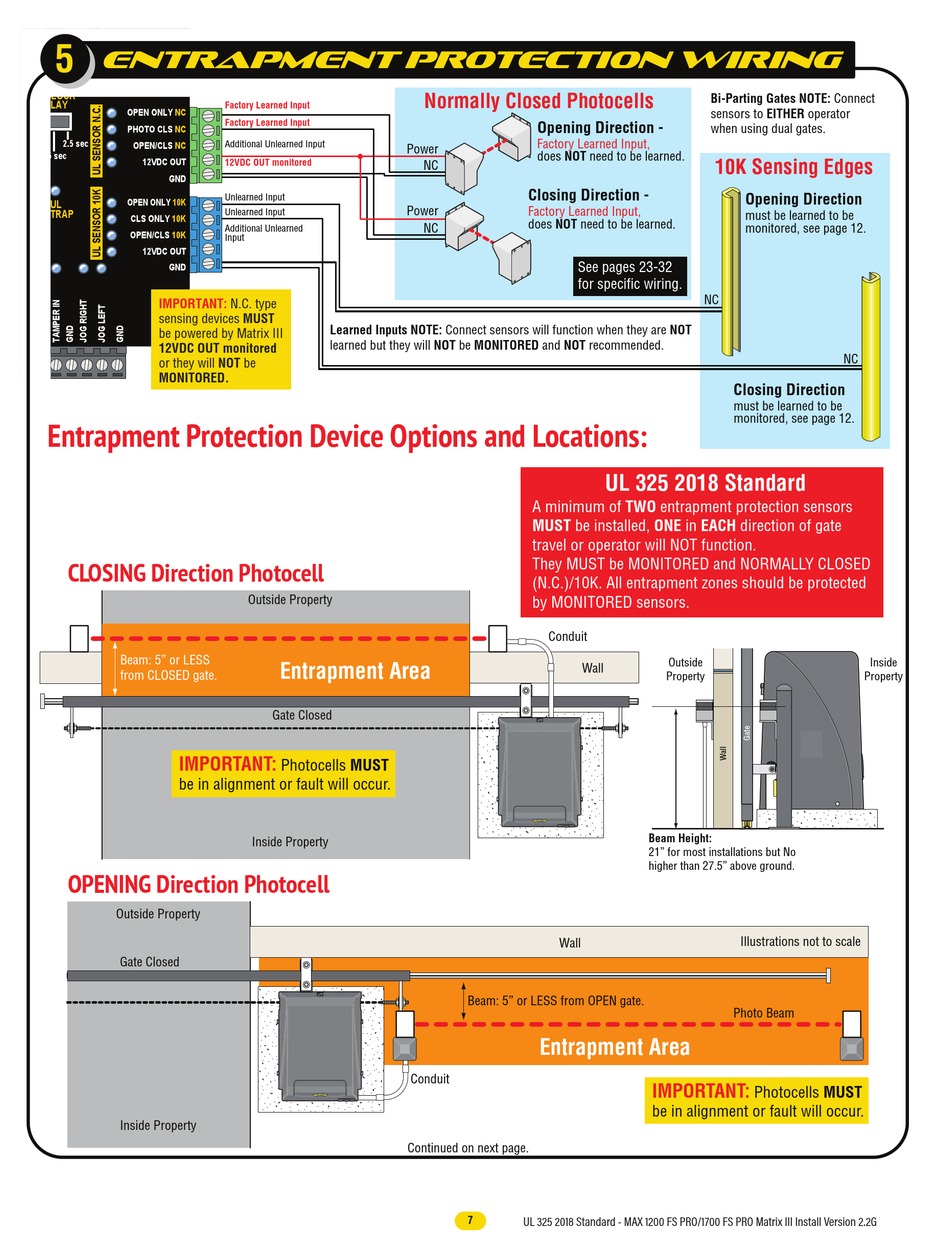

entrapment protection wiring
LEFT RIGHT
MAG NO
LOCK
COM
NC
MAGLOCK
DELAY
OPEN ONLY NC
PHOTO CLS NC
OFF 2.5 sec
OPEN/CLS NC
1.5 sec
12VDC OUT
GND
OPEN ONLY 10K
UL
ENTRAP
CLS ONLY 10K
OPEN/CLS 10K
12VDC OUT
GND
IMPORTANT:
sensing devices MUST
be powered by Matrix III
12VDC OUT monitored
or they will NOT be
MONITORED.
Entrapment Protection Device Options and Locations:
CLOSING Direction Photocell
Beam: 5" or LESS
from CLOSED gate.
IMPORTANT:
be in alignment or fault will occur.
OPENING Direction Photocell
Outside Property
Gate Closed
Inside Property
Factory Learned Input
Factory Learned Input
Additional Unlearned Input
12VDC OUT monitored
Unlearned Input
Unlearned Input
Additional Unlearned
Input
N.C. type
Learned Inputs NOTE: Connect sensors will function when they are NOT
learned but they will NOT be MONITORED and NOT recommended.
Outside Property
Entrapment Area
Gate Closed
Photocells MUST
Inside Property
Normally Closed Photocells
Opening Direction -
Factory Learned Input,
Power
does NOT need to be learned.
NC
Closing Direction -
Power Factory Learned Input,
does NOT need to be learned.
NC
See pages 23-32
for specific wiring.
A minimum of TWO entrapment protection sensors
MUST be installed, ONE in EACH direction of gate
travel or operator will NOT function.
They MUST be MONITORED and NORMALLY CLOSED
(N.C.)/10K. All entrapment zones should be protected
by MONITORED sensors.
Conduit
Wall
Wall
Beam: 5" or LESS from OPEN gate.
Entrapment Area
Conduit
Continued on next page.
UL 325 2018 Standard - MAX 1200 FS PRO/1700 FS PRO Matrix III Install Version 2c
7
7
UL 325 2018 Standard - MAX 1200 FS PRO/1700 FS PRO Matrix III Install Version 2.2G
Bi-Parting Gates NOTE: Connect
sensors to EITHER operator
when using dual gates.
10K Sensing Edges
Opening Direction
must be learned to be
monitored, see page 12.
NC
Closing Direction
must be learned to be
monitored, see page 12.
UL 325 2018 Standard
Outside
Property
Beam Height:
21" for most installations but No
higher than 27.5" above ground.
Illustrations not to scale
Photo Beam
IMPORTANT:
Photocells MUST
be in alignment or fault will occur.
NC
Inside
Property
