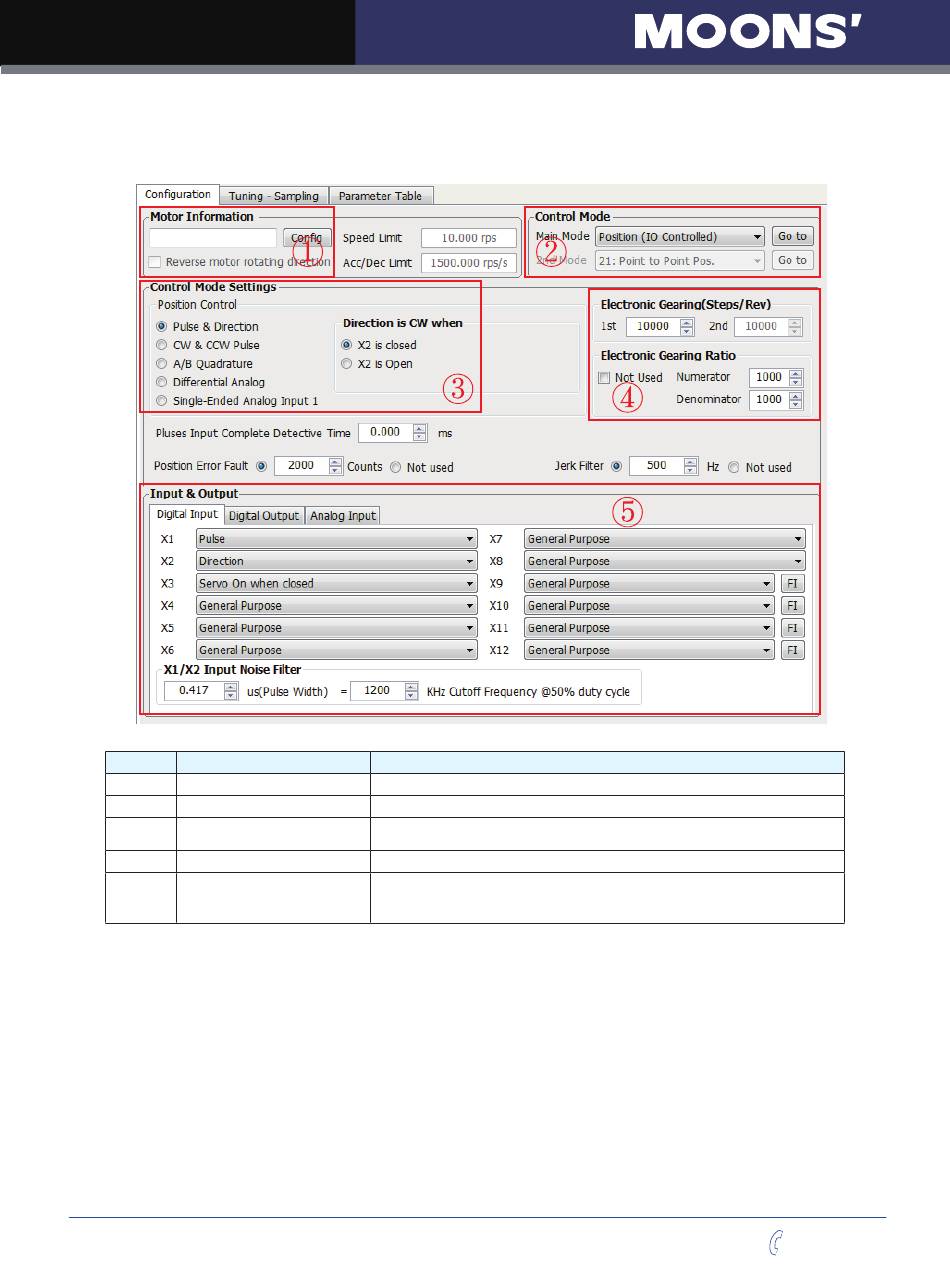

7.2.9 Software Configuration For Position Mode

The M servo suite can help you easily configured the drive and motor, as well as tuning parameters.
Step Operation
1st Configure motor
2nd Choose control mode
3rd Control mode configuration
4th Set electronic gearing ratio
5th Set analog signal
Rev. 1.1
9/13/2021
Choose your motor number. Please refer to 2.3 motor number for details.
In control mode, choose "Position" for position mode.
Choose specified input pulse type, Please refer to 4.8.3 CN2 input signal
connections and and 7.2 position mode.
Please refer to 7.2.5 for electronic gearing ratio settings.
Function, or digital input/output functions. In Input/Output functions to
setup. Please refer to 4.8.3 CN2 connections, and 7.2 position mode and
7.1 general function settings.
