CHAPTER 7– SERVICE AND REPAIR
Cover Replacement
Removal:
1. Using a ¼ inch HEX driver remove the cover corner bolts and open the MultiLoad III/RCU
III DIV2 Hardware.
2. Remove the tie wraps securing the display cable to base.
3. Disconnect the Display Cable from the main board by pressing the tab to release.
4. Using a #2 Philps screwdriver disconnect the Ground wire at the cover.
5. Disconnect the keypad cable at the barrier by pressing the tab to release.
6. Close the cover and reinsall the upper right hand screw tightening enough to hold the cover
in place.
7. Using a 1/8 inch HEX driver remove the two bottom hinge knuckle screws and the bottom
hinge knuckle from the cover.
8. With your hand supporting the cover remove the upper right cover bolt.
9. Gently lift the cover off the top hinge.
Installation:
1. Reverse removal procedure to reinstall cover.
58

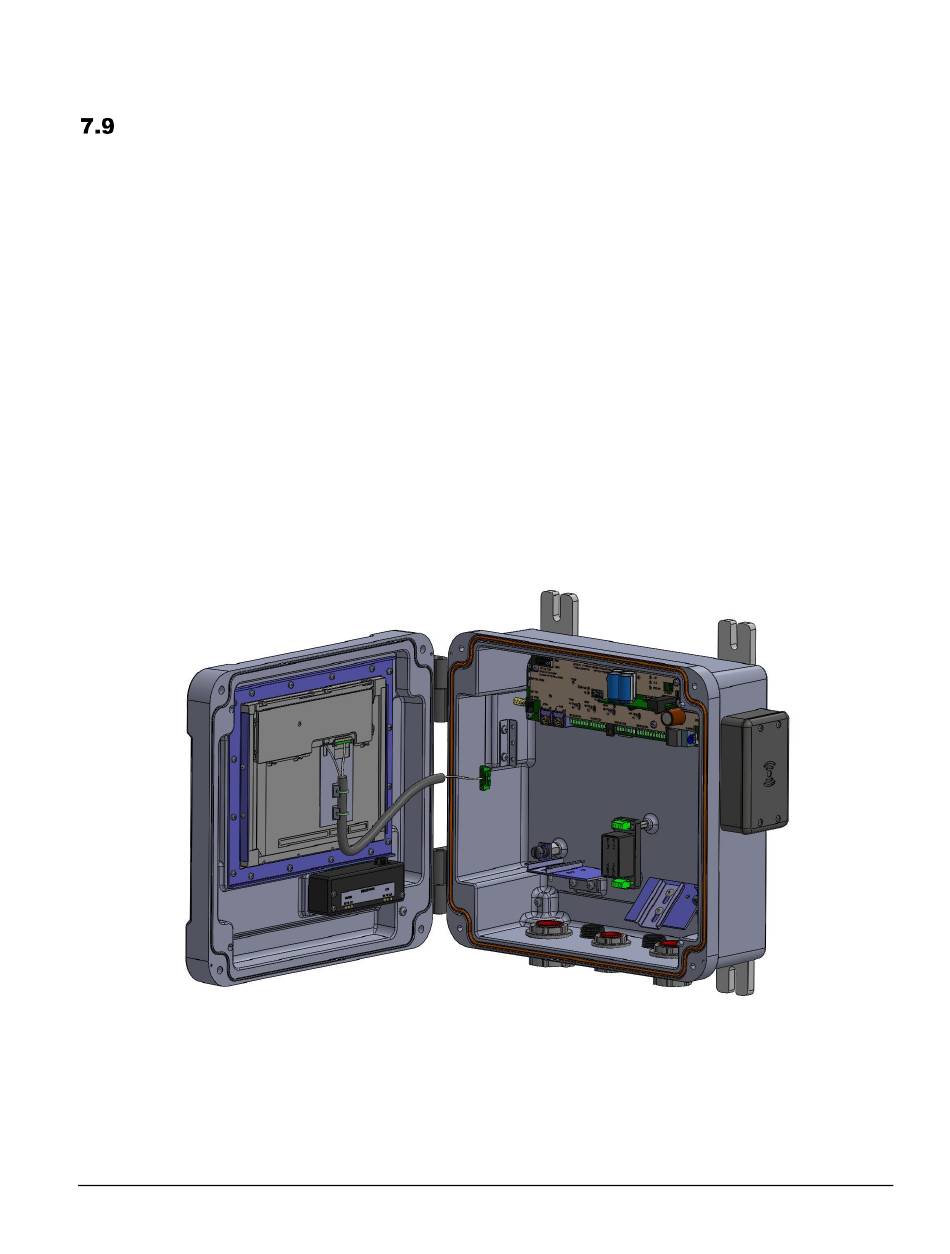

Figure 7.10
Disconnect Display and Keypad Cables
MultiLoad III/RCU III DIV2 Hardware Installation Guide - Part # 6074
