Keypad Barrier Replacement
Removal:
Note: Power MUST be moved when removing or installing the keypad barrier or electrical damage
to the keypad barrier will result.
1. Disconnect the external keypad barrier cable by pressing the tab to release.
2. Remove the three screws using a #2 Philps screwdriver and lift away the keypad barrier.
3. Disconnect the internal keypad barrier cable by pressing the tab to release.
Installation:
1. Reconnect the internal keypad barrier cable.
2. Align the keypad barrier and install the three mouting screws.
3. Reconnect the external keypad barrier cable.

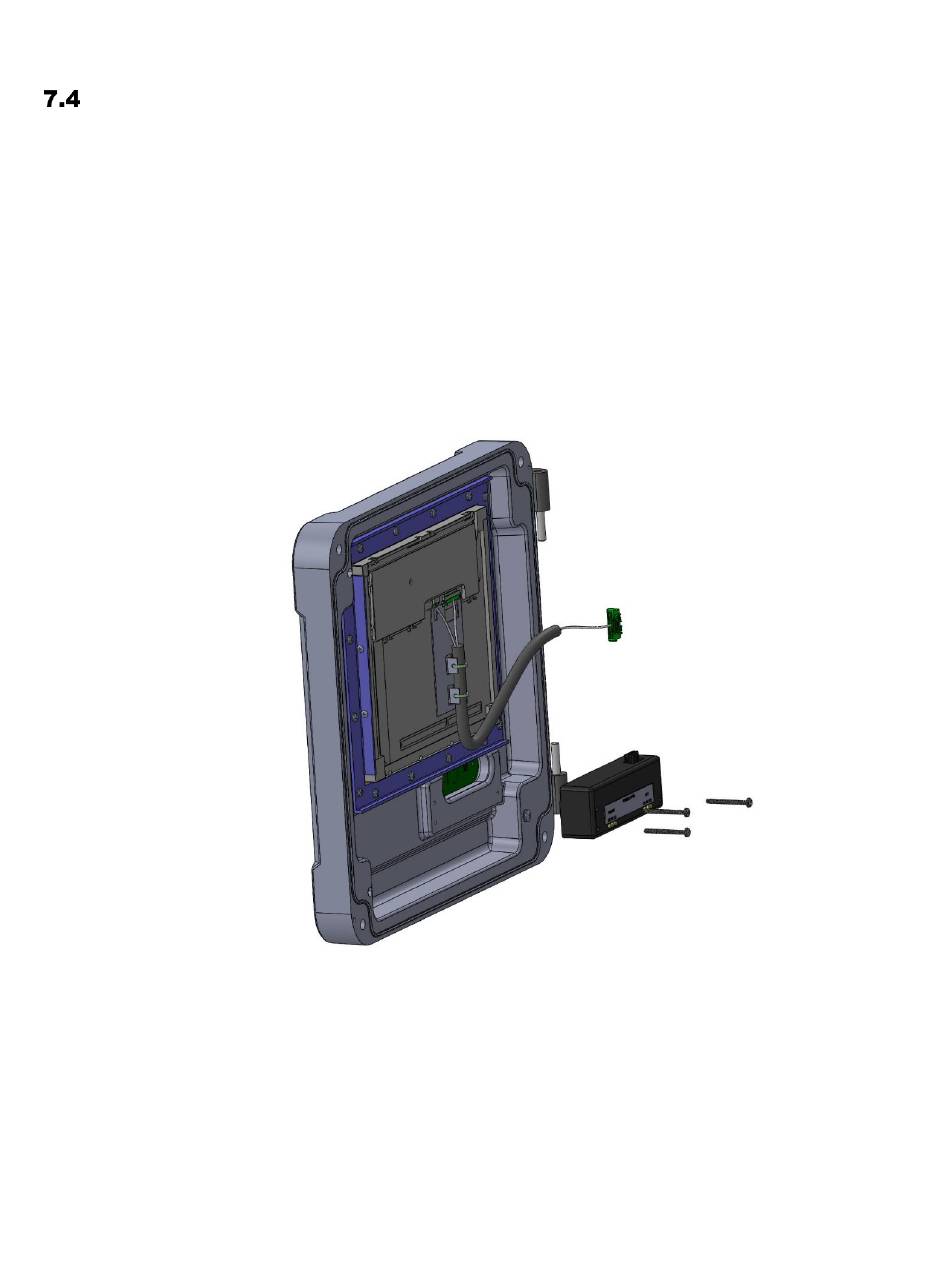

Figure 7.5
Removal of Keypad Barrier
