CHAPTER 7– SERVICE AND REPAIR
Installation:
1. Position the new display assembly in the mounting bracket.
2. Align the 4 mounting holes and insert the 4 display mounting screws.
3. Reinstall the mounting bracket with the display assembly into the cover.
Note: do not tighten screws until all screws have been installed.
4. Carefully reconnect the display cable the CPU board.

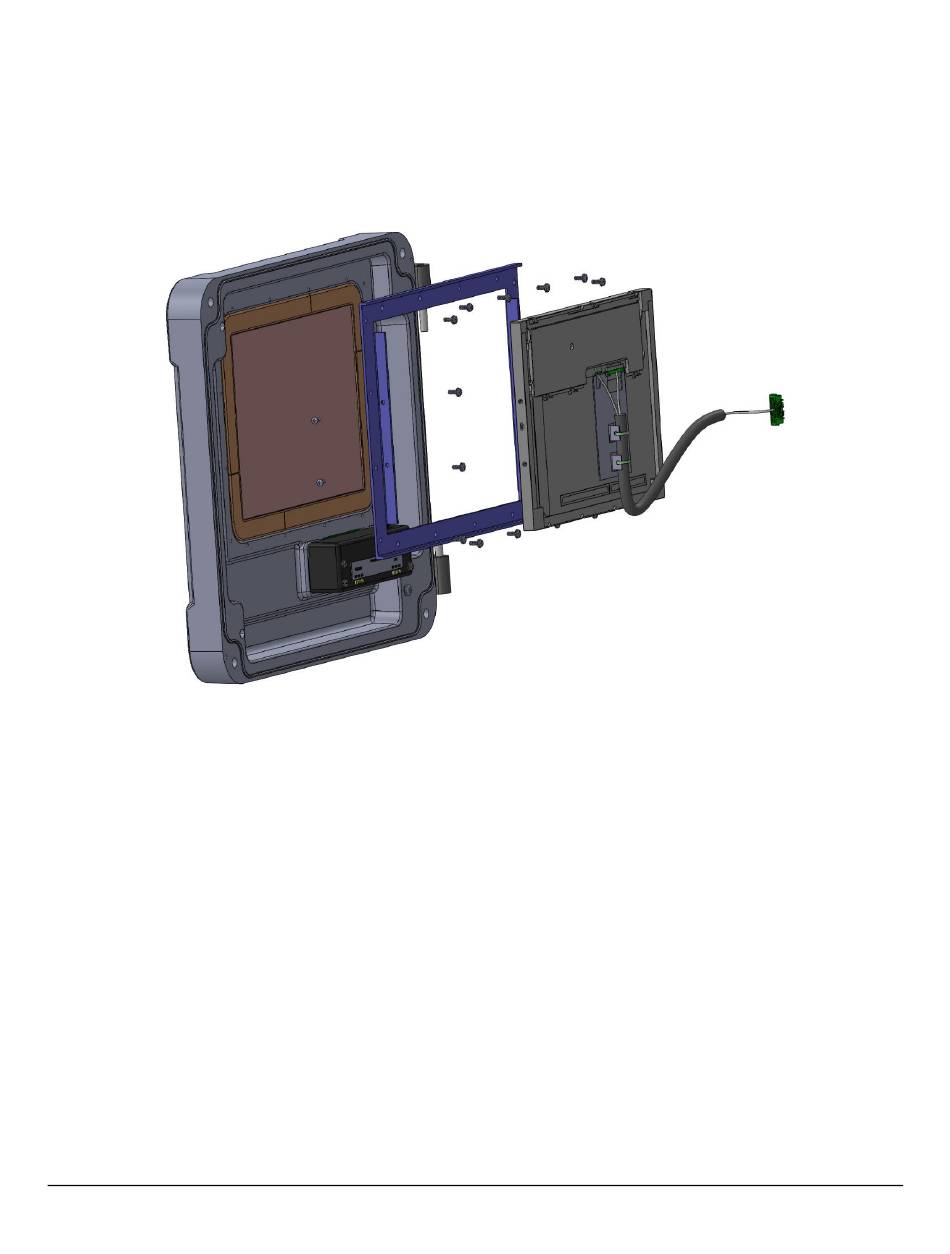

Figure 7.4
50
Display Assembly removed from the Mounting Bracket
MultiLoad III/RCU III DIV2 Hardware Installation Guide - Part # 6074
