CHAPTER 7– SERVICE AND REPAIR
Mounting Feet Installation
Mounting Foot Installation
1. The MultiLoad III DIV2 Hardware mounting feet are not preassembled.
2. Align the mounting feet with the predrilled and tapped holes.
3. Using a #2 Philips screwdriver and provide screws install the mounting feet.
57

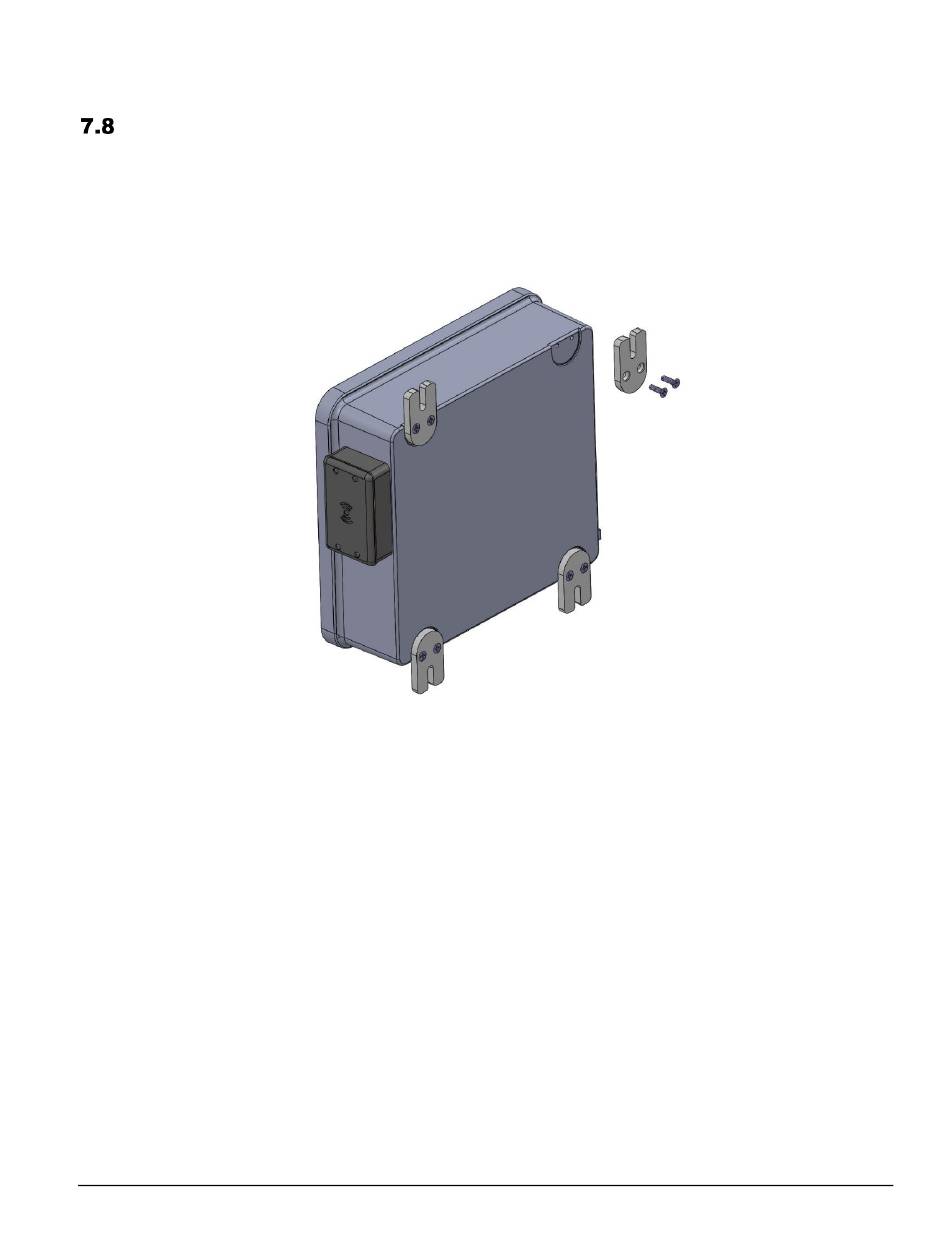

Figure 7.9
Mounting Feet Assembly
MultiLoad III/RCU III DIV2 Hardware Installation Guide - Part # 6074
