CHAPTER 4– DATA COMMUNICATIONS INTERFACE

Communication Connection Wiring

This section describes the wiring connections for each of the communication ports to function for a
specifc communication protocol.
Ethernet – Host/TMS Communications
The Host/TMS Computer System can be connected to the MultiLoad III/RCU III DIV2 Hardware
using Ethernet.
The Ethernet Ports use HP Auto-MDIX technology. By automatically detecting the signaling on the
connected device, the transceiver will configure the port direction automatically. Thus, the choice
of a straight through or cross over cable no longer must be made—either will work.
26
Twisted Pairs
1 White/org
2 Org
3 White/Grn
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown

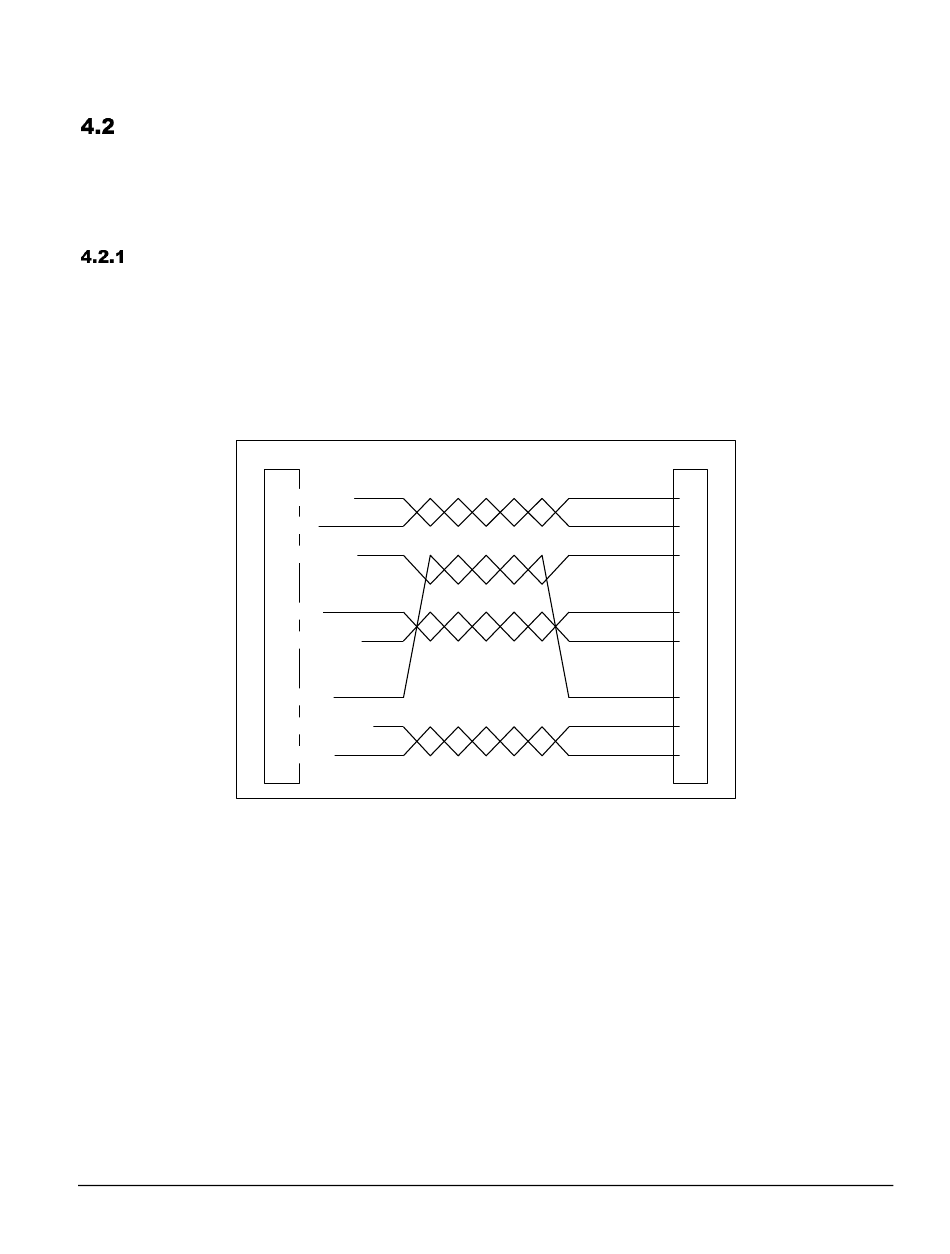

Figure 4.2 Ethernet Connections
MultiLoad III/RCU III DIV2 Hardware Installation Guide - Part # 6074
