CHAPTER 6– CONFIGURATIONS
Do not use a wrench to tighten the bolt. Screw in and out the bolt by hand only. Over-torqueing
the bolt will damage the assembly
Field Switch Access Control
The MultiLoad III DIV2 Hardware also can a accept field input for the W&M access. Review the
"MultiLoad II/II+ Firmware User Guide" for more information.
Keypad
The MultiLoad III/RCU III DIV2 Hardware keypad has 55 keys, including alpha, numeric, and function
keys, which are used to:
-
Select menu items and fields
-
Enter data in fields
-
Initiate actions
-
Return to previous screens
Numeric keys (1 through 9 and 0) are used to enter numeric data. Alpha keys are used to enter text.
The CLR key is used to clear data entered in error; this is a backspace key erasing characters as the
cursor moves backwards.
35

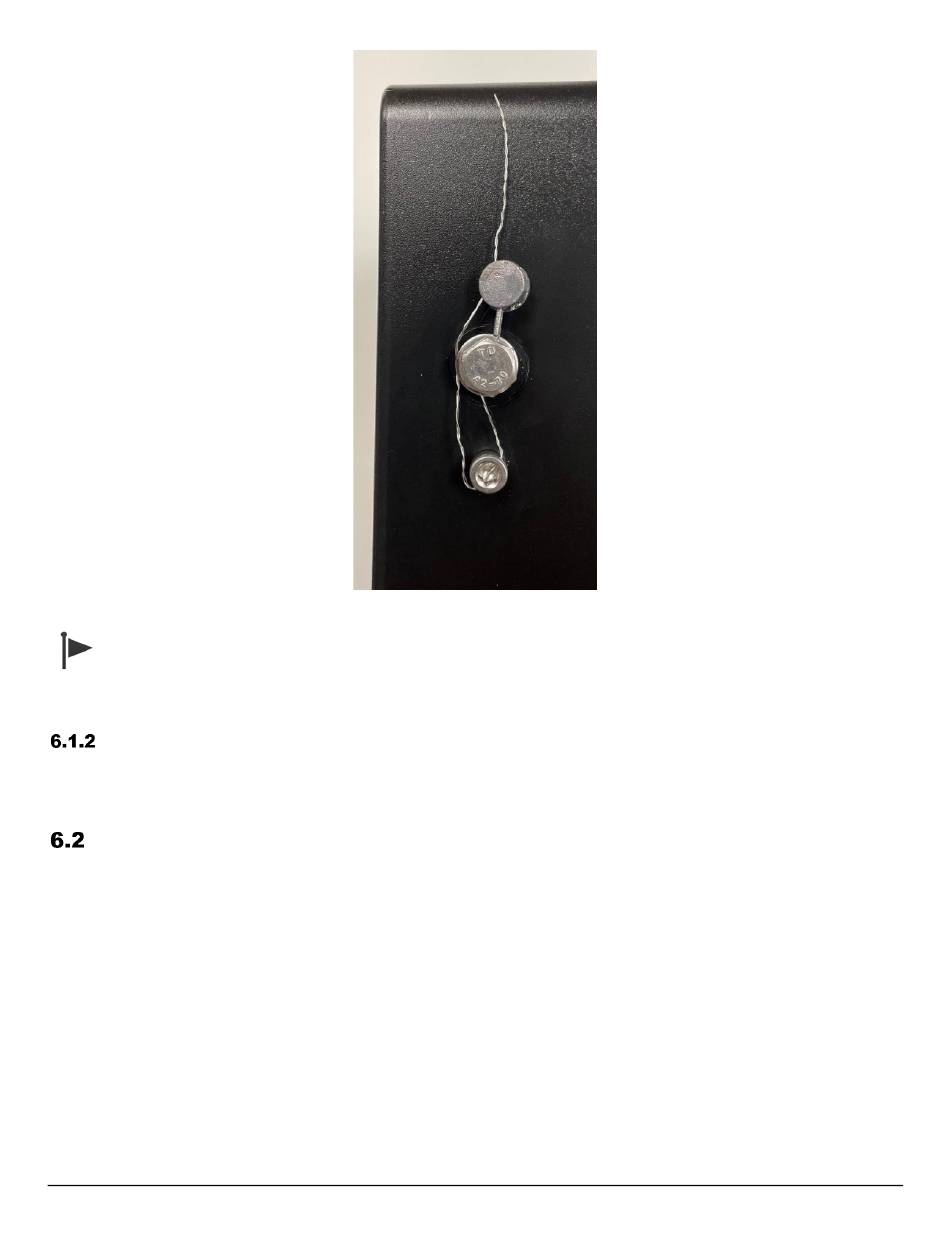

Figure 6.1
.
MultiLoad III/RCU III DIV2 Hardware Installation Guide - Part # 6074
W&M Bolt Switch
