CHAPTER 7– SERVICE AND REPAIR
Mounting Feet Installation
Mounting Foot Installation
1. The MultiLoad III EX Hardware mounting feet are not preassembled.
2. Align the mounting feet with the predrilled and tapped holes.
3. Using a #2 Philips screwdriver and provide screws install the mounting feet.
62
MultiLoad III/RCU III Hardware - Explosion Proof (EX) Installation Guide

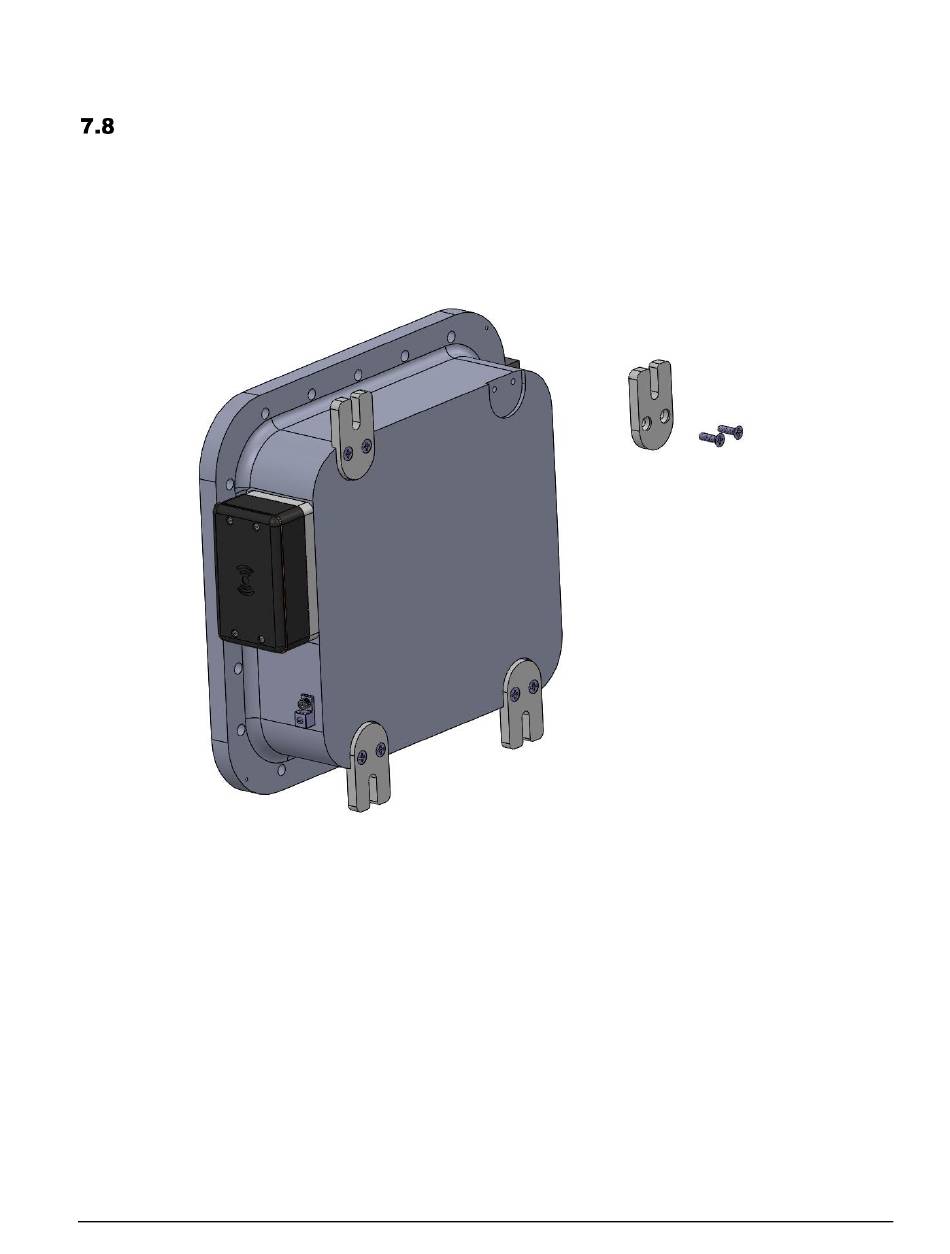

Figure 7.9
Mounting Feet Assembly
